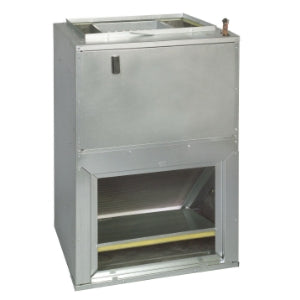

Goodman AWSF30LU1610 Air Handler 2.5 Ton Wall Mount 10 kW

Product Description

The Goodman AWSF30LU1610 is a wall-mounted air handler designed for efficient indoor climate control. It operates at two and a half tons capacity and includes a multi-speed ECM motor for precise air movement. This air handler significantly reduces indoor humidity, enhancing comfort in homes. It features durable all-aluminum evaporator coils and comes with a check flowrator for optimized performance.

• Multi-speed ECM motor for efficient air movement
• Easy vertical installation with provided wall bracket
• Includes built-in filter rack for cleaner air

Product Highlights

The Goodman AWSF30LU1610 air handler includes an electric heat capacity of ten kilowatts for effective heating. The unit is designed with a thermoplastic drain pan that allows both primary and secondary drain connections, ensuring effective moisture management.

Product Information

Standard Information

• Type: Air Handler
• Mount Type: Wall Mounted

Technical Specifications

• Cooling Capacity: 30000 BTU
• Electric Heat Capacity: 10.0 kW
• Dimensions: 21 inches (depth) x 24 inches (width) x 36 inches (height)
• Weight: 109 pounds
• Electrical Data: 208/230 Volts, Single Phase
• Maximum Air Flow: 1168 CFM
• Minimum Air Flow: 683 CFM
• Refrigerant Type: R-410A
• Warranty: 10 years limited parts warranty
