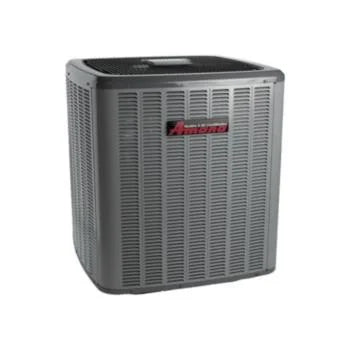

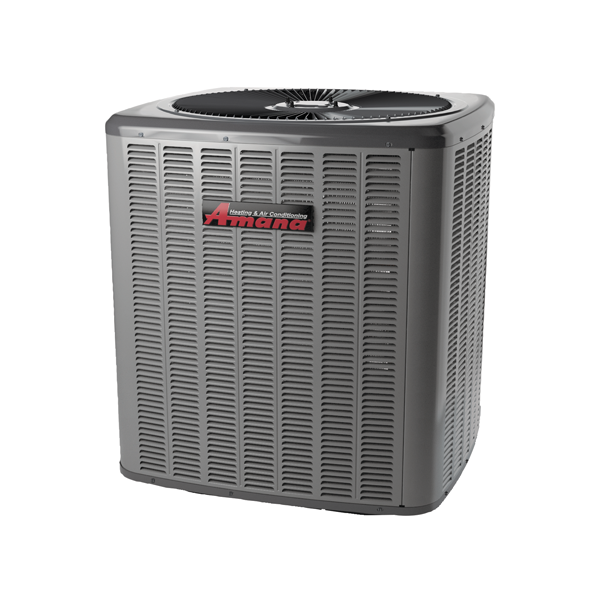

Goodman AVZC180241 Amana Split Heat Pump 2 Ton 18 SEER

Product Description

The GOODMAN AVZC180241 Amana AVZC18 is a split heat pump with an 18 SEER rating and a 2-ton capacity. It features variable-speed swing and scroll compressors and a high-efficiency variable-speed ECM condenser fan motor. The unit is also equipped with factory-installed components such as a filter drier, suction line accumulator, and compressor crankcase heater.

• Features variable-speed swing and scroll compressors
• Equipped with a high-efficiency variable speed ECM condenser fan motor
• Includes SmartShift technology with short-cycle protection

Product Highlights

This split heat pump offers efficient and reliable performance with its advanced features and durable construction. Ideal for residential heating and cooling.

Product Information

Standard Information

• Brand: GOODMAN
• Manufacturer Part Number: AVZC180241

Technical Specifications

• Manufacturer Part Number: AVZC180241
• Compressor Stages: Variable
• Compressor Type: Swing
• Unit Depth: 35-3/4 in
• Unit Height: 36-1/4 in
• Unit Width: 35-3/4 in
• Efficiency: 18 SEER
• Family: AVZC18
• Max. Voltage: 253 V
• Min. Circuit: 13.6 A
• Min. Voltage: 197 V
• Model Efficiency: 18 SEER
• Power Frequency: 60 Hz
• Power Phase: 1 Ph
• Power Voltage: 208/230 V
• Prop65 Label Required: TRUE
• Refrigerant: R-410A
• Tonnage: 2 tons
• Unit Type: Outdoor
• Liquid Valve Outside Diameter: 3/8 in
• Suction Valve Outside Diameter: 3/4 in
