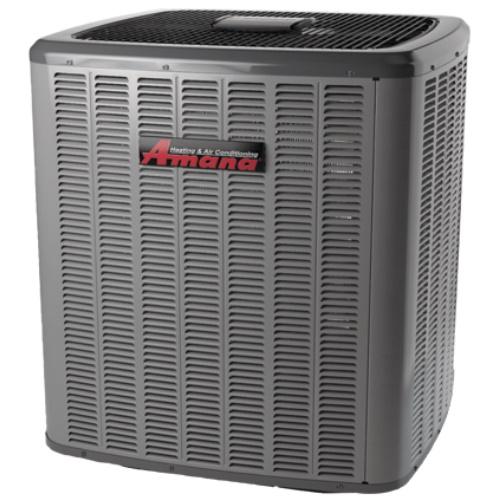

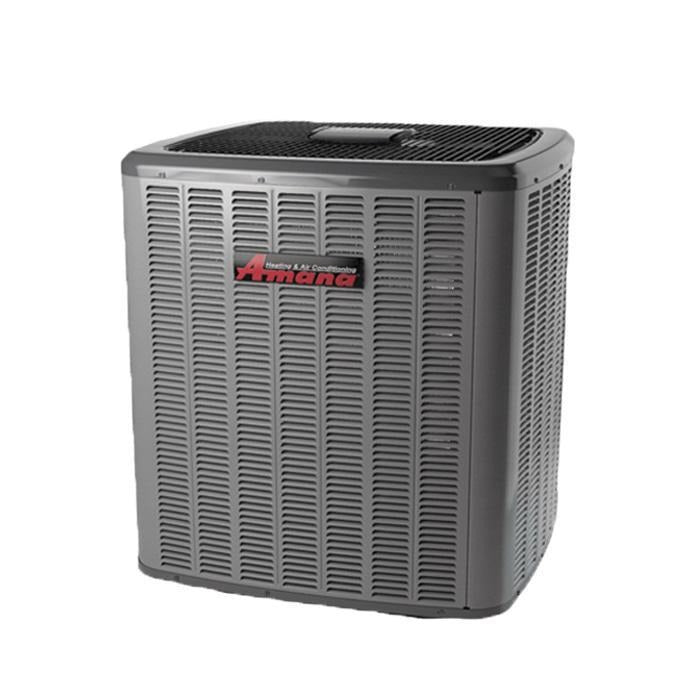

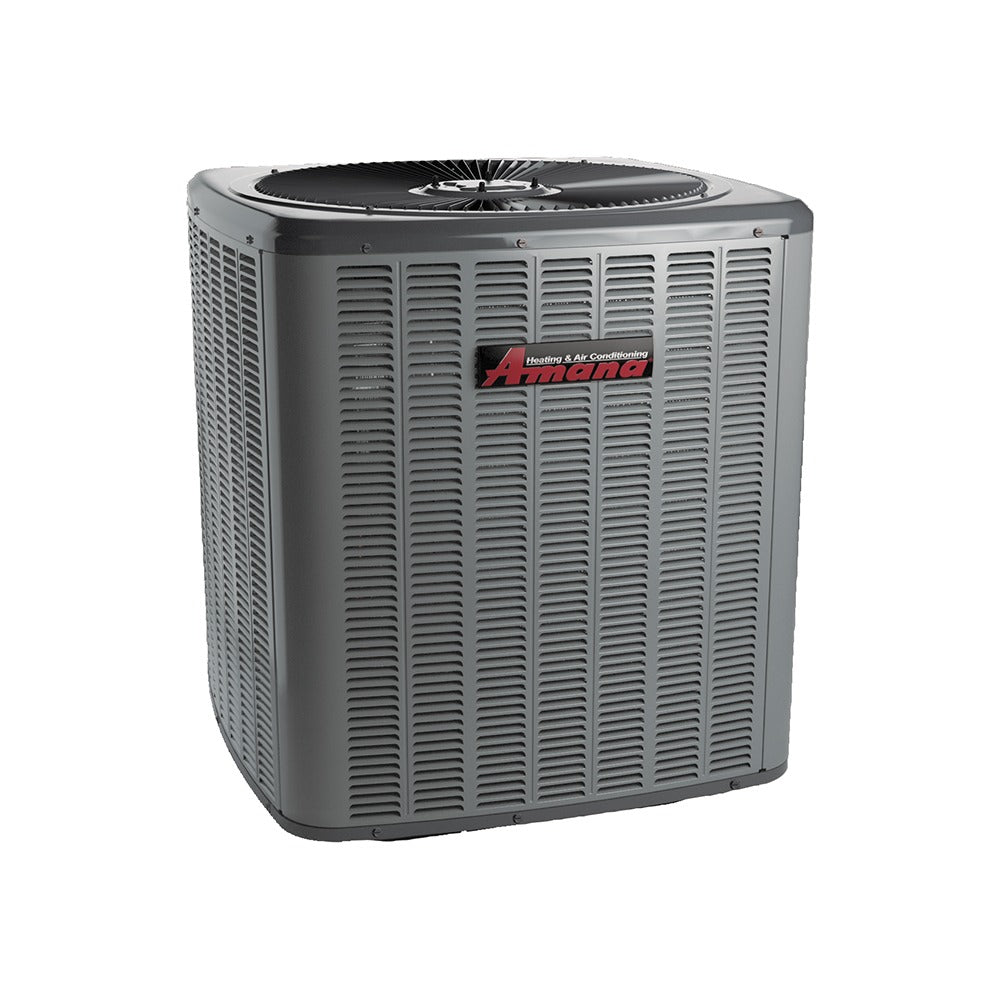

Amana AVXC200361 Split Air Conditioner 20 SEER Inverter 3 Ton (Goodman AVXC200361)

Brand: AMANA
SKU: AVXC200361
Availability: In Stock

Ships via freight in 1-3 business days
$5,570.04
$5,570.04
LTL Delivery

This product weighs 221 lb each and will be shipped via LTL carrier. A lift gate option will be added free of charge for your convenience.

HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The Amana AVXC200361 is a 3-ton outdoor split air conditioner with a 20 SEER inverter-driven variable-speed swing compressor. It delivers 34,200 Btu/h rated cooling, uses R-410A refrigerant, and includes a variable-speed ECM condenser fan motor, factory-installed filter drier, and high/low-pressure protection. The unit is factory-charged for 15 ft of tubing and supports ComfortBridge communicating controls with Bluetooth commissioning via the CoolCloud app. AHRI certified and ETL listed.

  • Inverter-driven variable-speed swing compressor and variable-speed ECM condenser fan motor
  • Rated cooling 34,200 Btu/h (3 ton); 20 SEER; refrigerant R-410A; factory charge for 15 ft line set
  • Factory-installed filter drier, high/low-pressure switches, compressor sound blanket, and ComfortBridge communication with Bluetooth commissioning

Product Highlights

3-ton 20 SEER outdoor inverter split AC with variable-speed swing compressor, R-410A refrigerant, ComfortBridge communication and factory 15 ft refrigerant charge

Product Information

Standard Information

  • Brand: AMANA
  • Manufacturer Part Number: AVXC200361
  • Country of Origin: USA
Technical Specifications
Brand
Amana
MPN
AVXC200361
Product Family
AVXC20
Product Class
Split Air Conditioner
Unit Type
Outdoor
Tonnage
3 ton
Cooling Capacity (Rated)
34,200 Btu/h
Cooling Capacity (Max)
36,500 Btu/h
SEER
20 SEER
Model Efficiency (HSVTC)
20.5 SEER (family noted)
Compressor Type
Swing
Compressor Stages
Inverter (variable-speed)
Motor Type
Variable-speed ECM condenser fan motor
Refrigerant Type
R-410A
Factory Refrigerant Charge
Factory charged for 15 ft line set
Refrigerant Standard Charge (oz)
154 oz
Refrigerant Additional Charge
0.6 lb/ft
Expansion Device
TXV
Airflow Rate High (cfm)
1170
Airflow Rate Low (cfm)
820
Input Voltage
208/230 V
Power Phase
1
Power Frequency
60 Hz
Min Voltage
197 V
Max Voltage
253 V
Min Circuit Amps
20.6 A
Max Overcurrent Protection
25 A
Rated Load Amps
18.1 A
Sound Pressure (High)
74 dBA
Sound Pressure (Medium)
66 dBA
Sound Pressure (Low)
63 dBA
Valve Size Liquid (O.D.)
3/8 in
Valve Size Suction (O.D.)
7/8 in
Connection Type
Sweat service valves with gauge ports
Dimensions (Width)
35-1/2 in
Dimensions (Height)
38-1/4 in
Dimensions (Depth)
35-1/2 in
Unit Weight
221 lb
Cabinet Material/Finish
Heavy-gauge galvanized steel cabinet, baked-on powder-paint finish
Sound Control
High-density foam compressor sound blanket; engineered sound control top
Communication
ComfortBridge communicating technology; Bluetooth commissioning via CoolCloud app
Factory Features
Factory-installed filter drier; factory high/low pressure switches and sensors
Certifications
AHRI certified; ETL listed; ENERGY STAR (referenced)
Country of Origin
United States
