Goodman ASXH502410 Air Conditioner + Coil System 2.0 Ton 17.5 inches Coil Width

Product Description

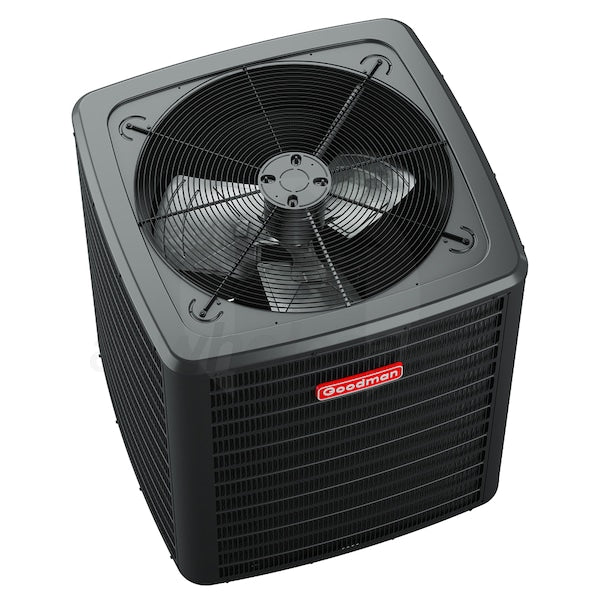

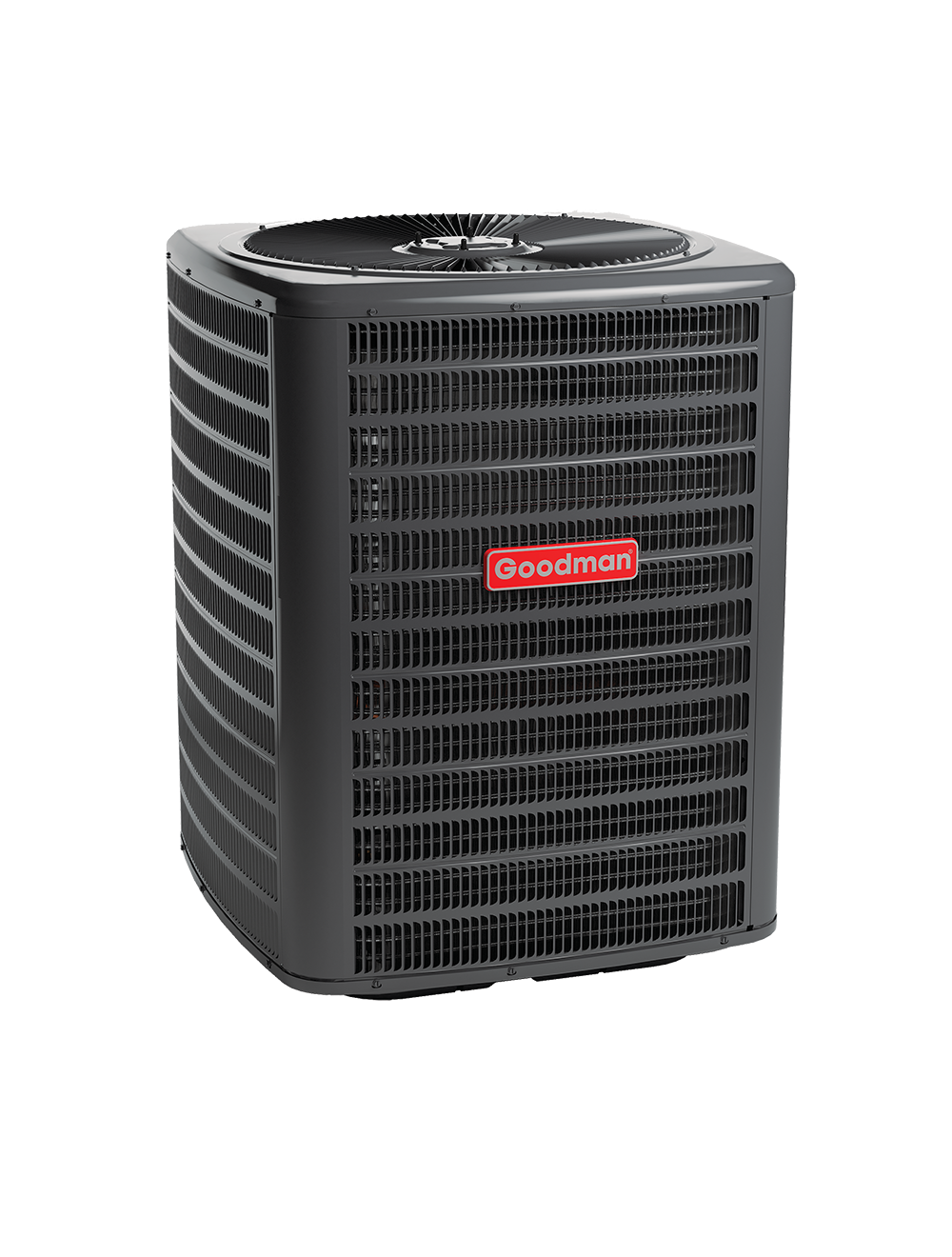

The Goodman ASXH502410 air conditioner and coil system includes an outdoor condenser and evaporator coil. The GSXH5 air conditioner features an advanced condenser coil design. The CAPFA3022B6 evaporator coil fits directly onto your existing 17.5" furnace or air handler cabinet. The GSXH5's galvanized steel construction paired with the all-aluminum evaporator coil design ensures lasting cooling.

• High Efficiency Scroll Compressor
• Factory-Installed Filter Drier
• Copper Tube/Enhanced Aluminum Fin Coil

Product Highlights

This Goodman air conditioner and coil system provides efficient and reliable cooling for your home.

Product Information

Standard Information

• Brand: GOODMAN
• Manufacturer Part Number: ASXH502410

Technical Specifications

• Product Category: Air Conditioner & Coil Package
• Operating Mode: Cooling
• Coil Width: 17.5 Inches
• Configuration: Upflow/Downflow
• Compressor Stages: Single Stage
• DOE Regional Compliance: Nationwide
• Capacity: 2.0 Tons
• Cooling Capacity: 24000 BTUH
• Nominal Cooling Capacity: 24000 BTU
• SEER2: 14.3
• EER2: 11.7
• ETL Listed: Yes
• AHRI Certified: Yes
• AHRI Reference Number: 208680584
• Type: Condenser
• Product Line: GSXH5
• Refrigerant Type: R-410A
• Installation Location: Outdoor
• Cooling BTU: 24000
• Maximum Sound Level: 73 dB
• Voltage: 208/230 Volts
• Phase: 1
• Frequency: 60 Hz
• Minimum Circuit Ampacity: 15.3 Amps
• Recommended Breaker Size: 25 Amps
• Suction Connection Size: 3/4 Inch
• Liquid Connection Size: 3/8 Inch
• Product Height: 32 Inches
• Product Width: 29 Inches
• Product Depth: 29 Inches
• Energy Star Listed: Yes
• ISO Certified: Yes
• Casing: Cased
• Style: A Coil
• TXV Installed: No
• Cabinet Width: 17 1/2 Inches
• Product Height (Coil): 22 Inches
• Product Width (Coil): 17 1/2 Inches
• Product Depth (Coil): 21 Inches
• Model #: GSXH502410
• Suction Line Size: 3/4 inch
• Voltage Rating: 208/230V
• Frequency Rating: 60 Hz
• Liquid Line Size: 3/8 inch
• Sound Rating: 73dBA
• Unit Type: Scroll
• Maximum Overcurrent Protection: 25
• Series: GSXH5
