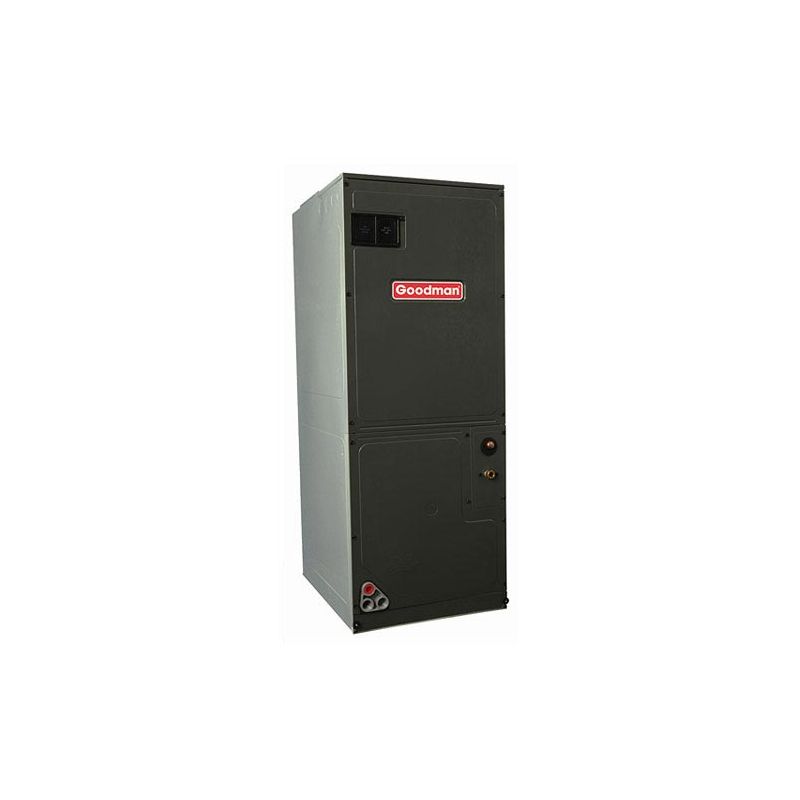

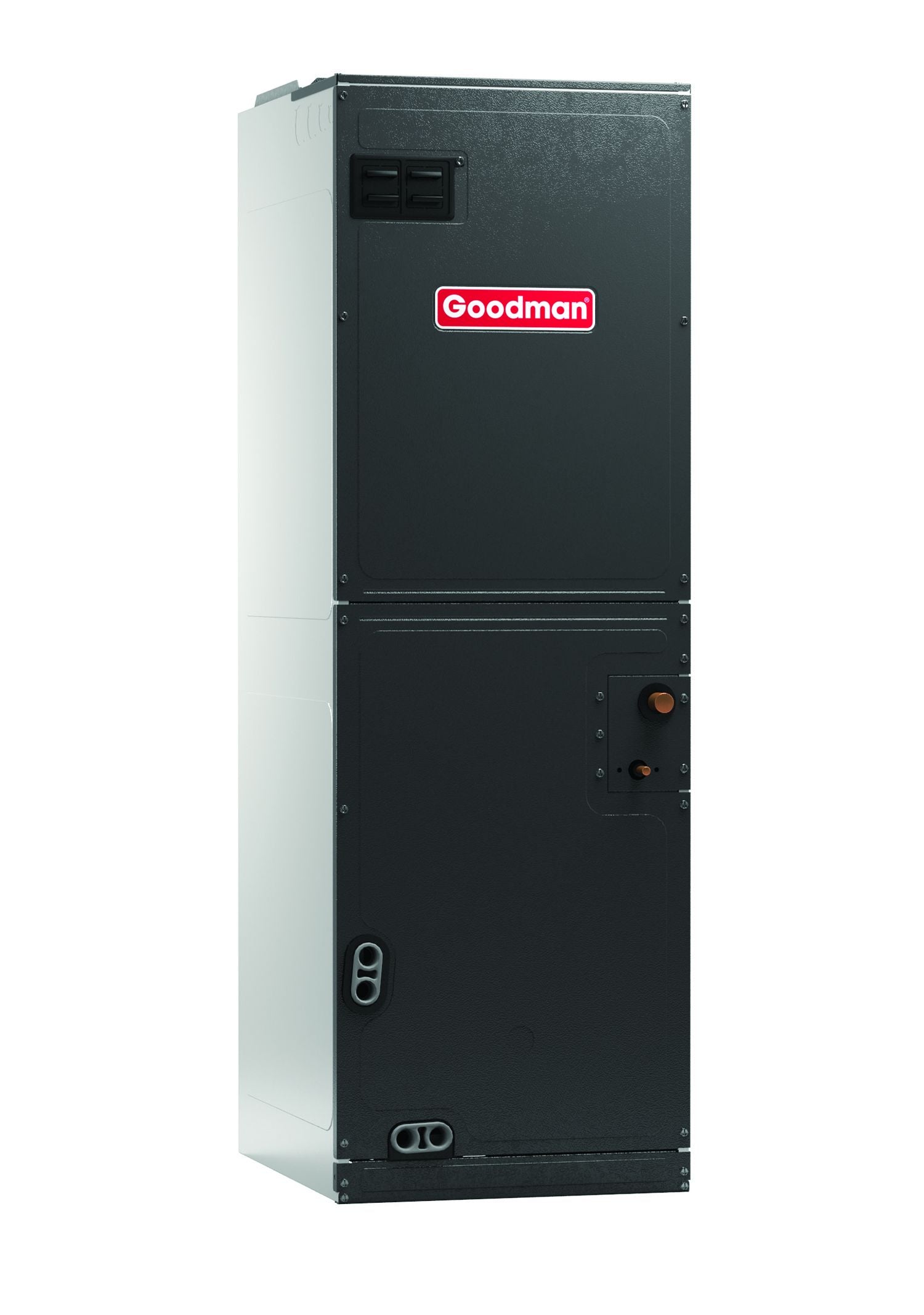

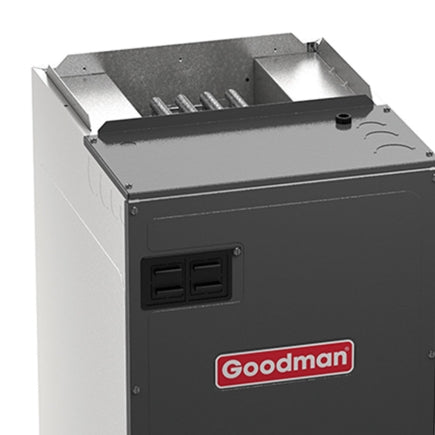

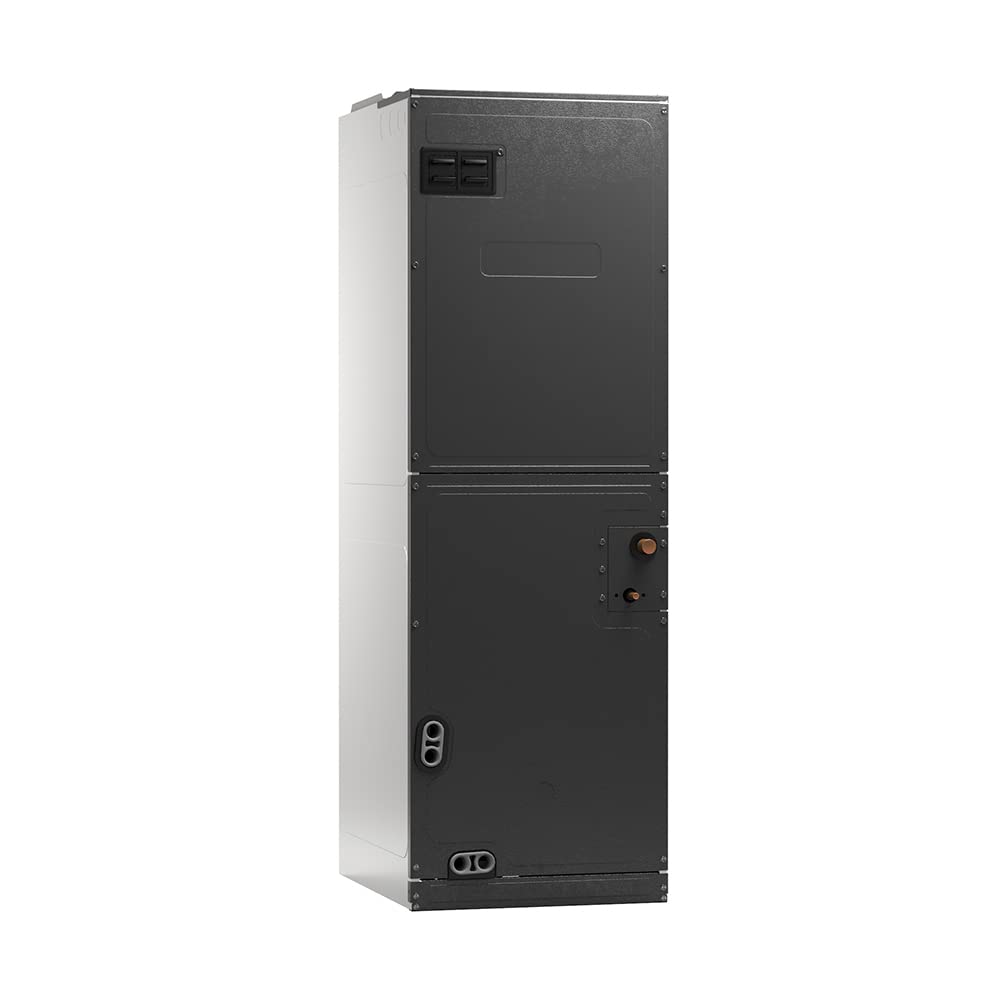

Goodman ASPT60D14 Air Handler 5 Ton

Product Description

The Goodman ASPT60D14 air handler features an efficient, energy-saving EEM motor and a durable cabinet. Designed with multiple features for easy installation, this 5 ton air handler provides enhanced comfort. It is multi-positional for upflow, downflow, or horizontal installation. The heavy-gauge cabinet structure and all-aluminum evaporator ensure reliability.

• Efficient, energy-saving EEM motor
• Durable cabinet with SmartFrame technology
• Multi-positional (upflow, downflow, or horizontal)

Product Highlights

The Goodman ASPT60D14 air handler offers efficient temperature control and easy installation for versatile applications.

Product Information

Standard Information

• Brand: GOODMAN
• Manufacturer Part Number: ASPT60D14
• Country of Origin: USA

Technical Specifications

• Brand: Goodman
• MPN: ASPT60D14
• UPC: 663051493315
• Blower Motor: Multi Speed - EEM
• Maximum CFM: 2,225
• Electric Backup Heat Capabilities (Optional): 5 Kilowatts, 8 Kilowatts, 10 Kilowatts, 15 Kilowatts, 20 Kilowatts
• Refrigerant: R410A
• Filter Size: 23" x 20"
• Liquid Line: 3/8"
• Suction Line: 7/8"
• Electrical: 208/240 V, 1 Phase, 60 Hz
• Max Breaker Size: 15 amps
• Tonnage: 5 Ton
• Fuel Type: Electric
• Air Flow Direction: Downflow
• Cooling Capacity: 5 Ton
• Electrical Phase: 1-Phase
• Heat Strip Compatibility: Up to 25 kW
• Line Set Connection Type: Sweat
• Liquid Line Size: 3/8 inch
• Max Overcurrent Protection: 15 amps
• Suction Line Size: 7/8 inch
• System Application Type: Central Split Systems
• Voltage: 240
• BTU Cooling Rating: 60000
• Horsepower: 1 hp
• Installation Type: Ducted Multi-position
• Power Source: Electric
• Style Name: ASPT Series
• Fan Speeds: Fixed Speed ECM
• Indoor/Outdoor: Indoor
• Material: Aluminum;Painted Galvanized Steel
• Phase: Single Phase
• Refrigerant Type: R410A
