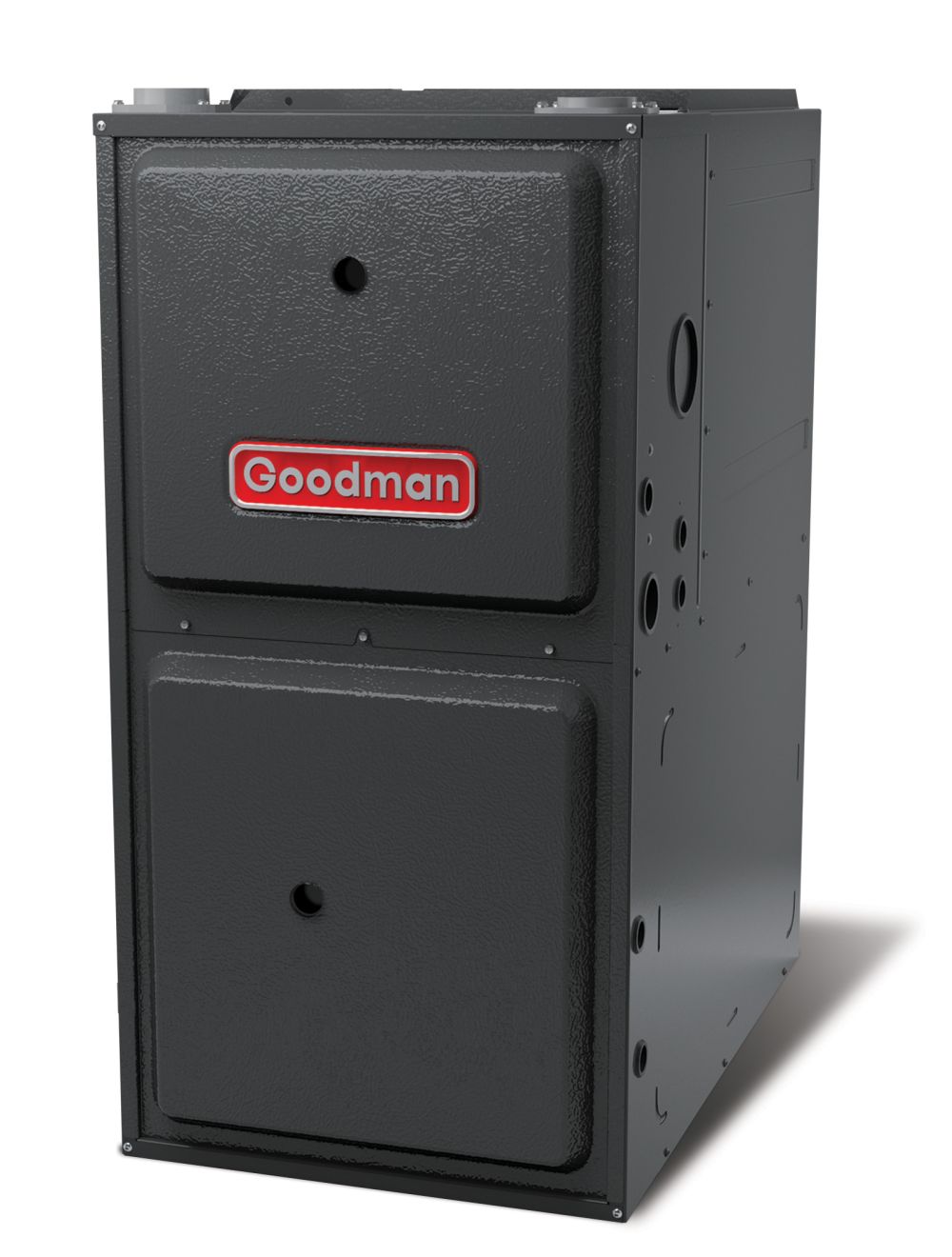

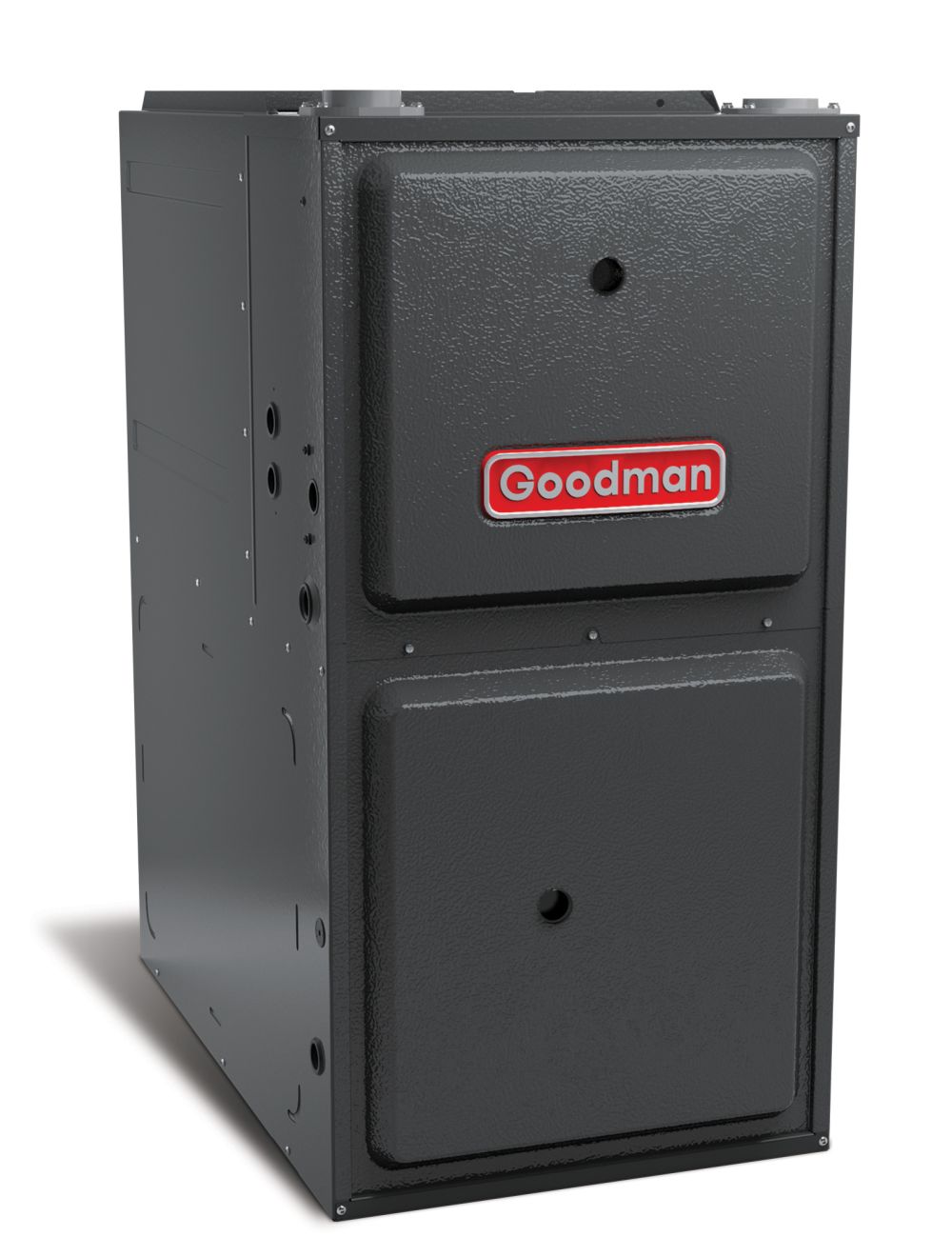

Goodman arvt961005cn 96 Afue Gas Furnace 100000 Btu/h

Product Description

The GOODMAN arvt961005cn is a 96 AFUE two-stage, variable-speed ECM gas furnace designed for upflow and horizontal installation in residential and light-commercial forced-air heating systems. Rated at 100,000 BTU/h high-fire input with a measured output of 96,100 BTU/h, it delivers efficient heat transfer through a gas heat exchanger with minimal standby losses. The ECM blower motor runs at up to 1,200 RPM with a variable-speed drive, reaching a maximum airflow of 1,780 cubic feet per minute in heating mode. The two-stage gas valve allows the unit to operate at 70,000 BTU/h low-fire input for reduced cycling and improved comfort. Licensed HVAC technicians perform installation and startup.

This furnace is configured for upflow or horizontal orientation, making it suitable for basement, closet, and attic installations where duct routing requires either vertical or horizontal discharge. The non-NOx burner configuration and ANSI certification support installation in jurisdictions with air-quality requirements. With a nominal cooling coil capacity of 60,000 BTU/h and a 5-ton tonnage rating, the unit is paired with a matching split-system cooling coil for year-round comfort. The communication-capable board supports integration with compatible thermostats and control systems. Single-phase, 115-volt, 60 Hz power feeds the unit, with a minimum circuit ampacity of 13.8 amps and a maximum overcurrent protection of 20 amps.

Key Features

• 96 AFUE two-stage operation: 100,000 BTU/h high fire and 70,000 BTU/h low fire for modulated heating output
• Variable-speed ECM blower motor at up to 1,200 RPM delivers 1,780 CFM high and 1,245 CFM low in heating mode
• Non-NOx burner design with 5 burners supports low-emission installation requirements
• ANSI certified and ETL Listed for verified safety and performance compliance
• Communication-capable control board compatible with supported thermostat and zoning systems
• Upflow/horizontal configuration with 2-inch and 3-inch vent diameter options for flexible venting
• Manufactured in the United States

Compatibility

Designed as an OEM upflow/horizontal gas furnace for residential and light-commercial forced-air systems requiring a 96 AFUE, two-stage, variable-speed unit at 100,000 BTU/h input capacity with a nominal 5-ton cooling coil match.

Installation Notes

Installation must be performed by a licensed HVAC technician in accordance with local mechanical codes, the International Fuel Gas Code, and the manufacturer installation instructions. Disconnect and lock out all electrical power and shut off the gas supply at the service valve before any service work. Maintain the minimum clearance to combustible materials as specified and verify vent sizing against the selected 2-inch or 3-inch vent diameter before connecting to the flue system. Do not operate the unit before verifying gas pressure, electrical connections, and filter installation are complete.

Technical Specifications

• AFUE: 96
• High-Fire Input Capacity: 100,000 BTU/h
• High-Fire Output Capacity: 96,100 BTU/h
• Low-Fire Input Capacity: 70,000 BTU/h
• Low-Fire Output Capacity: 67,270 BTU/h
• Nominal Cooling Capacity: 60,000 BTU/h (5 tons)
• Gas Valve Type: Two Stage
• Motor Speed Type: Variable Speed ECM
• Blower Motor Horsepower: 1 metric hp
• Blower Motor RPM: 1,200 RPM
• Blower Diameter: 11 inches
• Blower Width: 10 inches
• Airflow Rate High - Heating: 1,780 CFM
• Airflow Rate Low - Heating: 1,245 CFM
• Number of Burners: 5
• NOx Burner Type: Non-NOx
• Temperature Rise Range High Fire: 35-65 degrees F
• Temperature Rise Range Low Fire: 35-65 degrees F
• Power Voltage: 115 volts AC
• Power Phase: Single Phase
• Power Frequency: 60 Hz
• Minimum Circuit Amps: 13.8 amps
• Max Overcurrent Protection: 20 amps
• External Static Pressure Rated: 0.5 inches W.C.
• Vent Diameter: 2 inches; 3 inches
• Installation Configuration: Upflow/Horizontal
• Unit Height: 34.5 inches
• Unit Width: 21 inches
• Unit Depth: 28.875 inches
• Filter Quantity: 1
• Filter Size Minimum: 20x25 inches
• Heat Exchanger Type: Gas
• Unit Weight: 129 pounds
• Communication Feature: Yes
• Current Type: AC
• ANSI Certified: Yes
• ETL Listed: Yes
• Country of Origin: United States
• Registered Parts Warranty - Residential: All Parts 10 Years; Heat Exchanger 79 Years
• Registered Parts Warranty - Commercial: All Parts 5 Years; Heat Exchanger 20 Years
• Standard Parts Warranty - Residential: All Parts 5 Years; Heat Exchanger 20 Years

Standard Information

• Brand: GOODMAN
• Manufacturer Part Number: arvt961005cn
