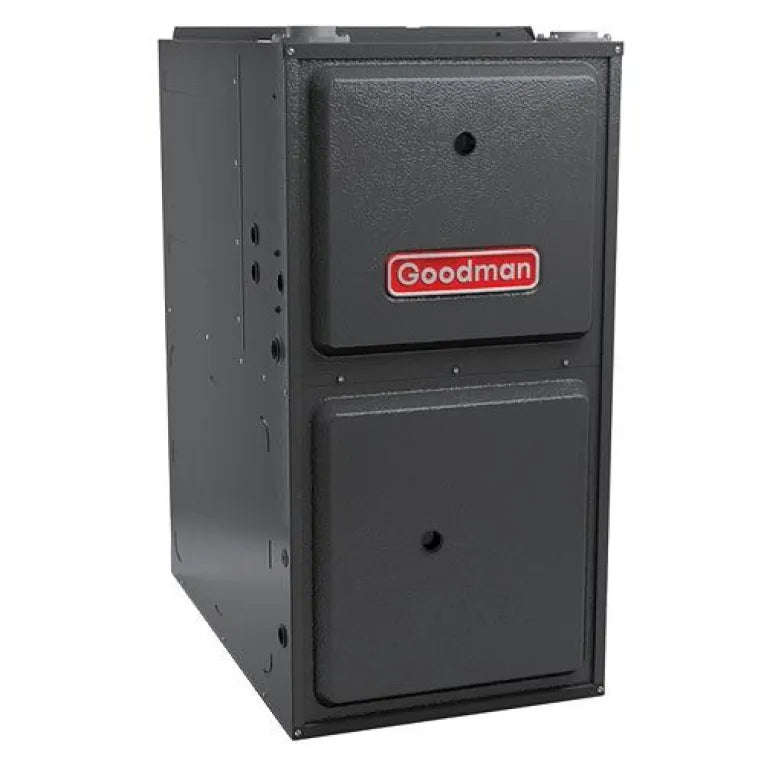

Goodman arvt960804cn 80000 Btu/h 96 Afue Gas Furnace

Product Description

The GOODMAN arvt960804cn is a 96 AFUE two-stage gas furnace with a variable speed ECM blower motor, designed for upflow and horizontal installations in residential and light-commercial forced-air heating systems. Operating at 80,000 BTU/h on high fire and stepping down to 56,000 BTU/h on low fire, it delivers responsive, efficient comfort across a wide range of heating loads. The ECM motor runs at up to 1,200 RPM and moves up to 1,760 ft cubed per minute of conditioned air. A Non-NOx burner design and ANSI-certified heat exchanger make this unit suitable for installations in air-quality-regulated regions. Licensed HVAC technicians handle installation and startup.

The arvt960804cn fits upflow and horizontal duct configurations, making it adaptable to closet, utility-room, or attic installs. The unit supports up to 4 tons of matched cooling capacity, integrates with communicating system controls, and uses a two-stage gas valve for quieter low-fire operation during mild weather. Four burners share a gas heat exchanger sized for consistent temperature rise. Temperature rise range is 25-55 degrees F on high fire and 20-50 degrees F on low fire. Single-phase, 115-volt, 60 Hz power is required, with a minimum circuit ampacity of 10.8 amps and a maximum overcurrent protection of 15 amps.

Key Features

• 96 AFUE efficiency with two-stage gas valve for reduced fuel consumption at partial load
• Variable speed ECM blower motor rated at 1,200 RPM for quiet, consistent airflow
• High-fire output of 77,600 BTU/h and low-fire output of 54,320 BTU/h
• Non-NOx burner configuration for compliance in low-emissions jurisdictions
• Communicating-system compatible for integration with matched thermostats and air handlers
• ETL Listed and ANSI Certified heat exchanger
• Supports upflow and horizontal duct orientations in a single cabinet

Compatibility

Designed for upflow and horizontal forced-air system installations with a nominal cooling match of up to 48,000 BTU/h (4 tons). Compatible with communicating system controls. Specific matched-component compatibility should be confirmed against the manufacturer current product bulletin before ordering.

Installation Notes

Installation must be performed by a licensed HVAC technician in accordance with the manufacturer instructions, local mechanical codes, and the International Fuel Gas Code (IFGC). Shut off gas supply and disconnect electrical power before any service or replacement work. Vent connections accept 2-inch or 3-inch diameter pipe; verify venting configuration against local code and the furnace installation manual before cutting or connecting vent runs. Minimum clearance to combustible materials must be maintained as specified on the unit rating label and in the installation documentation.

Technical Specifications

• AFUE: 96
• High-Fire Input Capacity: 80,000 BTU/h
• High-Fire Output Capacity: 77,600 BTU/h
• Low-Fire Input Capacity: 56,000 BTU/h
• Low-Fire Output Capacity: 54,320 BTU/h
• Nominal Cooling Capacity: 48,000 BTU/h (4 tons)
• Power Voltage: 115 volts AC, 1-phase, 60 Hz
• Minimum Circuit Amps: 10.8 amps
• Max Overcurrent Protection: 15 amps
• Blower Motor Speed: Variable Speed ECM, 1,200 RPM max
• Blower Motor Horsepower: 3/4 hp
• Airflow Rate High Fire: 1,760 ft cubed per minute
• Airflow Rate Low Fire: 1,245 ft cubed per minute
• Temperature Rise Range High Fire: 25-55 degrees F
• Temperature Rise Range Low Fire: 20-50 degrees F
• External Static Pressure Rated: 0.5 inches water column
• Gas Valve Type: Two Stage
• Number of Burners: 4
• Burner Type: Non-NOx
• Installation Configuration: Upflow / Horizontal
• Vent Diameter: 2 inches or 3 inches
• Blower Diameter: 11 inches
• Blower Width: 10 inches
• Unit Height: 34.5 inches
• Unit Width: 21 inches
• Unit Depth: 28.875 inches
• Unit Weight: 129 pounds
• Filter Quantity: 1
• Minimum Filter Size: 16x25 inches
• Communication Feature: Yes
• ETL Listed: Yes
• ANSI Certified: Yes
• Country of Origin: United States
• Residential Warranty - Heat Exchanger: 20 years parts (registered)
• Residential Warranty - All Parts: 10 years parts (registered)
• Standard Residential Warranty - Heat Exchanger: 20 years parts
• Standard Residential Warranty - All Parts: 5 years parts

Standard Information

• Brand: GOODMAN
• Manufacturer Part Number: arvt960804cn
