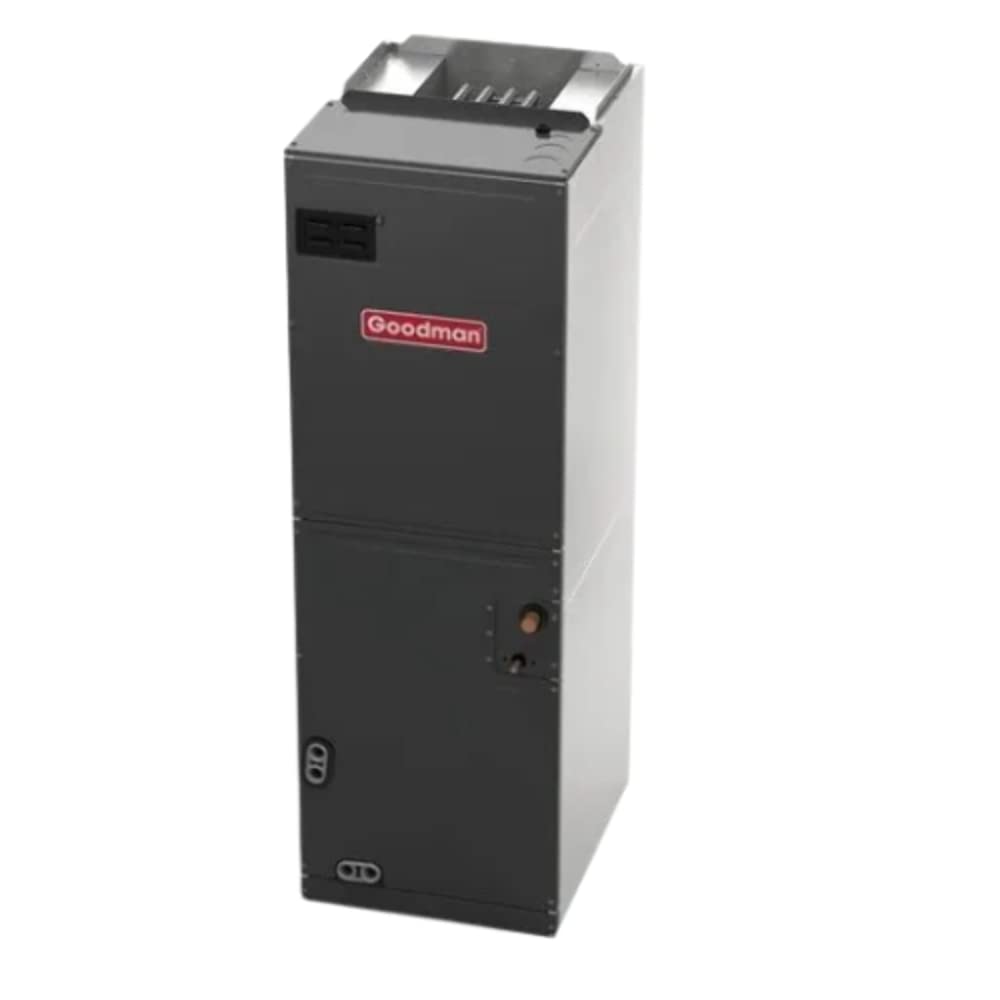

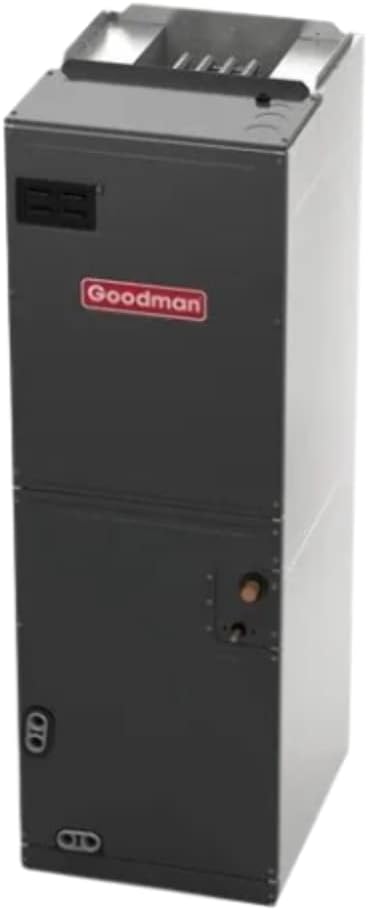

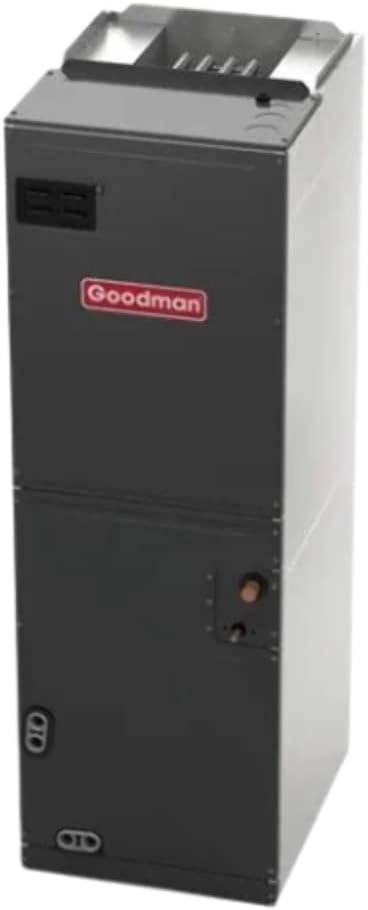

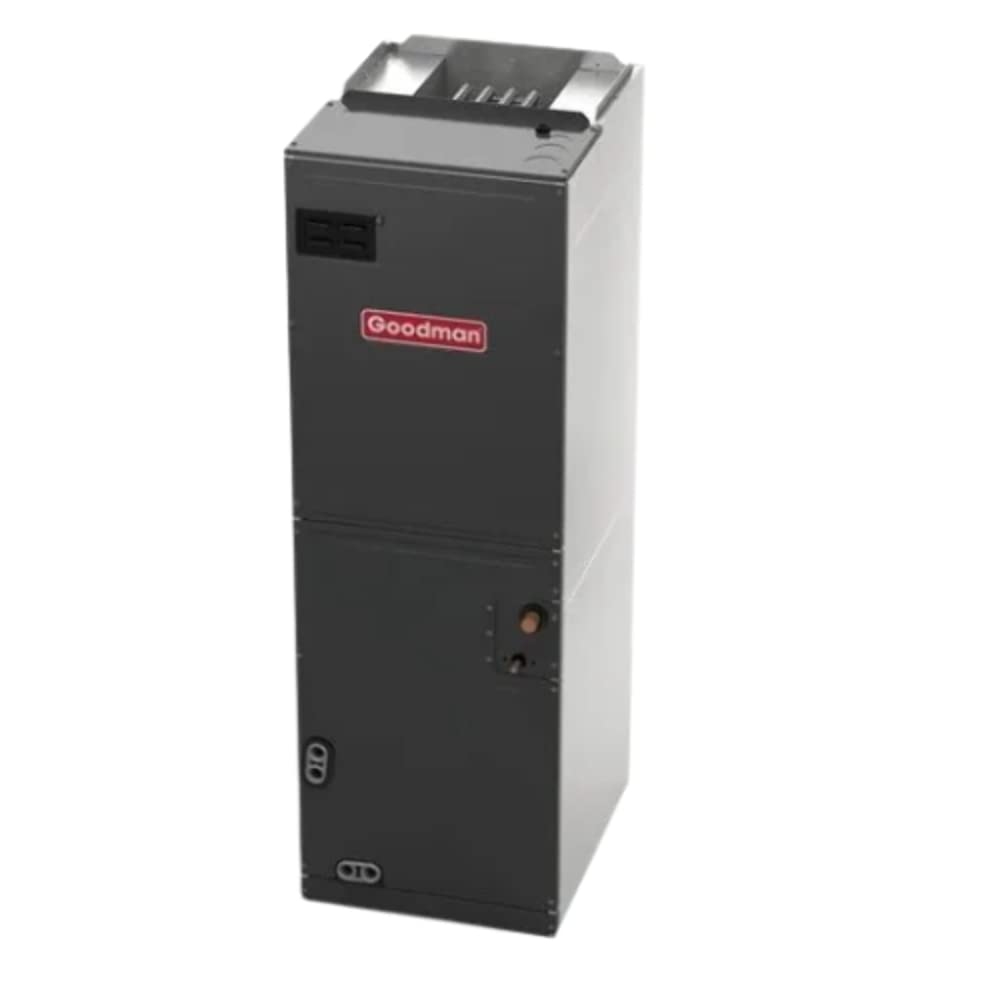

Goodman ARUF49C14 Air Handler 4 Ton

Product Description

The GOODMAN ARUF49C14 air handler provides cooling performance and features R-410A refrigerant. The SmartFrame inner skeleton adds lateral stability and provides a mounting location for internal components and additional insulation retention. The air handler has horizontal or vertical configuration capabilities and a DecaBDE-free thermoplastic drain pan with secondary drain connections.

• Features a direct drive, multi-speed PSC blower motor
• Equipped with an all-aluminum evaporator coil
• Cabinet air leakage less than 2.0% at 1.0 inch H2O

Product Highlights

The GOODMAN ARUF49C14 air handler offers cooling and heating solutions with a focus on efficient design and environmentally conscious refrigerant use.

Product Information

Standard Information

• Brand: GOODMAN
• Manufacturer Part Number: ARUF49C14
• Country of Origin: USA

Technical Specifications

• Voltage: 240 Volts
• Model Info: ARUF49C14
• Item Model Number: ARUF49C14
• Part Number: ARUF49C14
• Cooling Capacity: 48,000 BTU
• Cabinet Width: 21"
• Nominal Capacity: 4 Ton
• Motor: 3.1 FLA; 1/2 HP
• Type [Features]: Multi-Speed
• Airflow [Features]: Multi-Position
• Application [Features]: HVAC
• Horse Power [Features]: 1/2
• Liquid Line [Features]: 3/8"
• Suction Line [Features]: 7/8"
• Max Airflow (CFM) [Features]: 1590
• Min Airflow (CFM) [Features]: 1225
• Cooling Capacity (BTU) [Features]: 48000
• Series: ARUF
• SEER Rating: 13
• BTU Rating: 48000 Btu/hr Cooling
• HP Rating: 1/2 hp
• Voltage Rating: 208 - 240 VAC
• Amperage Rating: 4 A Minimum Circuit
• Frequency Rating: 60 Hz
• Phase: 1
• Configuration: Multi-Position
• Refrigerant Type: R-410A
• Connection Type: 7/8 in Suction, 3/8 in Liquid, 3/4 in FPT Coil Drain
• Fuse Rating: 15 A
• Finish: Galvanized, Leather Grain-Embossed
• Air Handler Type: Single Piece
• CFM @ 0.5" ESP: 1,425
• CFM High @ 0.3 ESP: 1,810
• Depth: 21"
• Height: 53-7/16"
• Liquid Conn.: 3/8"
• Max. Fuse Size: 15
• Min. Circuit Amps: 4
• Motor Type: PSC
• Nom. CFM: 1,425
• Nom. Tons: 4
• Refrigerant: R-410A
• Suction Fitting: 7/8"
• TXV Included: No
• Volts: 208/230
• Width: 21"
• Wt. Lbs.: 135
