Goodman ARUF43C14 Air Handler 3.5 Ton

Product Description

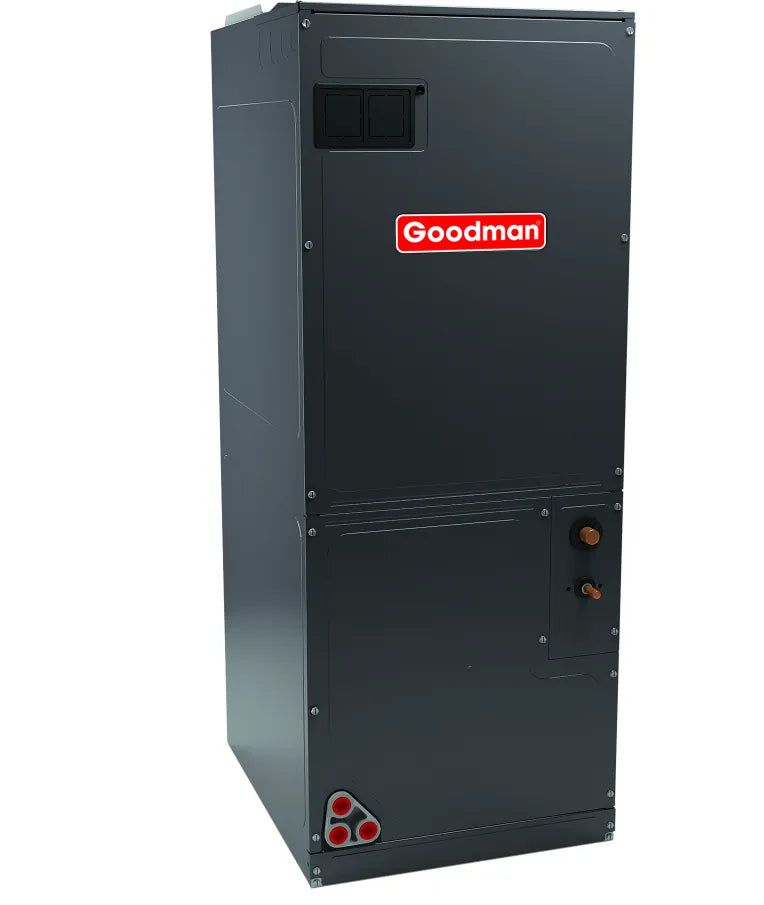

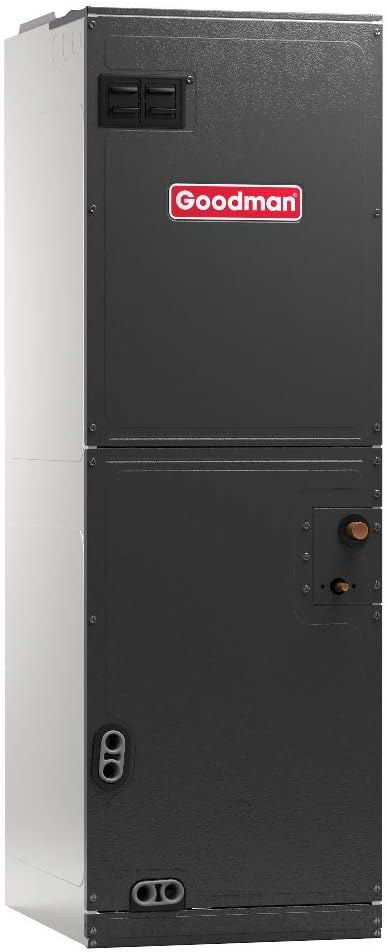

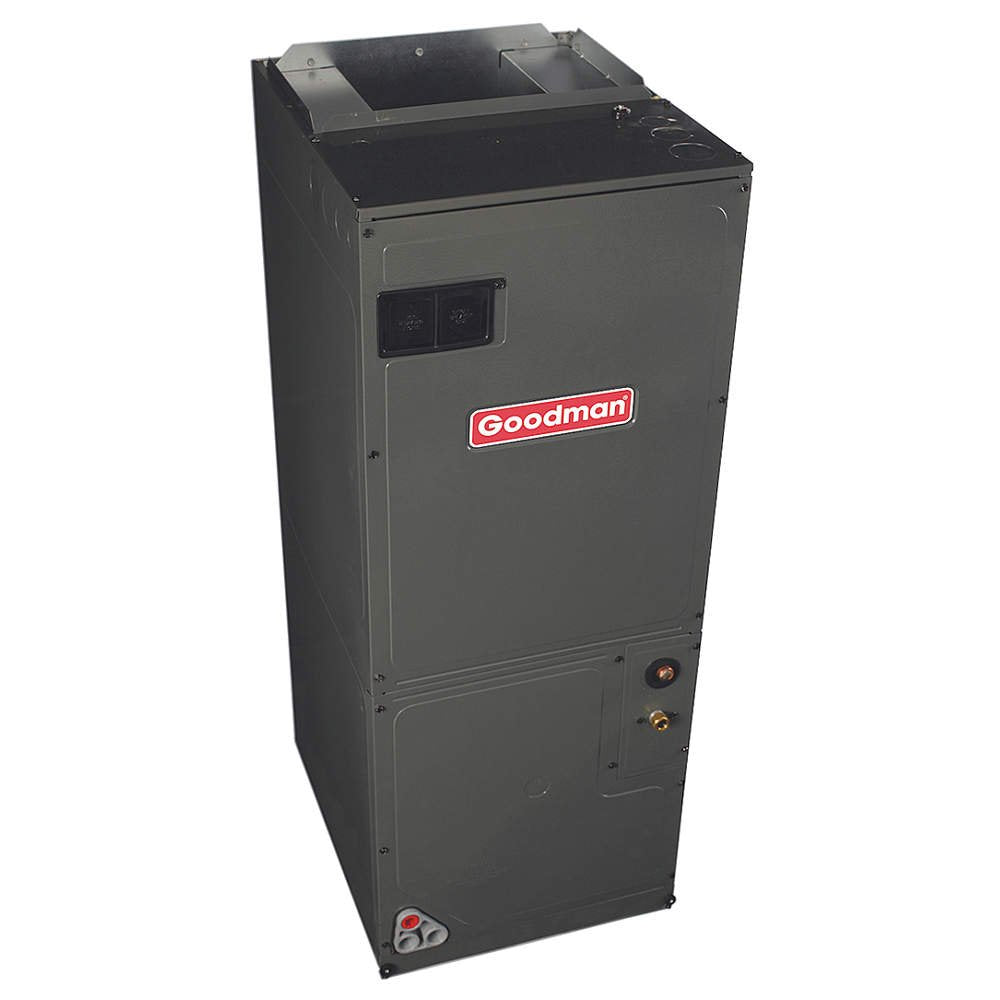

The Goodman ARUF43C14 air handler is a multi-position unit featuring a SmartFrame cabinet and a 3.5-ton capacity. Designed for efficient heat transfer with an all-aluminum evaporator coil. This air handler is suitable for both cooling and heat pump applications. The direct-drive, multi-speed PSC blower motor ensures reliable performance.

• Multi-Position Air Handler
• Features Smartframe Cabinet
• 3.5 Ton capacity

Product Highlights

This Goodman air handler provides a reliable and efficient solution for maintaining a comfortable home environment.

Product Information

Standard Information

• Brand: GOODMAN
• Manufacturer Part Number: ARUF43C14
• Country of Origin: USA

Technical Specifications

• Brand: Goodman
• Item Model Number: ARUF43C14
• MPN: ARUF43C14
• Batteries required: No
• Import: Made in USA or Imported
• Voltage: 208/230
• Motor: 2.85 FLA; 1/3 HP
• System Configuration: Multi-Positional
• Cooling Capacity: 42,000 BTU
• Nominal Capacity: 3.5 Ton
• Cabinet Width: 21"
• Phase: 1
• Frequency: 60 Hz
• Product Category: Air Conditioner & Air Handler Package
• Operating Mode: Cooling
• Blower Motor Type: ECM Variable-Speed
• Configuration: Multi-Position
• DOE Regional Compliance: North
• Capacity: 3.5 Tons
• SEER: 13.0
• EER: 12.0
• Maximum Air Flow: 1010 CFM
• ETL Listed: Yes
• AHRI Certified: Yes
• AHRI Reference Number: 201298452
• Air Handler Type: Air Handler
• Product Line Air Handler: ARUF
• Blower Motor Type Air Handler: Multi-Speed
• Motor Type: PSC
• Mount Type: Multi-Position
• Installation Location Air Handler: Indoor
• Electric Heat: Available
• TXV Installed: No
• Maximum Air Flow Air Handler: 1625 CFM
• Minimum Air Flow: 1120 CFM
• Minimum Circuit Ampacity Air Handler: 4 Amps
• Recommended Breaker Size Air Handler: 15 Amps
• Suction Connection Size Air Handler: 7/8 Inch
• Liquid Connection Size Air Handler: 3/8 Inch
• Product Line: GSX13
• Refrigerant Type: R-410a
• Installation Location: Outdoor
• Compressor Stages: Single Stage
• Cooling BTU: 42000
• Maximum Sound Level: 75 dB
• Minimum Circuit Ampacity: 24 Amps
• Recommended Breaker Size: 40 Amps
• Suction Connection Size: 1 1/8 Inches
• Liquid Connection Size: 3/8 Inch
• Series: ARUF
• SEER Rating: 13
• BTU Rating: 42000 Btu/hr Cooling
• HP Rating: 1/3 hp
• Voltage Rating: 208 - 240 VAC
• Amperage Rating: 4 A Minimum Circuit
• Connection Type: 7/8 in Suction, 3/8 in Liquid, 3/4 in FPT Coil Drain
• Fuse Rating: 15 A
• Finish: Galvanized, Leather Grain-Embossed
• Tonnage: 3.5
• Product Type: Air Handler
• Nominal Capacity (Tons): 3.5 ton
• Rated CFM @ 0.5 (in WC) High: 1,375 cfm
• Hz: 60
• Item: Single Piece Air Handler
• Use with Heater Models: HKSC05, HKSC06, HKSC08, HKSC10, HKSC15, HKSC19, HKSC20, HKSX15, HKSX20, Mfr. No. HKSC03
• Standards: AHRI Certified, ETL Listed, ISO 14001, ISO 9001
• Electric Heater Compatible: Yes
• Nameplate Voltage: 208-230V AC
• Nominal Air Capacity: 3.5 ton
• Nominal Cooling Capacity (BtuH): 18,000 BtuH
• Motor Horsepower: 1/2 hp
• Maximum Airflow: 1,375 cfm @ 0.5 in wc
• Nominal Voltage / Phase: 208-230V AC / 1 Ph
• Housing Material Finish: Galvanized
• Current: 2.85 A
• Drive Type: Direct Drive
• Refrigerant Pre-Charged: Yes
• Housing Material: Aluminum
• Number of Speeds: 3
• Compatible Heater Manufacturer Part Number: HKSC05XC, HKSC08XC, HKSC10XC, HKSX03XC, HKSX05XC, HKSX06XC, HKSX08XC, HKSX10XC
• Coil Connection Type: FPT
• Expansion Device Type: Flow Rater
• Discharge Position: Multiposition (Up, Down, Horizontal)
• Overall Depth: 21 in
• Min. Circuit Amps: 4 A
• Piston Size: 0.07 in
• Return Air Opening Width: 17 11/16 in
• Liquid Line Size: 3/8 in
• Return Dimensions: 17 11/16 in W x 19 1/2 in D
• Suction Line Size: 7/8 in
• Liquid/Supply Line Sizes: 3/8 in, 7/8 in
• Supply Dimensions: 19 7/8 in W x 11 5/16 in D
• Supply Opening Width: 19 7/8 in
• Supply Opening Depth: 11 5/16 in
• Coil Drain Connection Size: 3/4 in
• Return Air Opening Depth: 19 1/2 in
• Overall Height: 45 in
• Overall Width: 17 1/2 in
• Return Air Opening Depth (In.): 19 1/2 in
• Suction Line Size (In.): 7/8 in
• Max. Fuse Size: 15
• Return Air Opening Width (In.): 17 45/64 in
• Supply Opening Depth (In.): 11 5/16 in
• Liquid Line Size (In.): 3/8 in
• Filter Size: 19.5 in W x 20 in H
• Supply Opening Width (In.): 19 29/32 in
