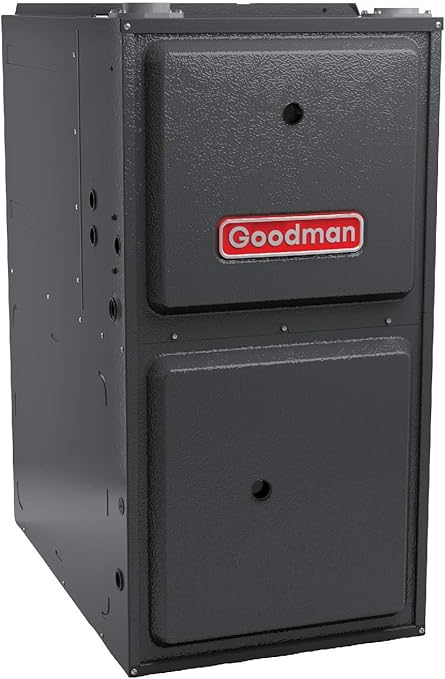

Goodman ar9t961004cn Gas Furnace 96 Afue 100000 Btu/h

Product Description

The Goodman ar9t961004cn is a 96 AFUE two-stage, multi-speed upflow and horizontal gas furnace rated at 100,000 BTU/h high-fire input. It uses an ECM blower motor and a two-stage gas valve to modulate between a 70,000 BTU/h low-fire stage and the full 100,000 BTU/h high-fire stage, delivering 97,000 BTU/h and 67,900 BTU/h at output respectively. This unit is designed for ducted indoor installations and carries ENERGY STAR certification along with ANSI certification. Licensed HVAC technicians install this furnace in residential and light commercial applications where high-efficiency gas heat is required in an upflow or horizontal configuration.

This furnace is built for upflow and horizontal ducted installations and is sized for 4-ton system configurations with a nominal cooling coil capacity of 48,000 BTU/h. The multi-speed ECM blower supports a high heating airflow of 1,699 cubic feet per minute and a low heating airflow of 1,369 cubic feet per minute, allowing it to match a range of duct systems. Its Non-NOx burner design meets low-emission requirements common in air quality regulated markets. The AR9T96 series is manufactured in the United States.

Key Features

• 96 AFUE rated for high-efficiency gas heat with ENERGY STAR certification
• Two-stage gas valve: 70,000 BTU/h low fire and 100,000 BTU/h high fire
• Multi-speed ECM blower motor rated at 1 hp with airflows up to 1,699 CFM
• Upflow and horizontal installation configurations supported
• Non-NOx burner for low-emission compliance
• ANSI certified with gas heat exchanger construction

Compatibility

Designed as an OEM upflow and horizontal gas furnace in the AR9T96 series, sized for 4-ton ducted systems with a compatible cooling coil capacity of 48,000 BTU/h nominal.

Installation Notes

Installation must be performed by a licensed HVAC technician in accordance with local mechanical codes and the manufacturer installation instructions. Shut off gas supply and disconnect electrical power before any service or installation work. The unit operates on 115 volts single-phase AC at 60 Hz and requires a minimum circuit ampacity of 14.3 amps with a maximum overcurrent protection of 25 amps. Verify duct sizing against the published airflow data and confirm the temperature rise range of 35 to 65 degrees F is achievable at both fire stages before completing startup.

Technical Specifications

• AFUE: 96%
• High-Fire Input Capacity: 100,000 BTU/h
• High-Fire Output Capacity: 97,000 BTU/h
• Low-Fire Input Capacity: 70,000 BTU/h
• Low-Fire Output Capacity: 67,900 BTU/h
• Nominal Cooling Capacity: 48,000 BTU/h (4 Ton)
• Power Voltage: 115 volts AC, 1-Phase, 60 Hz
• Minimum Circuit Amps: 14.3 amps
• Maximum Overcurrent Protection: 25 amps
• Blower Motor Horsepower: 1 hp (ECM, Multi-Speed)
• Air Flow Rate High Heating: 1,699 ft3/min
• Air Flow Rate Low Heating: 1,369 ft3/min
• Temperature Rise Range: 35 to 65 degrees F (high and low fire)
• Gas Valve Type: Two-Stage
• Burner Type: Non-NOx
• Heat Exchanger Type: Gas
• Installation Configuration: Upflow/Horizontal
• Unit Height: 34.5 inches
• Unit Width: 21 inches
• Unit Depth: 28.875 inches
• Blower Diameter: 11 inches
• Blower Width: 10 inches
• Unit Weight: 140 pounds
• Certifications: ENERGY STAR, ANSI
• Country of Origin: United States
• Standard Residential Parts Warranty: All Parts 5 Years; Heat Exchanger 20 Years
• Registered Residential Parts Warranty: All Parts 10 Years; Heat Exchanger 20 Years (up to 79 Years heat exchanger with registration)

Standard Information

• Brand: Goodman
• Manufacturer Part Number: ar9t961004cn
