Goodman ar9t801005cn 80 Afue Two Stage Gas Furnace 100K Btu

Product Description

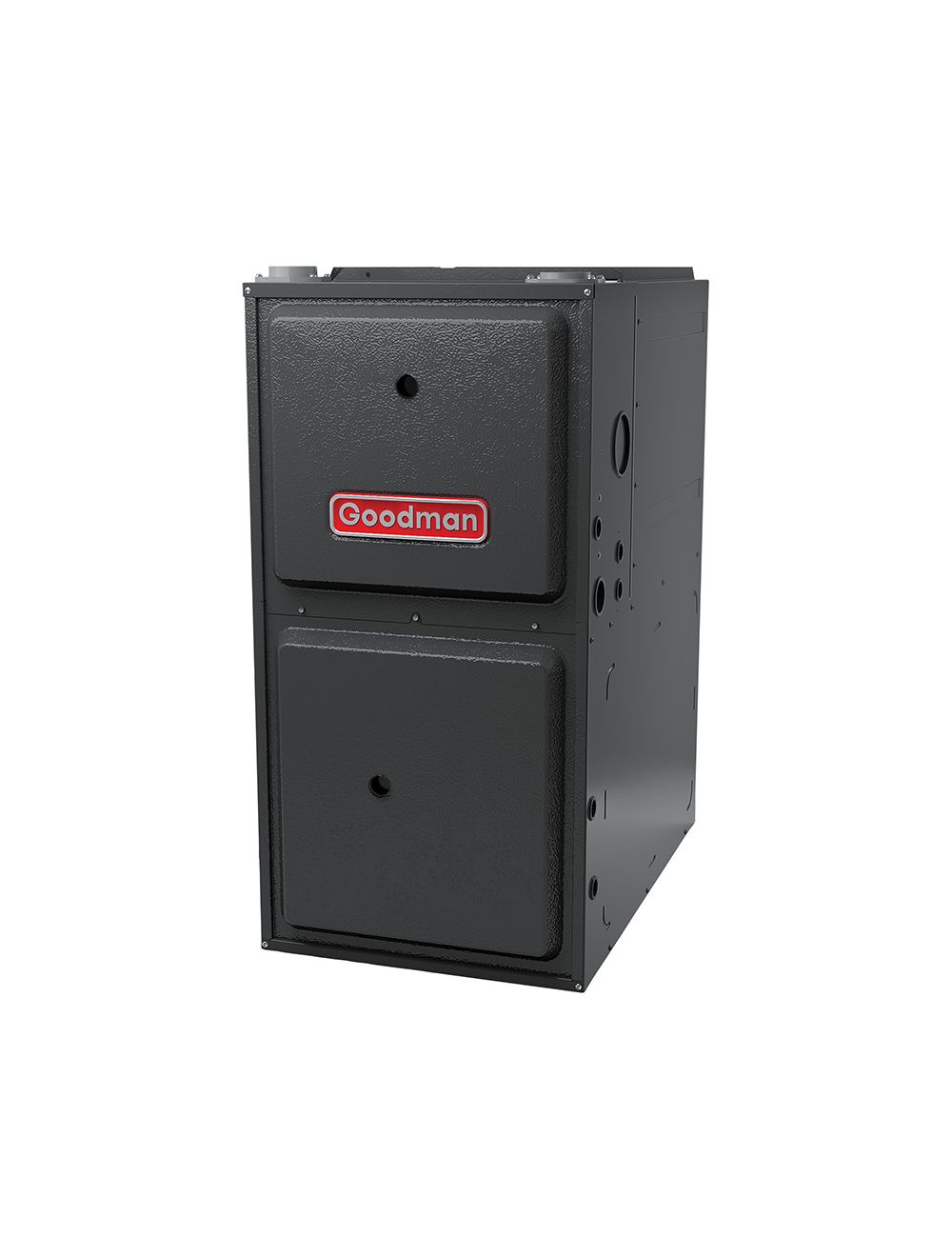

The GOODMAN ar9t801005cn is an 80 AFUE, two-stage, upflow/horizontal gas furnace rated at 100,000 BTU/h high-fire input and 80,000 BTU/h high-fire output. It uses a multi-speed ECM blower motor capable of moving up to 2,152.5 cubic feet per minute at high-fire heating mode. The two-stage gas valve allows the unit to operate at a reduced 70,000 BTU/h low-fire input for quieter, more efficient part-load heating, stepping up to full capacity only when demand requires. This unit is designed for ducted, indoor installations in upflow or horizontal configurations. Licensed HVAC technicians handle installation and commissioning.

The ar9t801005cn is sized for residential and light commercial ducted forced-air heating applications requiring up to 5-ton nominal cooling coil compatibility. The upflow/horizontal configuration suits installations in utility closets, basements, crawl spaces, and attic applications where the unit is laid on its side. It runs on single-phase, 115-volt, 60 Hz AC power and carries Non-NOx burner designation. The temperature rise range at high fire is 25 to 55 degrees F, making it suitable for a range of duct system designs.

Key Features

• 80 AFUE rated efficiency with two-stage gas valve for part-load and full-load operation
• Multi-speed ECM blower motor with high-fire airflow of 2,152.5 CFM
• Upflow and horizontal installation configurations supported
• Non-NOx burner design for low-emissions compliance
• 10-inch blower diameter accommodates high-capacity airflow for up to 5-ton coil systems
• ANSI certified construction

Compatibility

Designed as an OEM-style upflow/horizontal gas furnace for ducted residential and light commercial forced-air heating systems requiring an 80 AFUE, two-stage unit with a nominal 5-ton cooling coil capacity and 21-inch cabinet width.

Installation Notes

Installation must be performed by a licensed HVAC technician in accordance with local mechanical codes and the manufacturer installation instructions. Shut off gas supply and disconnect electrical power before any service or connection work. The unit requires a dedicated circuit sized to the 15.32-amp minimum circuit ampacity with a maximum 20-amp overcurrent protection device. Proper venting must be installed per applicable fuel-gas codes such as the IFGC or local equivalents before placing the unit in service.

Technical Specifications

• AFUE: 80
• High-Fire Input Capacity: 100,000 BTU/h
• High-Fire Output Capacity: 80,000 BTU/h
• Low-Fire Input Capacity: 70,000 BTU/h
• Low-Fire Output Capacity: 56,000 BTU/h
• Nominal Cooling Capacity: 60,000 BTU/h (5 Ton)
• Temperature Rise Range (High Fire): 25-55 degrees F
• Airflow Rate (High Fire Heating): 2,152.5 CFM
• Power Voltage: 115 volts
• Power Phase: Single Phase
• Power Frequency: 60 Hz
• Minimum Circuit Ampacity: 15.32 amps
• Max Overcurrent Protection: 20 amps
• Motor Speed Type: Multi-Speed ECM
• Gas Valve Type: Two Stage
• Blower Diameter: 10 inches
• Blower Width: 10 inches
• Unit Width: 21 inches
• Unit Height: 33-3/8 inches
• Unit Depth: 28 inches
• Unit Weight: 124 pounds
• Installation Configuration: Upflow/Horizontal
• Unit Type: Indoor Ducted
• Burner Type: Non-NOx
• Heat Exchanger Type: Gas
• Current Type: AC
• ANSI Certified: Yes
• Standard Parts Warranty (Residential): All Parts 5 Years; Heat Exchanger 20 Years
• Registered Parts Warranty (Residential): All Parts 10 Years; Heat Exchanger 20 Years

Standard Information

• Brand: GOODMAN
• Manufacturer Part Number: ar9t801005cn
