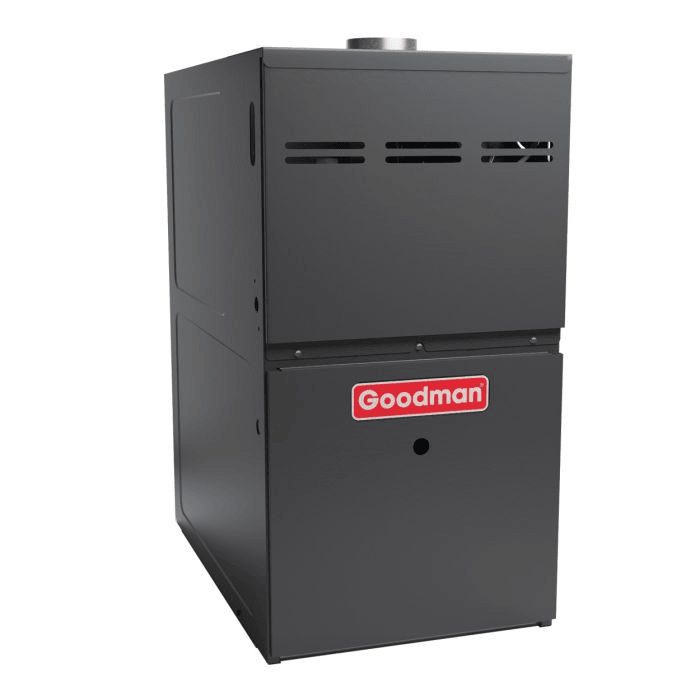

Goodman ar9s960403an Gas Furnace 40000 Btu/h 97 Afue

Product Description

The GOODMAN ar9s960403an is a single-stage, multi-speed ECM gas furnace rated at 97 AFUE, delivering 40,000 BTU/h input and 38,800 BTU/h output. Designed for ducted upflow and horizontal installations, it draws 115 volts AC at a minimum circuit amperage of 9.7 amps, with maximum overcurrent protection of 15 amps. The unit ships from United States manufacturing facilities and carries ENERGY STAR certification along with ANSI certification. Licensed HVAC technicians handle installation as part of a complete ducted heating system in residential or multi-family applications.

This furnace is configured for upflow or horizontal ducted installations, making it suitable for basement, closet, or attic applications where those orientations are required. With a nominal cooling coil capacity of 36,000 BTU/h (3 tons), it pairs with a matched cooling coil for year-round system use. The temperature rise range at high fire is 25 to 55 degrees F, and the blower delivers up to 1,055 cubic feet per minute at high heating speed. The Non-NOx burner design meets low-emissions requirements in applicable jurisdictions.

Key Features

• 97 AFUE efficiency rating with ENERGY STAR certification
• Single-stage gas valve with multi-speed ECM blower motor
• Upflow and horizontal installation configurations supported
• Non-NOx burner for low-emissions compliance
• 40,000 BTU/h high-fire input with 38,800 BTU/h output capacity
• Gas heat exchanger with up to 79-year registered residential warranty

Compatibility

Designed as an OEM upflow and horizontal gas furnace for ducted residential and multi-family HVAC systems requiring a 3-ton nominal cooling coil match and a 14-inch cabinet width.

Installation Notes

Installation must be performed by a licensed HVAC technician in accordance with local mechanical codes, the National Fuel Gas Code (NFPA 54), and manufacturer instructions. Disconnect all electrical power and shut off the gas supply before beginning any service or installation work. Verify flue venting meets local code requirements for high-efficiency condensing appliances before startup. Do not operate the unit without all panels secured and ductwork fully connected.

Technical Specifications

• AFUE: 97
• High-Fire Input Capacity: 40,000 BTU/h
• High-Fire Output Capacity: 38,800 BTU/h
• Nominal Cooling Capacity: 36,000 BTU/h (3 tons)
• Gas Valve Type: Single Stage
• Motor Speed Type: Multi-Speed ECM
• Blower Motor Horsepower: 0.5 hp
• Air Flow Rate High Heating: 1,055 ft3/min
• Temperature Rise Range High Fire: 25-55 degrees F
• Power Voltage: 115 volts AC, 1-phase, 60 Hz
• Minimum Circuit Amps: 9.7 amps
• Max Overcurrent Protection: 15 amps
• Installation Configuration: Upflow/Horizontal
• Unit Width: 14 inches
• Unit Height: 34.5 inches
• Unit Depth: 28.875 inches
• Blower Diameter: 11 inches
• Blower Width: 6 inches
• Weight: 106 pounds
• Burner Type: Non-NOx
• Heat Exchanger Type: Gas
• Certifications: ENERGY STAR, ANSI
• Country of Origin: United States
• Registered Residential Parts Warranty: All Parts 10 years; Heat Exchanger 20 years (up to 79 years)
• Standard Residential Parts Warranty: All Parts 5 years; Heat Exchanger 20 years

Standard Information

• Brand: GOODMAN
• Manufacturer Part Number: ar9s960403an
