Goodman ar9s801005cx 80 Afue Gas Furnace 100000 Btu/h

Product Description

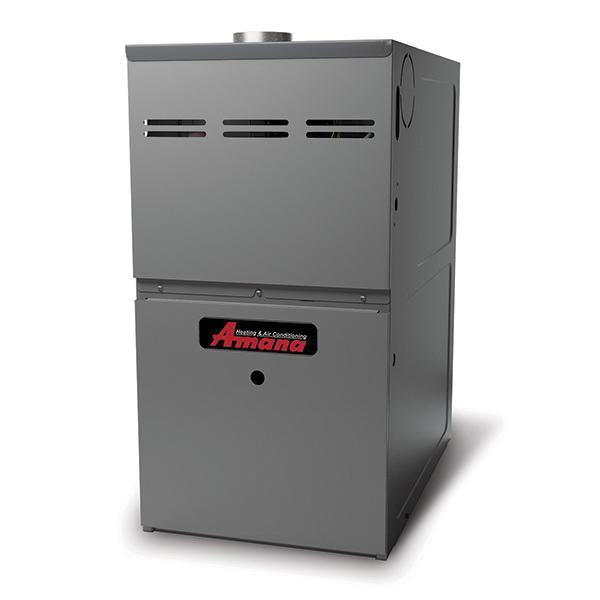

The Goodman ar9s801005cx is an 80 AFUE single-stage upflow and horizontal gas furnace rated at 100,000 BTU/h high-fire input and 80,000 BTU/h output. It runs on a multi-speed blower motor, draws 115 volts AC at 60 Hz on a single-phase circuit, and requires a minimum of 12.45 amps with a maximum overcurrent protection of 15 amps. The unit is designed for ducted forced-air systems and carries ANSI certification. Licensed HVAC technicians install and commission this furnace. Its Low NOx burner design meets low-emissions requirements in regulated markets.

This furnace is configured for upflow or horizontal installation in ducted residential and light-commercial applications. It supports up to 5 tons of nominal cooling capacity at 60,000 BTU/h, making it compatible with matched cooling coils in split systems. The cabinet measures 21 inches wide, 28 inches deep, and 33-3/8 inches tall, with a 10-inch blower. The temperature rise range at high fire is 35 to 65 degrees F. It is suited for indoor installation where gas-fired, forced-air heating is specified.

Key Features

• 80 AFUE efficiency with single-stage gas valve for straightforward operation and reliable heating performance
• 100,000 BTU/h high-fire input capacity with 80,000 BTU/h output
• Multi-speed blower motor with a maximum heating airflow of 1,308 cubic feet per minute
• Low NOx burner design for compliance in emissions-regulated jurisdictions
• ANSI certified construction with a gas heat exchanger
• Upflow and horizontal installation configurations supported in a single unit

Compatibility

Designed as an OEM upflow and horizontal gas furnace for ducted split systems; supports matched cooling coils up to 5 tons nominal cooling capacity.

Installation Notes

Installation must be performed by a licensed HVAC technician in accordance with local mechanical codes and the applicable edition of the International Fuel Gas Code. Shut off gas supply and disconnect electrical power before servicing or making any connections. The unit requires a dedicated circuit sized to the minimum circuit ampacity and overcurrent protection values on the rating plate. Verify vent and combustion air requirements comply with local code before startup.

Technical Specifications

• AFUE: 80
• High-Fire Input Capacity: 100,000 BTU/h
• High-Fire Output Capacity: 80,000 BTU/h
• Nominal Cooling Capacity: 60,000 BTU/h (5 tons)
• Gas Valve Type: Single Stage
• Blower Motor Type: Multi-Speed
• Blower Motor Horsepower: 3/4 hp
• Max Heating Airflow: 1,308 ft³/min
• Temperature Rise Range (High Fire): 35-65 degrees F
• Power Voltage: 115 volts AC
• Power Phase: Single Phase
• Power Frequency: 60 Hz
• Minimum Circuit Amps: 12.45 amps
• Max Overcurrent Protection: 15 amps
• Burner Type: Low NOx
• Heat Exchanger Type: Gas
• Installation Configuration: Upflow/Horizontal
• Unit Width: 21 inches
• Unit Depth: 28 inches
• Unit Height: 33-3/8 inches
• Blower Diameter: 10 inches
• Blower Width: 10 inches
• Unit Weight: 132 pounds
• ANSI Certified: Yes
• Standard Residential Warranty (Parts): All Parts 5 Years; Heat Exchanger 20 Years
• Registered Residential Warranty (Parts): All Parts 10 Years; Heat Exchanger 20 Years
• Standard Commercial Warranty (Parts): All Parts 5 Years; Heat Exchanger 20 Years

Standard Information

• Brand: Goodman
• Manufacturer Part Number: ar9s801005cx
