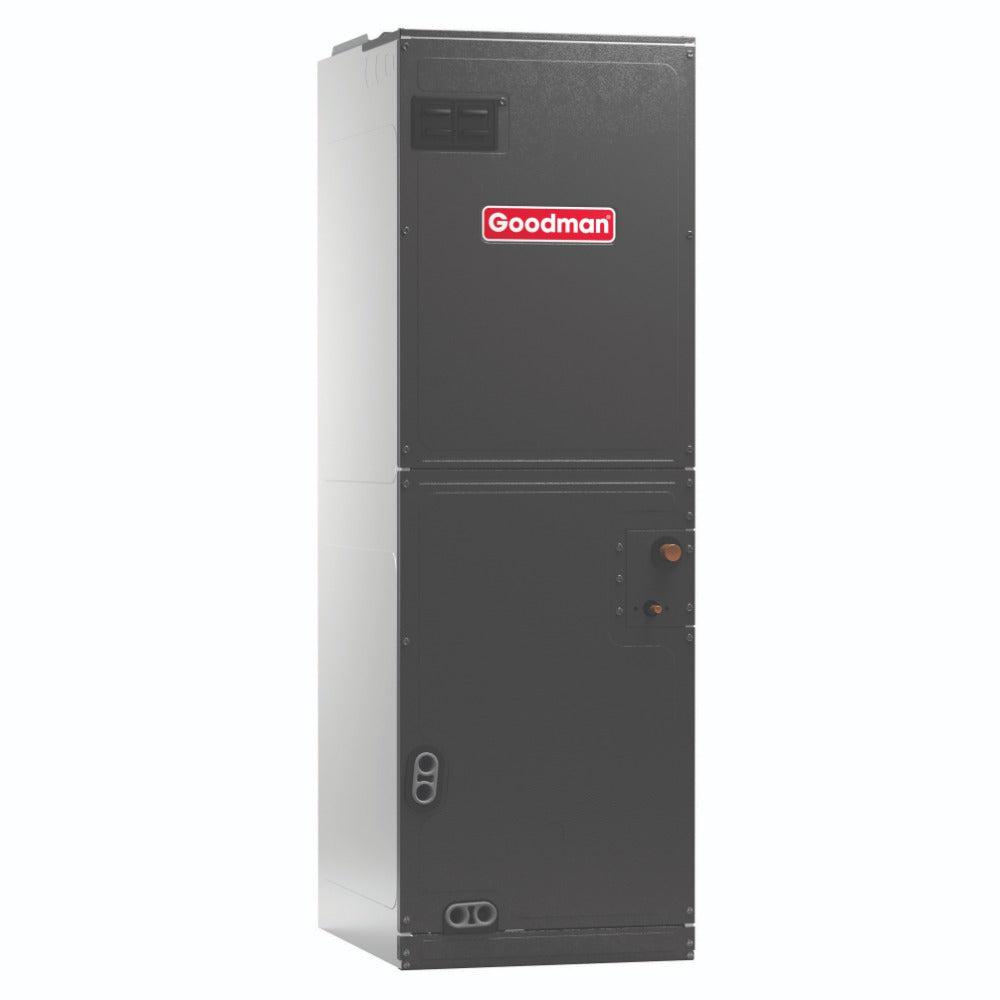

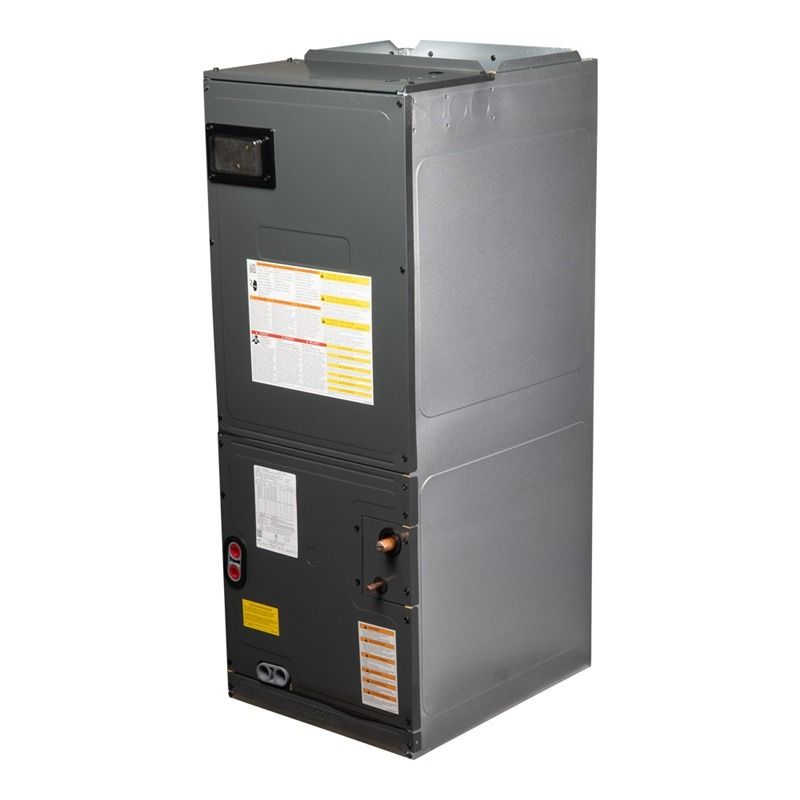

The Goodman AMVT36BP1300 air handler features an energy-saving, direct drive ECM blower motor and a durable cabinet designed for easy installation. Compatible with electric heat and compliant with Clean Air Act New Refrigerant Requirements (R32). It is multi-positional for upflow, downflow, or horizontal configurations. The unit is rated for 3 tons and has a heavy-gauge cabinet structure with an all-aluminum evaporator.

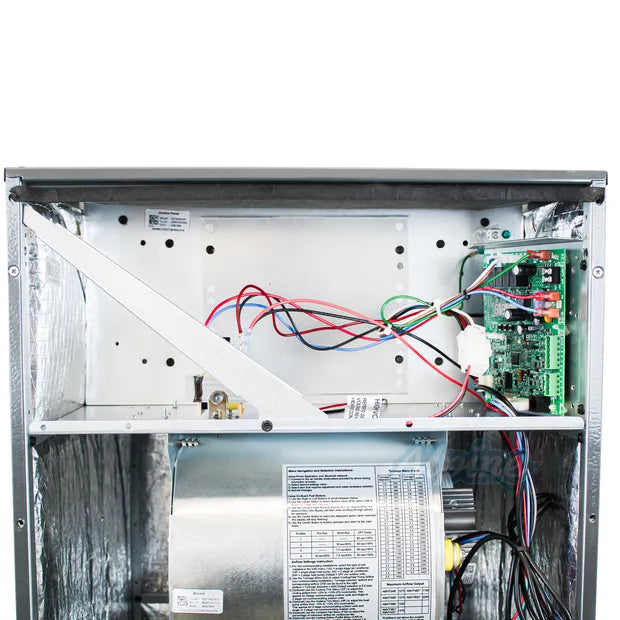

Energy-saving, direct drive ECM blower motor
Durable cabinet with multiple features for easy installation
Multi-positional (upflow, downflow, or horizontal)
Product Highlights
The AMVT36BP1300 provides efficiency and enhanced comfort with its variable speed ECM motor for precise temperature control. It utilizes SmartFrame technology for easy installation and maintenance.
Product Information
Standard Information
Brand: GOODMAN
Manufacturer Part Number: AMVT36BP1300
Technical Specifications
SKU
AMVT36BP1300
Brand/Manufacturer
Goodman
Replaces
AMVT36BP1400, AVPTC37B14
Product Features
New Refrigerant Compliant
Blower Motor
Variable Speed
Maximum CFM
1185
Horsepower
.75 HP
Electric Backup Heat Capabilities (Optional)
15 Kilowatts
Configuration
Multi-Positional
Refrigerant
R32
Liquid Valve Size
3/8"
Suction Valve Size
3/4"
Electrical
208/240v 1 Phase 60Hz
Max Breaker Size
15 Amps
Min. Breaker Size
6.5 Amps
Tonnage
3 Ton
Connection
3/4" FPT
Height
53 7/16"
Width
17 9/16"
Depth
23 11/16"
Fuel Type
Electricity
Requires Downflow Kit
Yes
Product Type
Multi-Positional Air Handler
TXV Built-in
TXV
Refrigerant Readiness
Primary Refrigerant
TXV Required
Factory Installed TXV
Mobile Home Compatible
No
RDS (Refrigerant Detection System) On-Board
Yes
RDS Factory-Programmed For
R-32
Refrigerant Metering Device
TXV
Metering Device Refrigerant Compatibility
R-32
High Output Cool
36000 BTU
Blower Cooling Capacity
3 Tons
Blower Motor Horse Power
3/4 HP
Voltage
208 - 240 Volts
Frequency
60 Hz
Voltage Phase
1
Minimum Ampacity
6.5 Amps
Maximum Fuse/Breaker
15 Amps
Liquid Line Size (OD)
3/8 Inches
Suction Line Size (OD)
3/4 Inches
Cabinet/Chassis Size
B
Product Weight
134 lbs
Shipping Weight
134 lbs
Blower Width
6 inches
Multi-Stage Compressor Compatible
Yes
Cross-Brand Compatibility: R-410A Air Conditioner
No
Cross-Brand Compatibility: R-32 Air Conditioner
Yes
Cross-Brand Compatibility: R-454B Air Conditioner
No
Cross-Brand Compatibility: R-410A Heat Pump
No
Cross-Brand Compatibility: R-32 Heat Pump
Yes
Cross-Brand Compatibility: R-454B Heat Pump
No
Return Air Opening Size
19.5 x 12.5 inches
Blower Diameter
10 inches
Drain Connection (I.D.)
0.75 inch
Supply Air Opening Size
16.313 x 11.313 Inches
Qualified Manufacturer ID (QMID)
I7Q6
Cabinet Air Leakage at 1.0 inch H2O
air leakage less than 2.0% at 1.0 inch H2O when tested in accordance with ASHRAE standard 193
Cabinet Air Leakage at 0.5 inch H2O
air leakage less than 1.4% at 0.5 inch H2O when tested in accordance with ASHRAE standard 193
