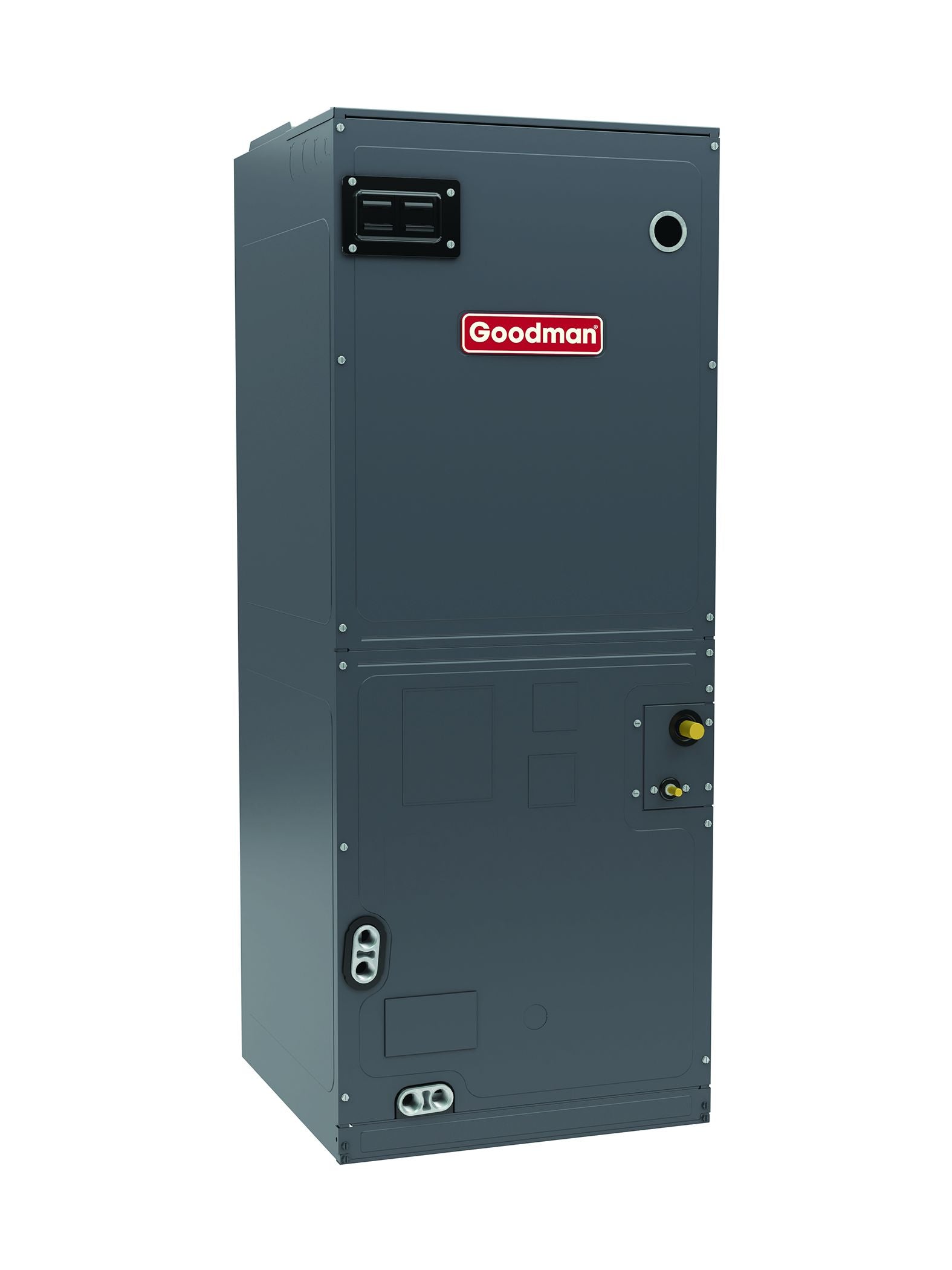

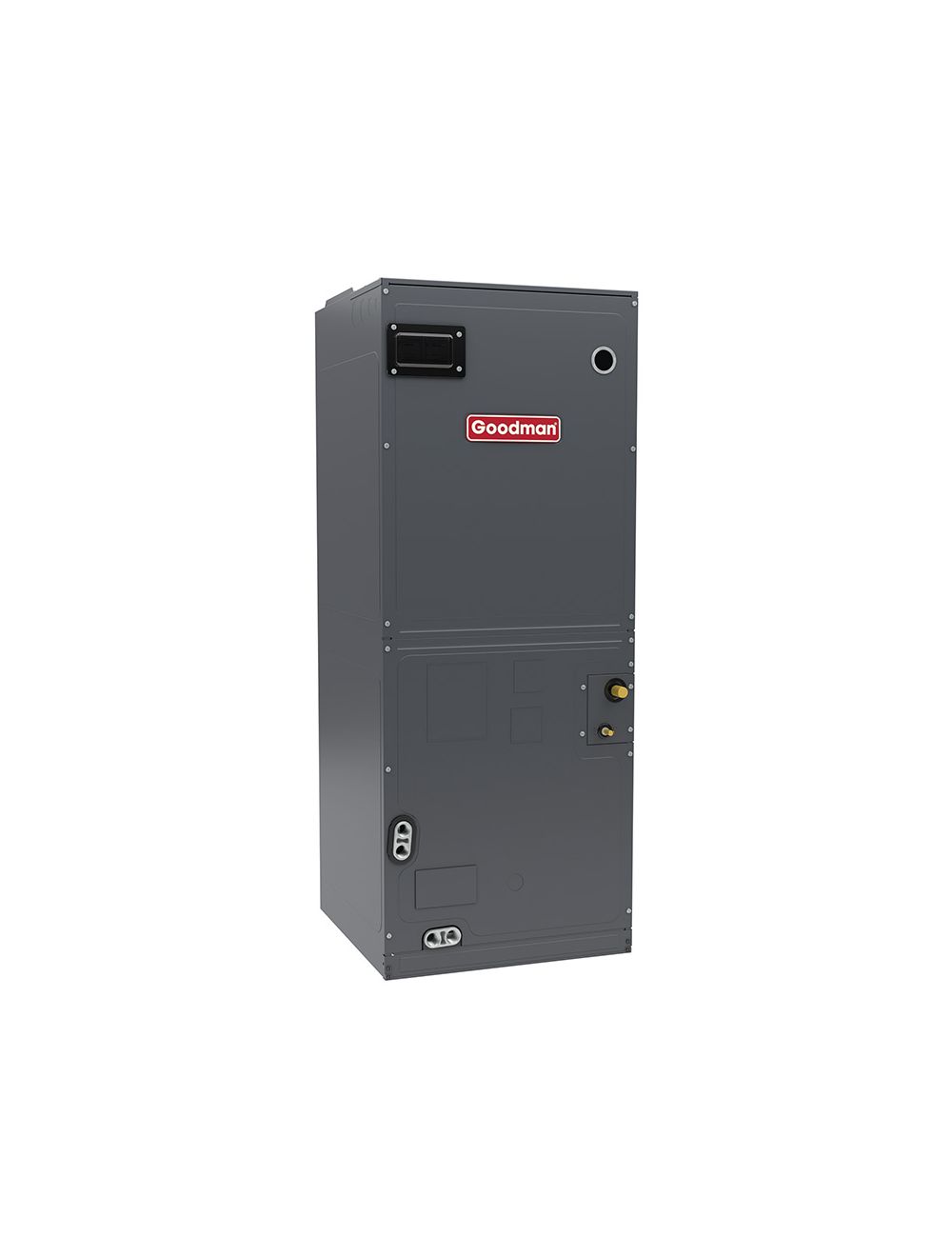

GOODMAN AMVT24BP1300 Goodman AMVT24BP1300 2 Ton Multi-Position Air Handler

Product Description

The Goodman AMVT24BP1300 is a two-ton air handler for multi-position installation. It includes an all-aluminum evaporator coil and a direct drive, multi-speed ECM blower motor for effective air circulation. Designed for R-32 refrigerant, it comes with factory-installed thermal expansion valves for both cooling and heat pump applications. The SmartFrame cabinet consists of galvanized steel with screw-less sides and back. A DecaBDE-free thermoplastic drain pan is also part of the design.

• Multi-speed ECM blower motor
• All-aluminum evaporator coil
• Flexible configuration for horizontal or vertical use

Product Highlights

The Goodman AMVT24BP1300 unit stands out for its durability and energy efficiency, making it suitable for various indoor installations.

Product Information

Standard Information

• Brand: Goodman
• Model Number: AMVT24BP1300

Technical Specifications

• Product Line: AMST
• Product Category: Air Handler
• Cooling Capacity: 2 Ton
• Cooling BTU: 24000
• Refrigerant Type: R-32
• Blower Motor Type: Multi-Speed Variable Speed
• Motor Type: ECM
• Mount Type: Multi-Position
• Installation Location: Indoor
• Air Flow Direction: Horizontal, Vertical
• Electrical Phase: 1-Phase
• Input Voltage: 208/230 Volts
• Frequency: 60 Hz
• Minimum Circuit Ampacity: 5.8 Amps
• Max Overcurrent Protection: 15 amps
• Recommended Breaker Size: 15 Amps
• Electric Heat: Available
• Heat Strip Compatibility: Up to 15 kW
• Maximum Air Flow: 1215 CFM
• Minimum Air Flow: 825 CFM
• Suction Line Size: 3/4 inch
• Liquid Line Size: 3/8 inch
• Suction Connection Size: 3/4 Inch
• Liquid Connection Size: 3/8 Inch
• Drain Outlet Diameter: 3/4 Inch
• Product Width: 17.5 Inches
• Product Height: 45 Inches
• Product Depth: 21 Inches
• Product Weight: 97 Pounds
• Shipping Weight: 112 Pounds
• Certifications: AHRI Certified, ETL Listed, ISO Certified
• Parts Warranty: 10 Limited Years
