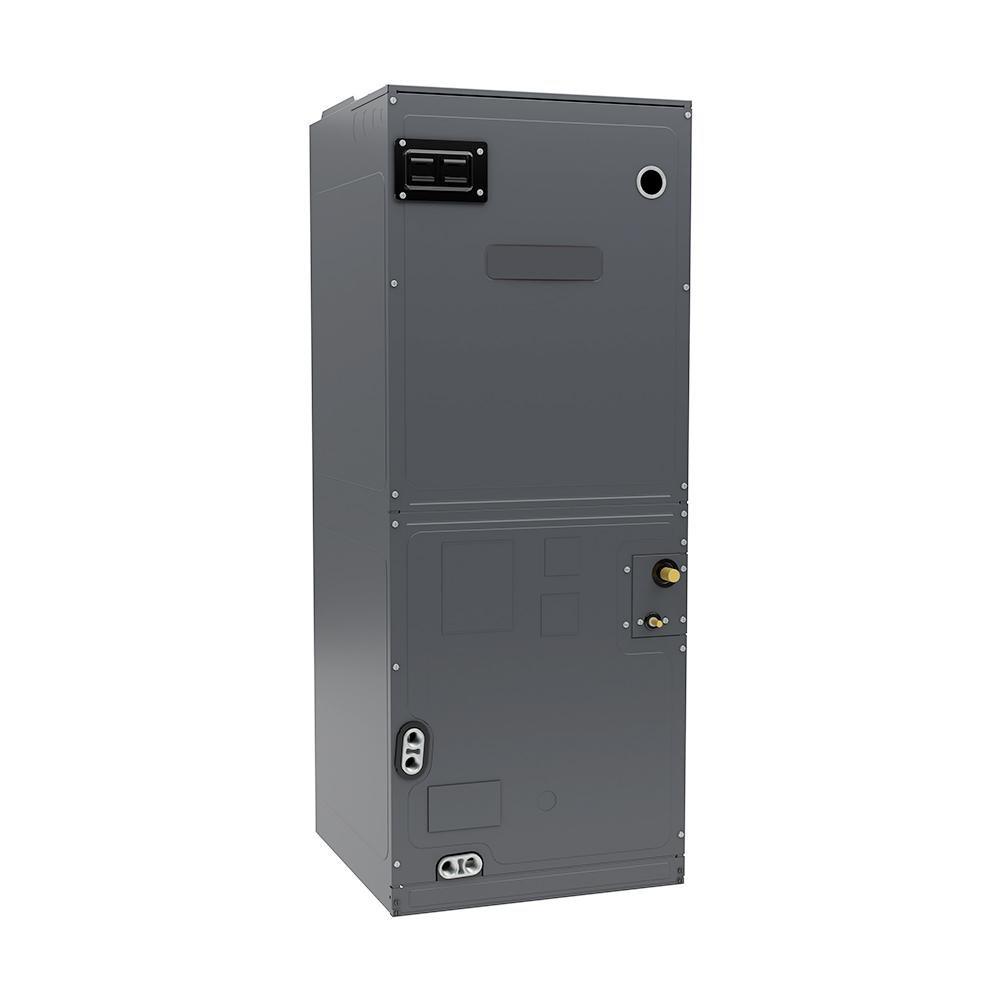

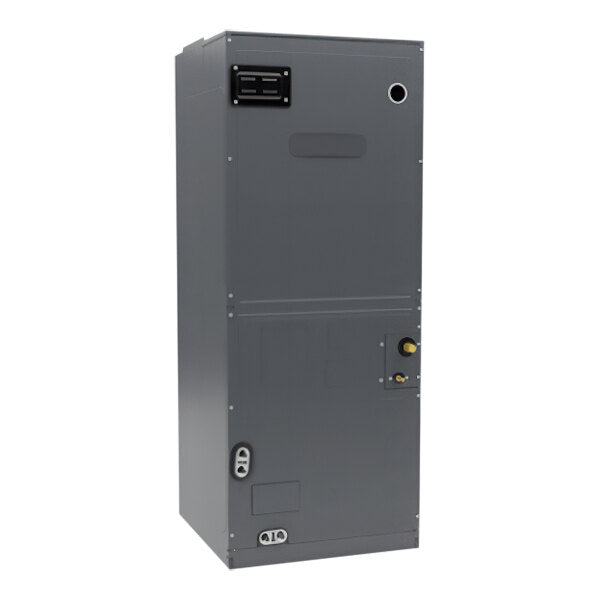

Goodman AMST48DU1300 Multi Speed 4 Ton 48,000 BTU Air Handler R32

Product Description

The Goodman AMST48DU1300 4 Ton Air Handler R32 is a genuine Goodman air handler in a 4 ton size and R32. It delivers exceptional air circulation efficiency and provides reliable cooling and heating performance for residential and commercial applications.

• Internal factory-installed thermal expansion valves for cooling and heat pump applications
• Direct drive, multi-speed ECM blower motor
• All-aluminum evaporator coil

Product Highlights

This multi-position air handler is optimized for single-stage outdoor units up to 15.2 SEER2. It features a 9-speed ECM blower and is designed for use with R-32 refrigerant.

Product Information

Standard Information

• Brand: GOODMAN
• Manufacturer Part Number: AMST48DU1300
• Country of Origin: United States of America

Technical Specifications

• Unit Type: Indoor Unit
• Product Line: AMST
• Operating Mode: Cooling & Heating
• System Capacity: 48,000 BTU, 4 Ton
• Cabinet Finish: Unpainted
• Configuration: Multi-position air handler
• Blower: 9-speed ECM blower
• Refrigerant Platform: R32
• Electrical: 208/230V, 1 phase, 60 Hz
• Electric Heat Code: 0 kW
• Cabinet Width: 24.5 in
• Nominal Capacity: 48,000 BTU
• Air Handler Family: Optimized for single-stage outdoor units up to 15.2 SEER2
• Brand & Model: AMST48DU1300 Goodman
• Application: Multi-Positional
• Amps: 5.7 Amps
• Hertz: 60 Hz
• Phase: Single Phase
• Voltage: 208/230 Volts
• Horsepower: 3/4 hp
• Mounting Style: Freestanding
• Plug Type: Hardwire
• Power Type: Electric
• Refrigerant Type: R-32
• Speeds: 9 Speed
• Total BTU: 48,000 BTU
• Type: Air Handlers
• Features: Made in America
• A2L Compatible: Yes
• BTU Cooling Rating: 48000 Btu/h
• Blower Type: Multi-Speed ECM
• Refrigerant: R-32
• Refrigeration Control Type: TXV
• SEER2 Range: 15.2 - 40.0
• Tonnage: 4 Ton
• Volts: 208/230V
