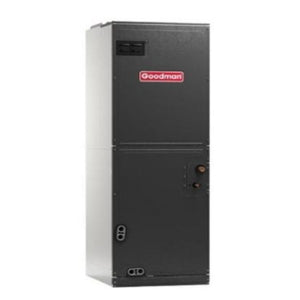

Goodman AMST42CU1400 AMST Series 3.5 Ton - Multi-Position - ECM - Air Handler

Product Description

The Goodman AMST42CU1400 is a multi-position, ECM-based air handler. This model has a capacity of three and a half tons. It is suitable for both cooling and heating applications. The design features an internal thermal expansion valve and is optimized for HVAC systems using R-410A refrigerant.

• Three and a half ton capacity for efficient climate control.
• Direct-drive, nine-speed ECM motor for tailored airflow.
• All-aluminum evaporator coil for durability and performance.

Product Highlights

This air handler meets high standards for energy efficiency and is designed for ease of installation in various configurations, including horizontal and vertical orientations.

Product Information

Standard Information

• Brand: Goodman
• MPN: AMST42CU1400

Technical Specifications

• Cooling Capacity: 42000 BTU/h
• Voltage Rating: 208/230 V
• Drain Connection: 3/4 inch
• Liquid Line Size: 3/8 inch
• Suction Line Size: 3/4 inch
• Cabinet Leakage: less than 2.0% at 1.0 inch H2O
• Length: 57.5 inches
• Width: 23 inches
• Height: 22 inches
