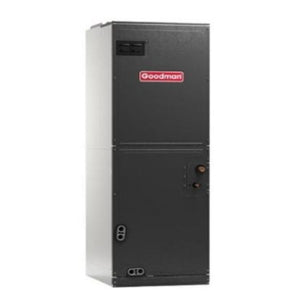

Goodman AMST24BU1400 AMST Series 2 Ton Multi-Position ECM Air Handler

Product Description

The Goodman AMST24BU1400 is a 2-ton, multi-position, ECM air handler designed for multi-speed operation. This unit features internal thermal expansion valves and is optimized for use with outdoor units up to fifteen point two SEER2. The unit is suitable for both cooling and heating applications.

• Internal factory-installed thermal expansion valves
• Multi-speed ECM blower motor for efficient airflow
• All-aluminum evaporator coil for superior heat transfer

Product Highlights

This unit is designed to enhance energy efficiency while providing reliable performance in both horizontal and vertical configurations.

Product Information

Standard Information

• Brand: Goodman
• MPN: AMST24BU1400

Technical Specifications

• Cooling Capacity: 24000 BtuH
• Voltage Rating: 208/230 V
• Drain Connection: 3/4 Inch
• Liquid Line Size: 3/8 Inch
• Suction Line Size: 3/4 Inch
• Cabinet Leakage: Less than 2.0% at 1.0 inch H2O
• Material: Galvanized steel construction
• Weight: 111 lbs
