Product Description

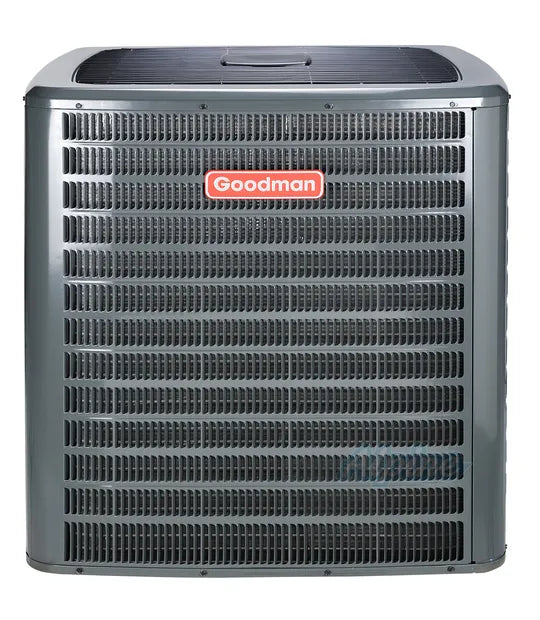

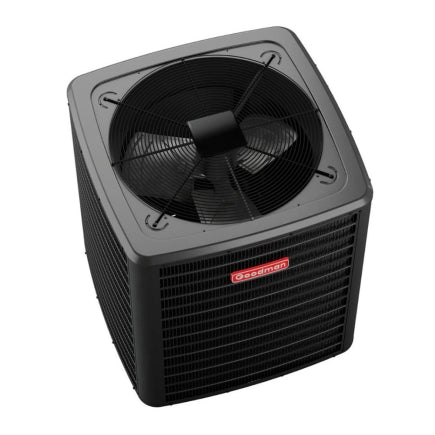

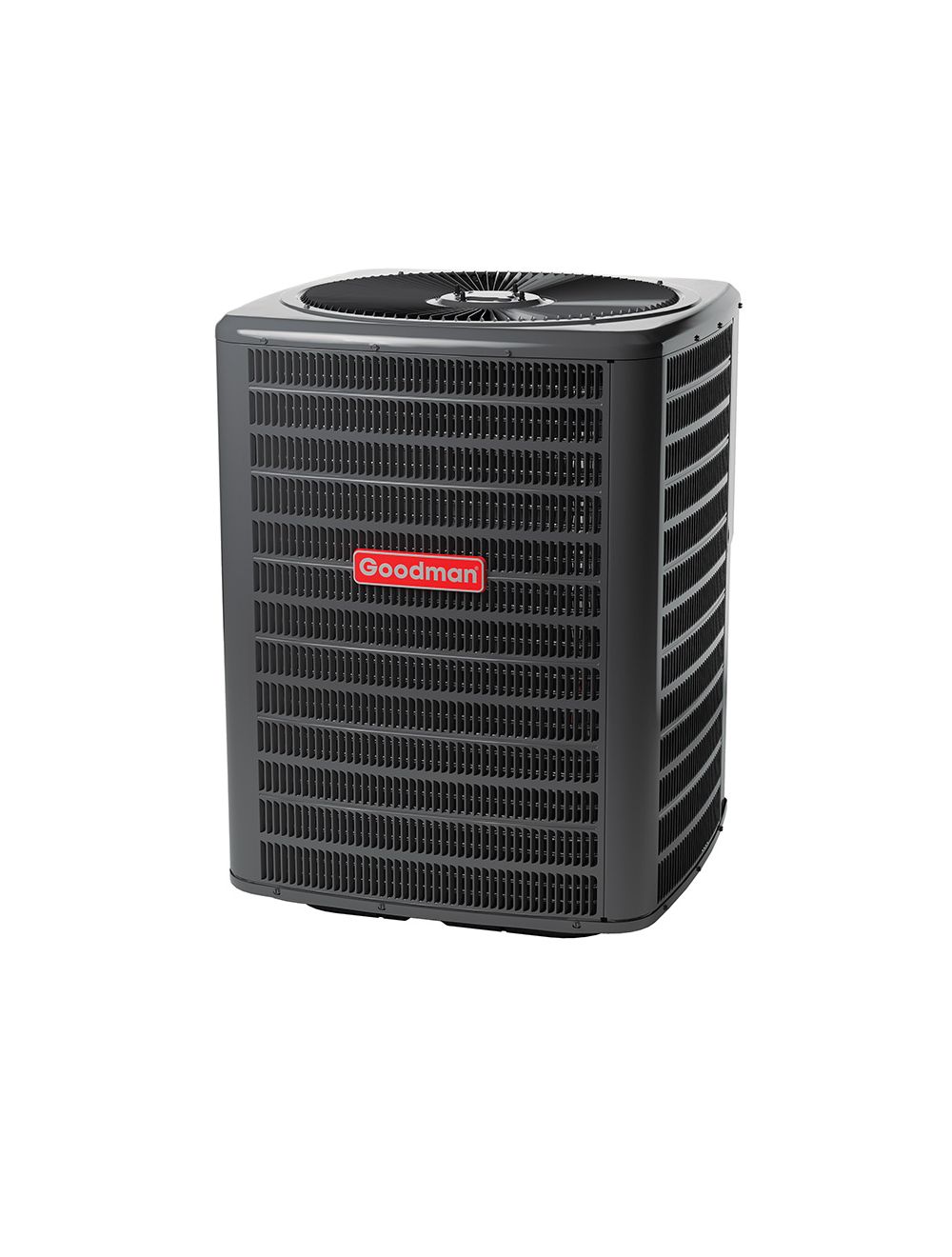

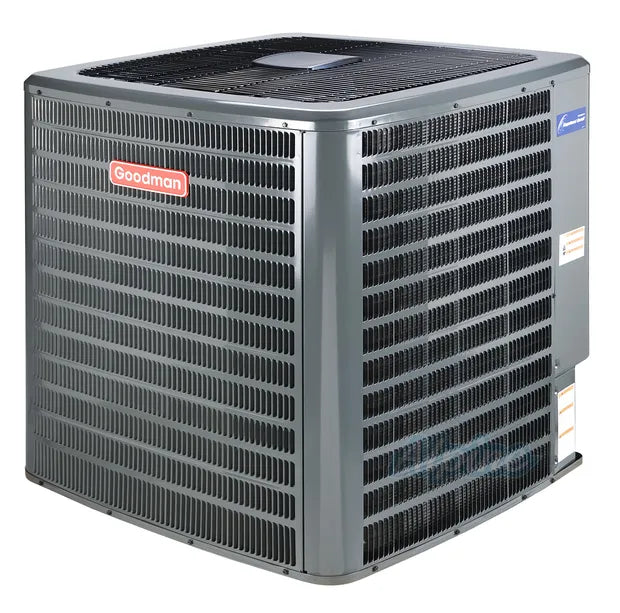

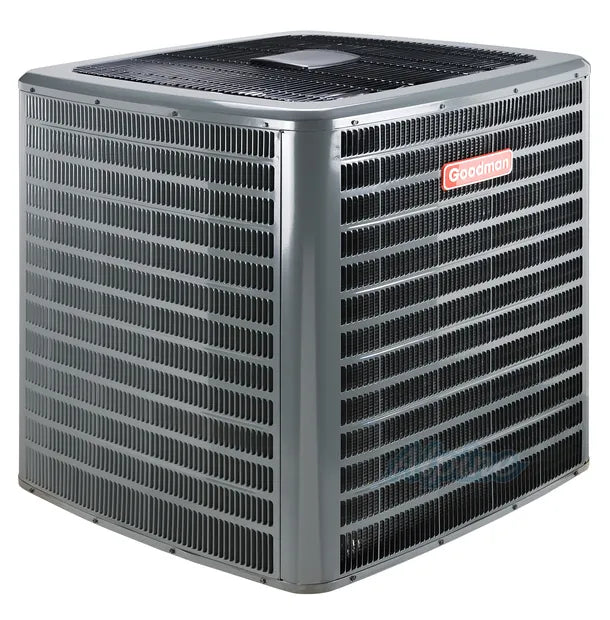

The GOODMAN alzt7ca3610 is a 3-ton, two-stage outdoor split heat pump rated at 17.2 SEER2 and 8.1 HSPF2, designed for ducted residential and multi-family installations. It operates on R-32 refrigerant and uses a two-stage scroll compressor paired with a multi-speed motor for efficient capacity modulation across varying load conditions. The unit features top-discharge airflow, communication compatibility with an Amana Brand smart thermostat, and is ENERGY STAR certified. It is produced in the United States and carries ISO certification. Licensed HVAC technicians handle installation and commissioning of this equipment.
This unit suits ducted split-system applications in residential and multi-family settings where high-efficiency heating and cooling performance is required. The heating operation range extends down to -20 degrees F ambient, making it viable in colder climates without auxiliary lockout at mild temperatures. The cooling operation range runs from 55 degrees F to 125 degrees F ambient. It ships as a single outdoor cabinet and pairs with a compatible indoor air handler or coil. Compatible accessory and component references from the manufacturer include ABK-20, CSR-U-1, CSR-U-2, FSK01A, OT18-60A, and TXV-FX-KX-3T.
Key Features
- 17.2 SEER2 and 8.1 HSPF2 efficiency ratings meet DOE regional compliance for all regions
- Two-stage scroll compressor enables capacity modulation for improved comfort and efficiency at part load
- R-32 refrigerant with factory charge of 129 oz and pre-charged line length of 15 feet
- Heating operation range down to -20 degrees F ambient enables cold-climate performance
- Integrated communication support for Amana Brand smart thermostat
- ENERGY STAR certified and ISO certified; produced in the United States
- Multi-speed outdoor fan motor with top-discharge configuration
Compatibility
The alzt7ca3610 is part of the ALZT7C series split heat pump lineup. Manufacturer-referenced compatible components include ABK-20, CSR-U-1, CSR-U-2, FSK01A, OT18-60A, and TXV-FX-KX-3T. Confirm indoor unit and coil compatibility using the manufacturer's current matchup tables before installation.
Installation Notes
Installation must be performed by a licensed HVAC technician holding the appropriate EPA Section 608 certification for handling refrigerants. De-energize the unit at the disconnect and confirm zero voltage before making any electrical or refrigerant connections. Line set sizing must comply with manufacturer specifications; maximum standard line set length is 150 feet horizontal and 80 feet vertical. Follow local mechanical codes and the current edition of the applicable refrigeration and electrical codes when sizing overcurrent protection and branch circuit conductors.
Technical Specifications
-
Tonnage: 3 ton
-
Rated Cooling Capacity: 34800 BTU/h
-
Rated Heating Capacity: 34400 BTU/h
-
Nominal Heating Capacity: 36000 BTU/h
-
SEER2: 17.2
-
EER2 (HSVTC): 12.5
-
HSPF2 (HSVTC): 8.1
-
Compressor Type: Two-stage scroll
-
Refrigerant Type: R-32
-
Factory Refrigerant Charge: 129 oz
-
Additional Refrigerant Charge: 0.58 lb per foot
-
Pre-Charged Line Length: 15 feet
-
Max Line Set Length (Horizontal): 150 feet
-
Max Line Set Length (Vertical): 80 feet
-
Power Voltage: 208/230 volts, 1-phase, 60 Hz
-
Minimum Circuit Amps: 20.8 A
-
Rated Load Amps: 14.6 A
-
Max Overcurrent Protection: 35 A
-
Liquid Line Size (O.D.): 3/8 inches
-
Suction Line Size (O.D.): 7/8 inches
-
Cooling Operation Range: 55 degrees F to 125 degrees F ambient
-
Heating Operation Range: -20 degrees F to 70 degrees F ambient
-
Sound Pressure (High, Cooling): 71 dBA
-
Unit Height: 35.5 inches
-
Unit Width: 35.5 inches
-
Unit Depth: 35.75 inches
-
Unit Weight: 262 pounds
-
Installation Type: Ducted, top discharge
-
Motor Speed Type: Multi-speed
-
Energy Source: Electric
-
DOE Regional Compliance: All regions
-
ENERGY STAR Certified: Yes
-
ISO Certified: Yes
-
Country of Origin: United States
-
Registered Parts Warranty (Residential): 10 years parts; compressor 10 years unit replacement
-
Registered Parts Warranty (Multi-Family): 10 years parts
-
Standard Parts Warranty (Commercial): 5 years parts
Standard Information
-
Brand: GOODMAN
-
Manufacturer Part Number: alzt7ca3610
