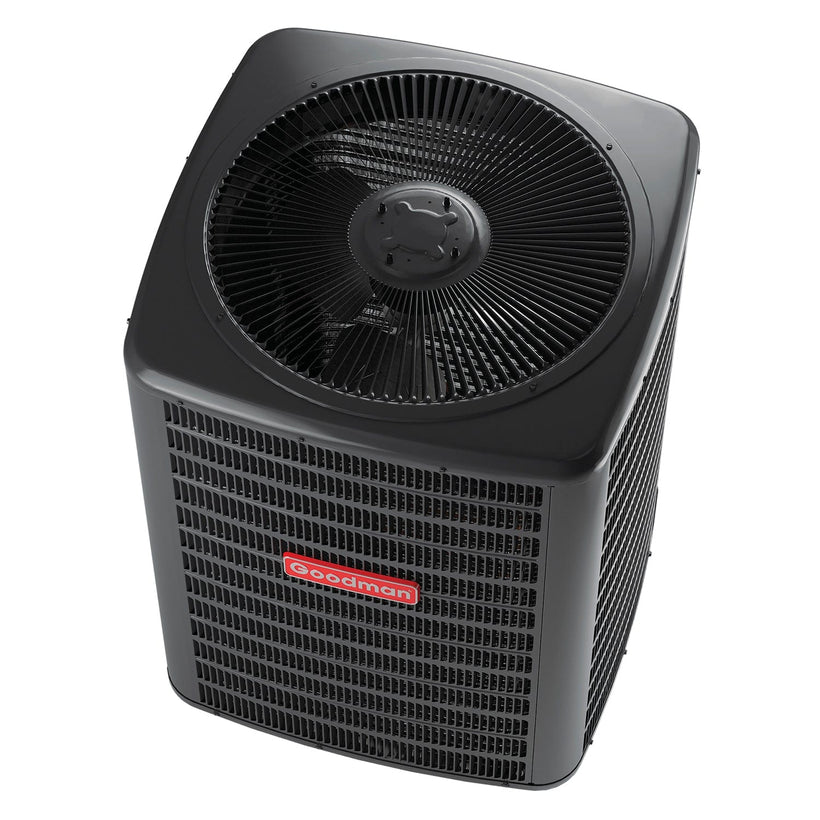

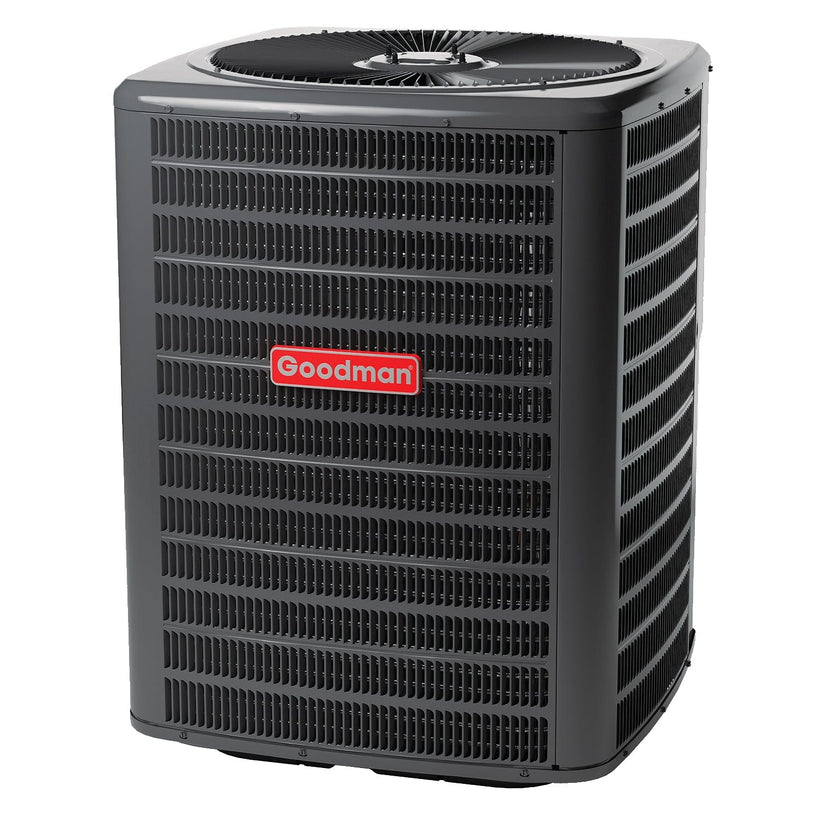

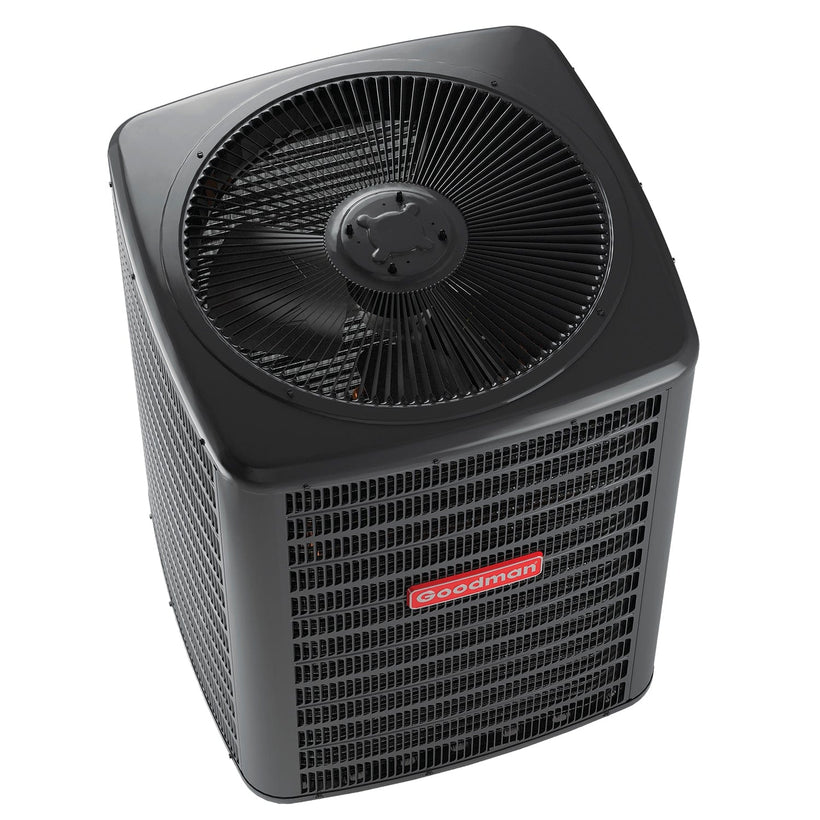

Goodman alzs5ba6010 Heat Pump 5 Ton 15.2 SEER2 R-32

Product Description

The Goodman alzs5ba6010 is a 5-ton, single-stage outdoor split heat pump rated at 15.2 SEER2 and designed for residential and light commercial forced-air systems. It operates on R-32 refrigerant and uses a scroll compressor to deliver 60,000 BTU/h nominal heating capacity and 57,000 BTU/h rated heating output. The unit runs on 208/230 volts single-phase power at 60 Hz, with a minimum circuit ampacity of 38.8 amps and a maximum overcurrent protection of 60 amps. Top-discharge airflow and a multi-speed motor support quiet, efficient operation at 74.8 dBA. Licensed HVAC technicians install and commission this system in accordance with local mechanical codes.

The alzs5ba6010 fits residential and multi-family split-system heat pump applications requiring a non-communicating, single-stage outdoor unit. It is rated for DOE regional compliance in all regions and carries ENERGY STAR certification. The unit operates in cooling mode between 55 degrees F and 125 degrees F ambient and in heating mode down to -20 degrees F, making it suitable for cold-climate residential installations. This model is part of the Amana ALZS5B series and is produced in the United States.

Key Features

• 15.2 SEER2 and 8.2 HSPF2 efficiency ratings for all-region DOE compliance
• R-32 refrigerant with factory charge of 185 oz and pre-charged line set length of 15 ft
• Single-stage scroll compressor with multi-speed fan motor
• Heating operation rated down to -20 degrees F ambient
• Non-communicating design for straightforward integration with standard thermostat controls
• ENERGY STAR certified and ISO certified; produced in the United States

Compatibility

Referenced component part numbers from the manufacturer include 0161R00128, ABK-20, CSR-U-2, CSR-U-3, FSK01A, OT18-60A, and TXV-FX-KX-5T. This unit is a non-communicating outdoor split heat pump and is compatible with matched indoor air handlers and coils rated for R-32 refrigerant at 5-ton capacity. Verify indoor unit compatibility using manufacturer expanded product data before installation.

Installation Notes

Installation must be performed by a licensed HVAC technician holding an EPA Section 608 certification for R-32 refrigerant handling. Disconnect and lock out all power to the system before making electrical or refrigerant connections. Follow the manufacturer line set guidelines: maximum line set length is 200 ft, maximum vertical separation is 79 ft, and additional refrigerant charge is required at 0.64 lb per foot beyond the pre-charged 15 ft. Observe local mechanical and electrical codes, including applicable sections of the NEC, for disconnect sizing and equipment clearances.

Technical Specifications

• Tonnage: 5 ton
• Heating Capacity (Nominal): 60,000 BTU/h
• Heating Capacity (Rated): 57,000 BTU/h
• SEER2: 15.2
• EER2: 12
• HSPF2: 8.2
• Refrigerant Type: R-32
• Factory Refrigerant Charge: 185 oz
• Additional Refrigerant Charge: 0.64 lb per ft
• Pre-Charged Line Length: 15 ft
• Max Line Set Length: 200 ft
• Max Vertical Line Set: 79 ft
• Voltage: 208/230 volts, 1-phase, 60 Hz
• Minimum Circuit Amps: 38.8 A
• Rated Load Amps: 30.2 A
• Max Overcurrent Protection: 60 A
• Compressor Type: Scroll, Single Stage
• Motor Speed Type: Multi-Speed
• Installation Configuration: Top Discharge
• Cooling Operation Range: 55 degrees F to 125 degrees F
• Heating Operation Range: -20 degrees F to 70 degrees F
• Sound Pressure (Cooling, High): 74.8 dBA
• Unit Height: 41.625 inches
• Unit Width: 35.5 inches
• Unit Depth: 35.5 inches
• Unit Weight: 309 pounds
• Liquid Pipe Size: 3/8 inch
• Gas Pipe Size: 1-1/8 inch
• Liquid Valve Size (O.D.): 3/8 inch
• Suction Valve Size (O.D.): 7/8 inch
• Residential Registered Parts Warranty: 10 years parts; compressor 10 years unit replacement
• Residential Standard Parts Warranty: 5 years parts
• Commercial Registered Parts Warranty: 5 years parts
• Multi-Family Registered Parts Warranty: 10 years parts
• Country of Origin: United States

Standard Information

• Brand: Goodman
• Manufacturer Part Number: alzs5ba6010
