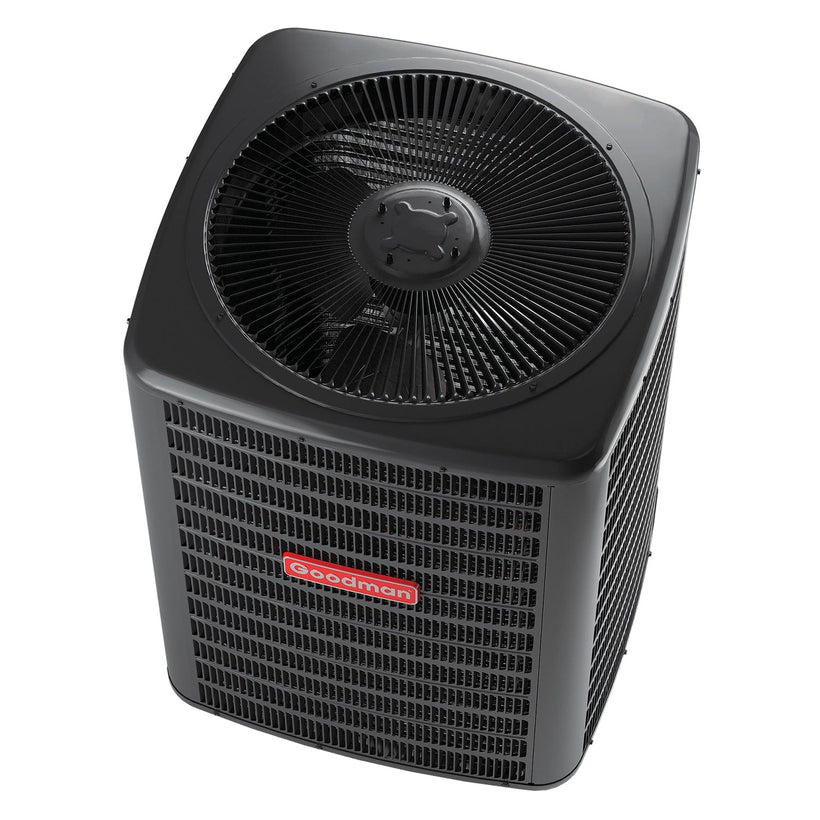

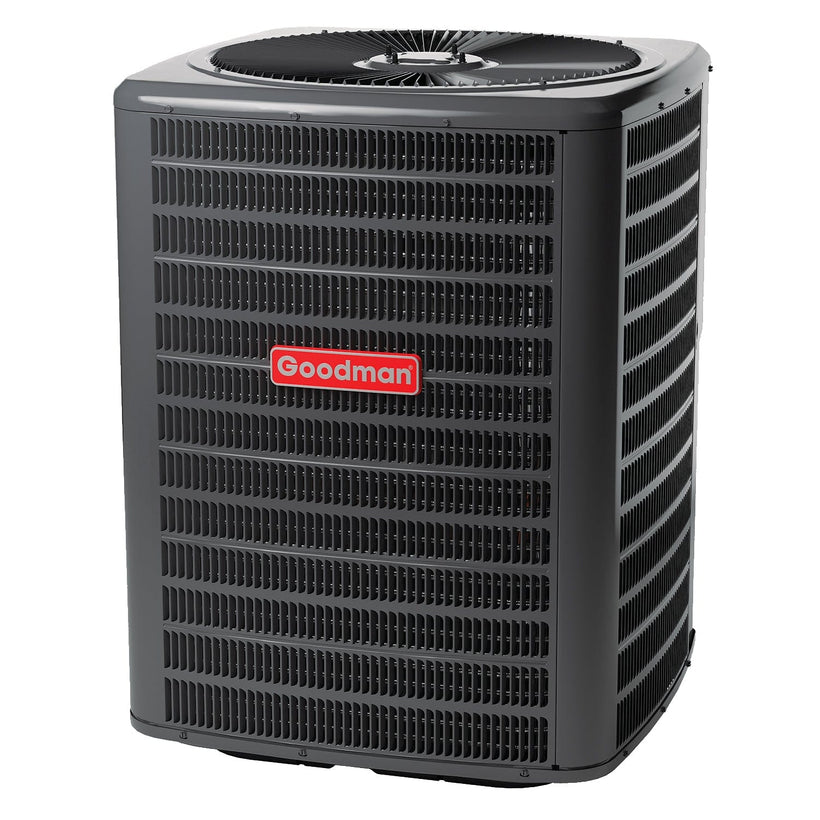

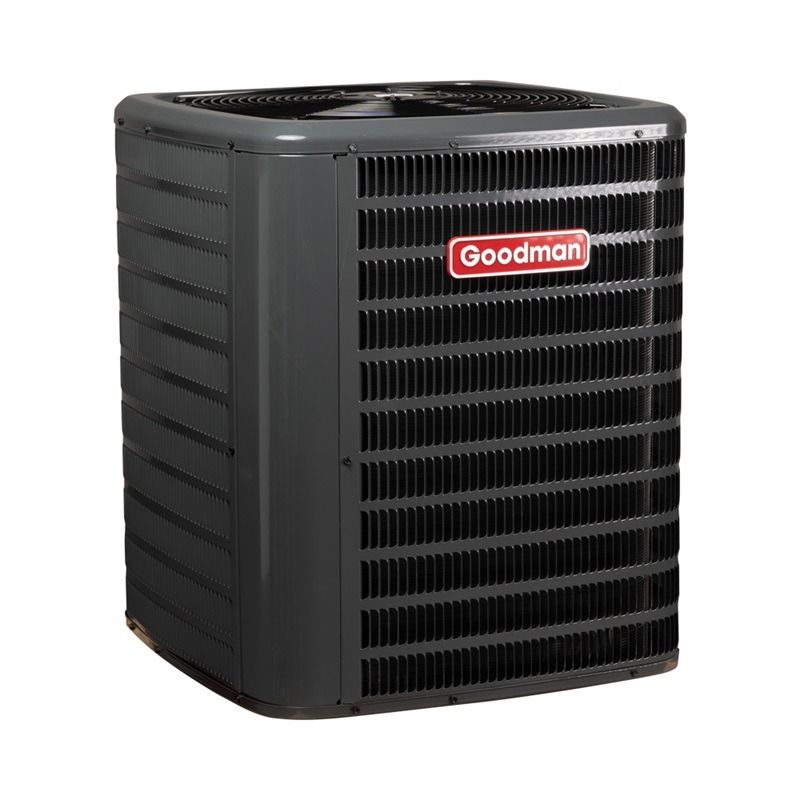

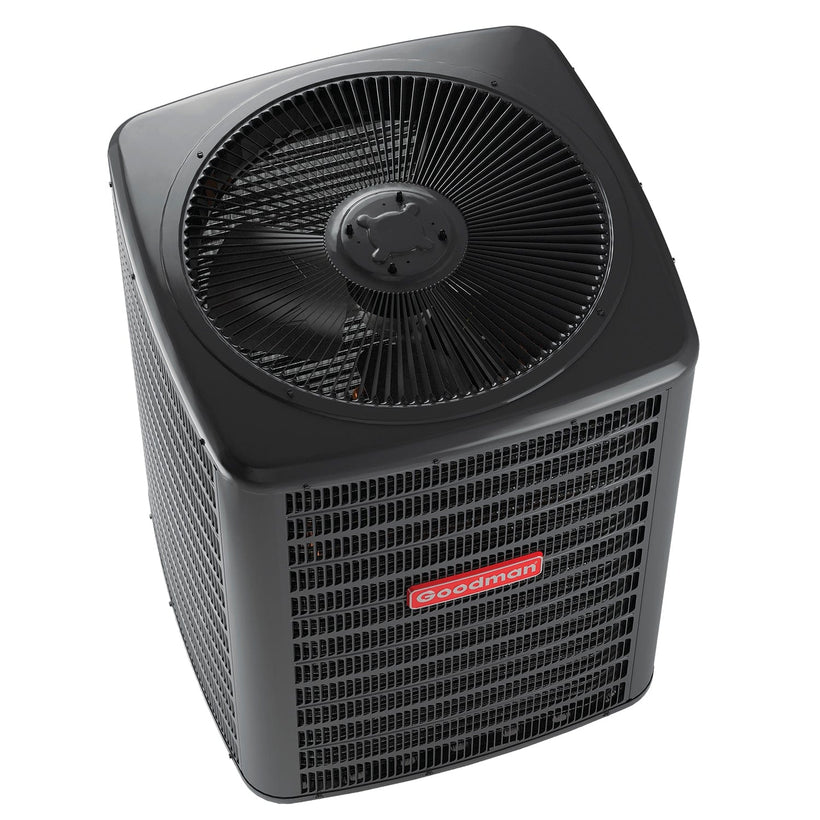

Goodman alzs5ba4810 Split Heat Pump 4 Ton 15.2 SEER2 R-32

Product Description

The Goodman alzs5ba4810 is a 4-ton, single-stage outdoor split heat pump designed for residential and light-commercial applications requiring a high-efficiency, non-communicating R-32 refrigerant system. Rated at 15.2 SEER2 and 7.8 HSPF2, this unit delivers 48,000 BTU/h nominal heating capacity and operates on a 208/230-volt, single-phase, 60 Hz power supply. The scroll compressor and top-discharge cabinet are factory pre-charged with R-32 refrigerant. It carries ENERGY STAR certification and meets DOE regional compliance requirements for all U.S. regions. Licensed HVAC technicians install this unit as the outdoor condensing component of a split-system heat pump.

This unit fits residential new-construction and replacement applications where a single-stage, non-communicating outdoor unit is required. The alzs5ba4810 is rated for cooling operation between 55 degrees F and 125 degrees F ambient and heating operation down to -20 degrees F, making it suitable for a wide range of climates. It supports standard line set lengths up to 200 feet horizontal and 79 feet vertical, with a factory refrigerant pre-charge covering the first 15 feet. Components referenced with this unit include 0161R00128, ABK-20, CSR-U-2, CSR-U-3, FSK01A, OT18-60A, and TXV-FX-KX-5T.

Key Features

• 15.2 SEER2 and 7.8 HSPF2 efficiency ratings meet or exceed current DOE standards for all U.S. regions
• R-32 refrigerant with factory charge of 174 oz; additional charge rate of 0.64 lb per foot beyond pre-charged length
• Single-stage scroll compressor with single-speed motor for straightforward installation and servicing
• Heating operation down to -20 degrees F ambient suits cold-climate installations
• Top-discharge configuration reduces recirculation in tight equipment clearances
• ENERGY STAR certified and ISO certified; manufactured in the United States

Compatibility

Designed as an OEM outdoor unit for split heat pump systems within the Amana ALZS5B series. Referenced component part numbers for use with this unit include 0161R00128, ABK-20, CSR-U-2, CSR-U-3, FSK01A, OT18-60A, and TXV-FX-KX-5T. Consult Goodman or Amana AHU matchup tables to confirm a rated indoor unit pairing before installation.

Installation Notes

Installation must be performed by a licensed HVAC technician holding an EPA Section 608 certification, as this system uses R-32 flammable refrigerant requiring proper handling procedures. Disconnect and lock out all electrical power before making refrigerant or electrical connections; verify minimum circuit ampacity of 28.3 A and a maximum overcurrent protection device of 45 A per NEC requirements. Use the specified liquid line size of 3/8 inch O.D. and suction line of 7/8 inch O.D. valve connections; do not exceed the 200-foot maximum standard line set length. Follow local mechanical and electrical codes and the manufacturer installation instructions for refrigerant line evacuation, leak testing, and startup procedures.

Technical Specifications

• Cooling Capacity (Nominal): 48000 BTU/h
• Heating Capacity (Nominal): 48000 BTU/h
• Heating Capacity (Rated): 46000 BTU/h
• SEER2: 15.2
• EER2 (HSVTC): 12.5
• HSPF2 (HSVTC): 7.8
• Tonnage: 4 ton
• Refrigerant Type: R-32
• Factory Refrigerant Charge: 174 oz
• Additional Refrigerant Charge: 0.64 lb per foot
• Pre-Charged Line Length: 15 feet
• Power Supply: 208/230 volts, 1-phase, 60 Hz
• Minimum Circuit Amps: 28.3 A
• Rated Load Amps: 21.6 A
• Max Overcurrent Protection: 45 A
• Compressor Type: Scroll, Single Stage
• Motor Speed: Single Speed
• Unit Height: 36.5 inches
• Unit Width: 35.5 inches
• Unit Depth: 35.5 inches
• Unit Weight: 264 pounds
• Sound Pressure (Cooling High): 73.6 dBA
• Liquid Pipe Size: 3/8 inch
• Gas Pipe Size: 1-1/8 inch
• Valve Size Liquid (O.D.): 3/8 inch
• Valve Size Suction (O.D.): 7/8 inch
• Max Line Set Length (Horizontal): 200 feet
• Max Line Set Length (Vertical): 79 feet
• Cooling Operation Range: 55 degrees F to 125 degrees F
• Heating Operation Range: -20 degrees F to 70 degrees F
• Installation Configuration: Top Discharge
• Communication Type: Non-Communicating
• DOE Regional Compliance: All Regions
• ENERGY STAR Certified: Yes
• ISO Certified: Yes
• Country of Origin: United States
• Residential Registered Parts Warranty: 10 years all parts; 10 years compressor
• Residential Registered Unit Replacement Warranty: 10 years compressor
• Standard Parts Warranty (Residential): 5 years all parts
• Commercial Parts Warranty: 5 years all parts

Standard Information

• Brand: Goodman
• Manufacturer Part Number: alzs5ba4810
