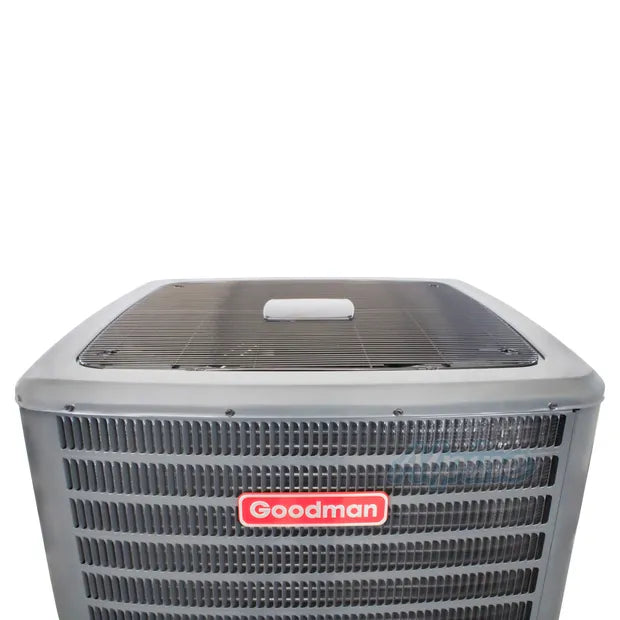

Goodman alzs5ba3610 Split Heat Pump 15.2 SEER2 3 Ton

Product Description

The GOODMAN alzs5ba3610 is a 3-ton, single-stage outdoor split heat pump designed for residential and light-commercial ducted systems using R-32 refrigerant. Rated at 15.2 SEER2 and 7.8 HSPF2, it delivers both cooling and heating in a single outdoor cabinet with a top-discharge configuration. The unit runs on 208/230 volts single-phase power at 60 Hz and carries an ENERGY STAR certification. A scroll compressor and single-speed motor keep the design straightforward for service technicians. Cooling and heating nominal capacity is 36,000 BTU/h. This unit is produced in the United States and meets DOE regional compliance requirements for all U.S. regions.

The alzs5ba3610 is intended for ducted split-system installations where a non-communicating, single-stage outdoor unit is specified. It pairs with a compatible indoor air handler or coil to form a complete split heat pump system. The unit operates across a wide ambient range, handling cooling from 55 degrees F up to 125 degrees F and heating down to -20 degrees F, making it suitable for climates with cold winters. Licensed HVAC technicians typically install this unit as part of a new system installation or an outdoor unit replacement on an existing ducted system.

Key Features

• 15.2 SEER2 / 7.8 HSPF2 efficiency ratings meeting ENERGY STAR certification requirements
• Single-stage scroll compressor for reliable, straightforward operation and serviceability
• R-32 refrigerant with factory charge of 95 oz and pre-charged line length of 15 ft
• Wide heating operation range down to -20 degrees F ambient
• Top-discharge cabinet design with 71.1 dBA sound pressure level during cooling operation
• Non-communicating controls compatible with standard thermostat wiring configurations
• Produced in the United States with ISO certification

Compatibility

Designed as an OEM outdoor split heat pump unit within the Amana ALZS5B series. Component product references listed in manufacturer data include 0161R00128, ABK-20, CSR-U-1, FSK01A, OT18-60A, and TXV-FX-KX-3T. Verify indoor unit compatibility with manufacturer expanded ratings data before installation.

Installation Notes

Installation must be performed by a licensed HVAC technician holding an EPA Section 608 certification for handling refrigerants. Disconnect and lock out all power at the disconnect box before making any electrical or refrigerant connections. Liquid line pipe size is 3/8 inch and suction line pipe size is 7/8 inch; verify line set sizing against the standard maximum line set length of 200 ft and maximum vertical run of 79 ft before routing. Consult local mechanical codes and the manufacturer installation instructions for slab or pad mounting requirements, clearance minimums, and electrical rough-in specifications including the 40-amp maximum overcurrent protection and 24-amp minimum circuit ampacity.

Technical Specifications

• Cooling Capacity (Nominal): 36,000 BTU/h
• Heating Capacity (Nominal): 36,000 BTU/h
• Heating Capacity (Rated): 35,000 BTU/h
• SEER2: 15.2
• EER2 (HSVTC): 12.5
• HSPF2: 7.8
• Tonnage: 3 tons
• Voltage: 208/230 volts, 1-phase, 60 Hz
• Rated Load Amps: 18.4 amps
• Minimum Circuit Amps: 24 amps
• Maximum Overcurrent Protection: 40 amps
• Compressor Type: Scroll, Single Stage
• Refrigerant Type: R-32
• Factory Refrigerant Charge: 95 oz
• Additional Refrigerant Charge: 0.58 lb per foot
• Pre-Charged Line Length: 15 ft
• Max Line Set Length: 200 ft
• Max Vertical Line Set: 79 ft
• Liquid Pipe Size: 3/8 inch
• Gas Pipe Size: 7/8 inch
• Cooling Operation Range: 55 degrees F to 125 degrees F
• Heating Operation Range: -20 degrees F to 70 degrees F
• Sound Pressure Level (Cooling): 71.1 dBA
• Unit Height: 39.5 inches
• Unit Width: 35.5 inches
• Unit Depth: 35.5 inches
• Weight: 222 pounds
• Discharge Configuration: Top Discharge
• DOE Regional Compliance: All Regions
• ENERGY STAR Certified: Yes
• ISO Certified: Yes
• Country of Origin: United States
• Residential Registered Parts Warranty: 10 years all parts; 10 years compressor
• Residential Registered Unit Replacement Warranty: 10 years compressor
• Standard Parts Warranty (Residential): 5 years all parts
• Commercial Parts Warranty: 5 years all parts

Standard Information

• Brand: GOODMAN
• Manufacturer Part Number: alzs5ba3610
