Goodman alzs4ba4210 Heat Pump 3.5 Ton 14.3 SEER2 R-32

Product Description

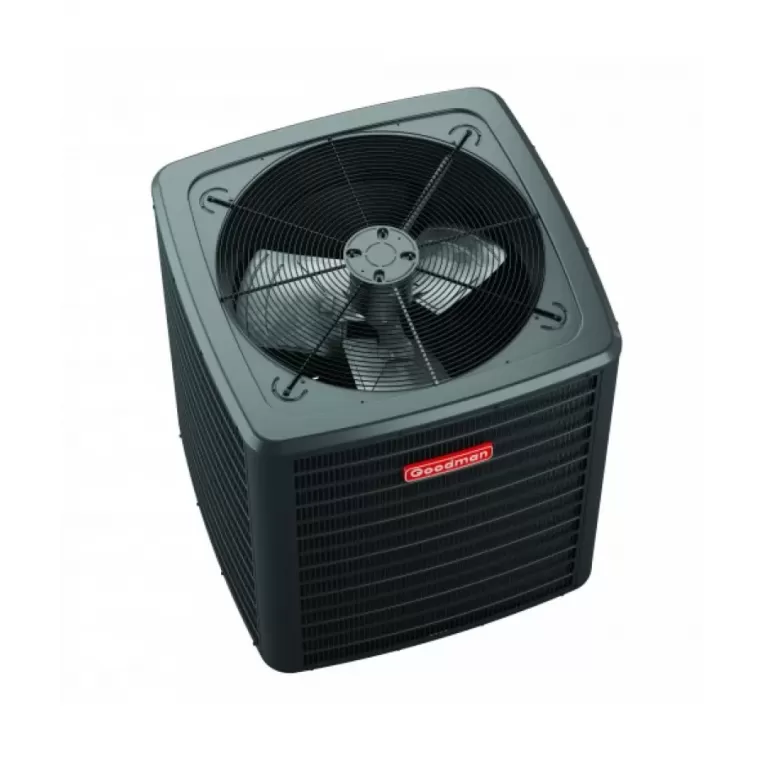

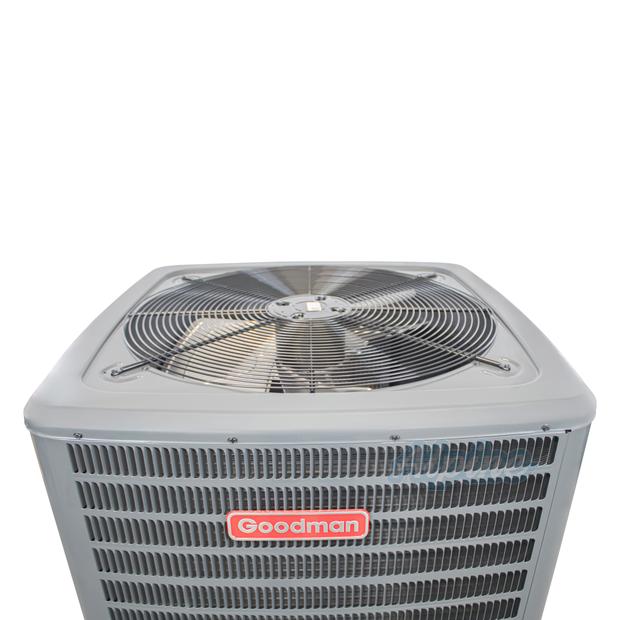

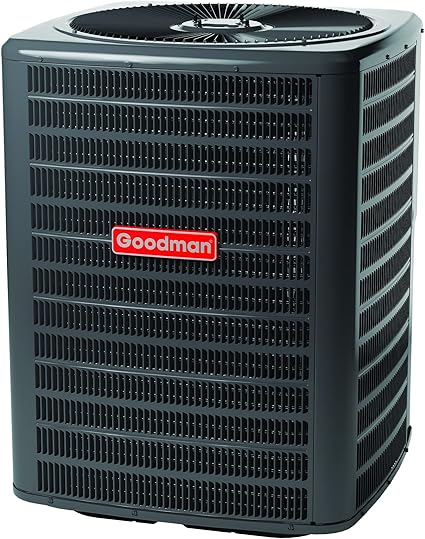

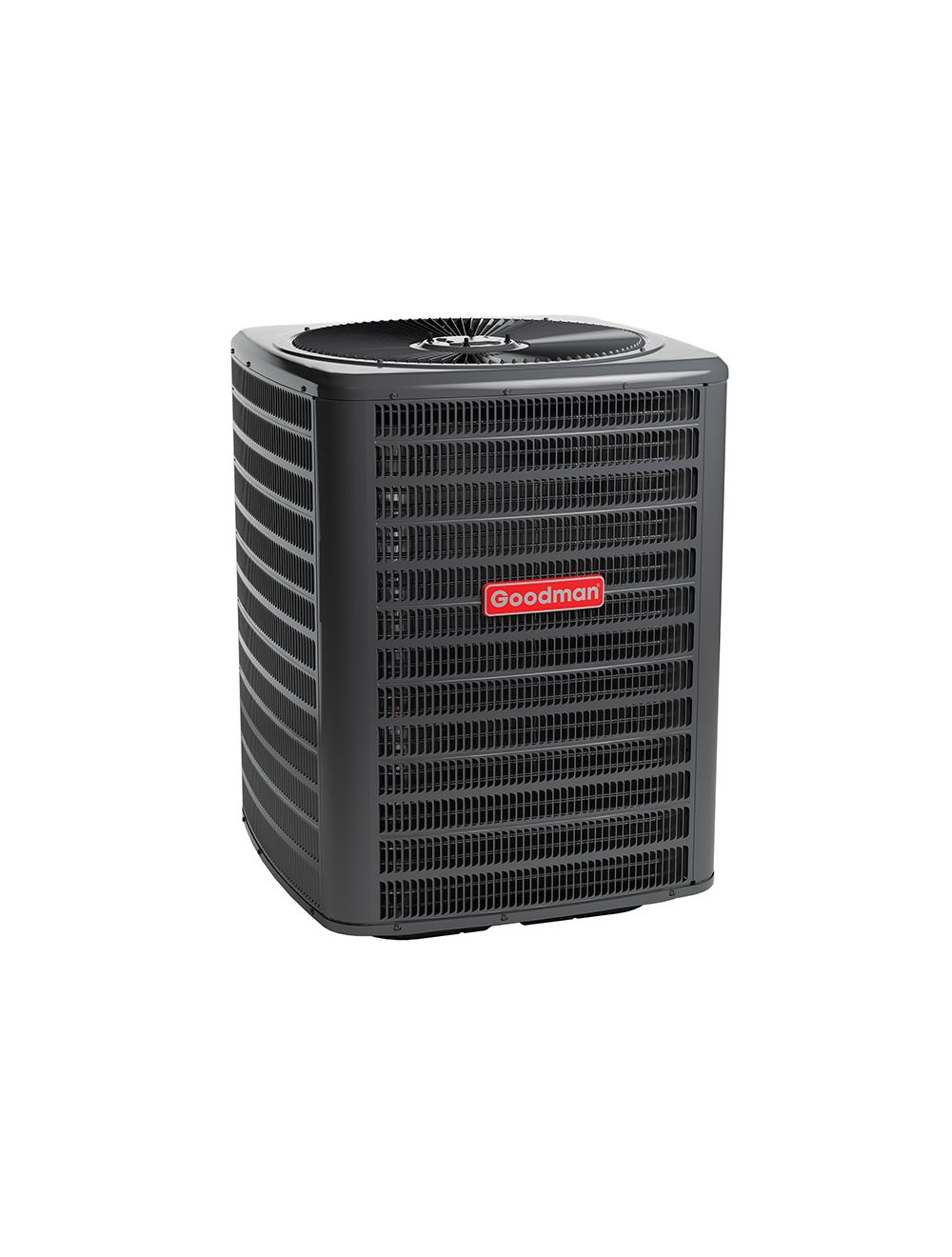

The GOODMAN alzs4ba4210 is a 3.5-ton, single-stage split heat pump condensing unit rated at 14.3 SEER2 and designed for ducted residential and light commercial applications. It uses R-32 refrigerant and houses a single-speed scroll compressor in a top-discharge outdoor cabinet. Rated cooling capacity is 40,500 BTU/h and rated heating capacity is 39,500 BTU/h. The unit carries an EER2 of 12.5 and an HSPF2 of 7.8 under HSVTC conditions. It operates on 208/230 volts, single phase, 60 Hz, with a minimum circuit ampacity of 19.3 amps and a maximum overcurrent protection of 30 amps. Licensed HVAC technicians install and commission this unit as the outdoor half of a split heat pump system.

This condensing unit is suited for ducted split heat pump installations in residential, multi-family, and light commercial buildings. It meets DOE regional compliance for all climate regions, making it a viable choice across a wide geographic footprint. The heating operation range extends down to -20 degrees F ambient, which supports cold-climate installations where supplemental heat staging may still be required. The cooling operation range runs from 55 degrees F to 125 degrees F ambient. ISO certification is confirmed for this unit. Compatible accessory and component references from the manufacturer include ABK-20, ASC01A, CSR-U-2, FSK01A, LSK02A, and OT18-60A.

Key Features

• 14.3 SEER2 efficiency rating with DOE compliance for all regions
• Single-stage scroll compressor with single-speed motor for straightforward control wiring
• R-32 refrigerant with factory charge of 139 oz and pre-charged line set length of 15 feet
• Cold-climate capable heating operation down to -20 degrees F ambient
• Top-discharge cabinet design supports standard clearance and airflow requirements
• Non-communicating controls interface for compatibility with conventional low-voltage thermostats and air handlers
• Produced in the United States; ISO certified

Compatibility

Designed for use in ducted split heat pump systems. Manufacturer-listed accessory and component references for this unit include ABK-20, ASC01A, CSR-U-2, FSK01A, LSK02A, and OT18-60A. Non-communicating wiring configuration is compatible with standard low-voltage thermostats and non-communicating air handler controls. Consult the manufacturer installation instructions for matched indoor unit selection and line set sizing requirements.

Installation Notes

Installation must be performed by a licensed HVAC technician holding the appropriate EPA Section 608 certification for R-32 refrigerant handling. Disconnect and lock out all power at the electrical panel before making any wiring connections. Maximum line set length is 200 feet horizontally and 79 feet vertically; additional refrigerant charge is required at 0.64 pounds per foot beyond the factory pre-charged length of 15 feet. Follow applicable local mechanical codes and NEC requirements for disconnect sizing, wire gauge, and outdoor unit placement clearances.

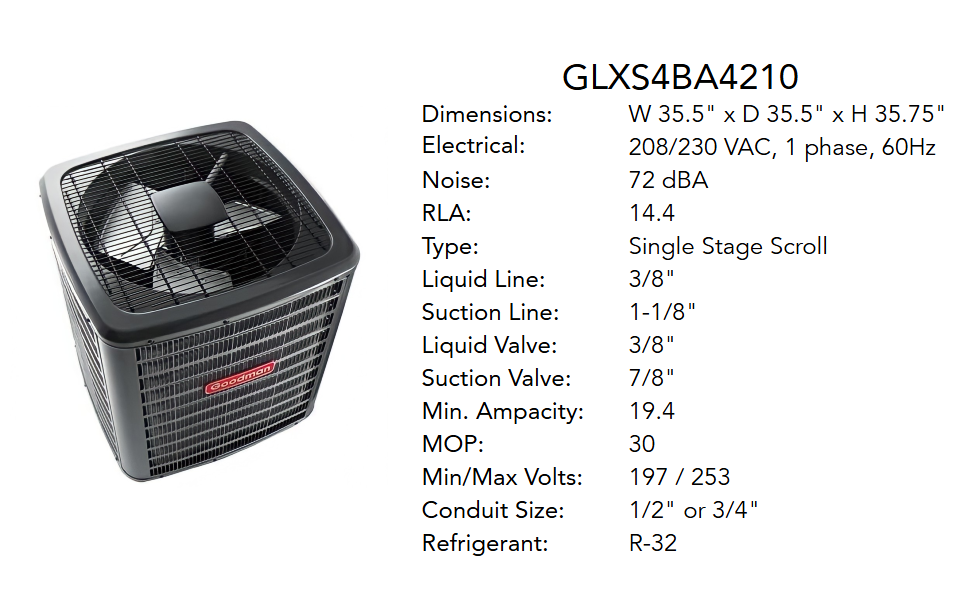

Technical Specifications

• Tonnage: 3.5 tons
• Cooling Capacity (Rated): 40,500 BTU/h
• Heating Capacity (Rated): 39,500 BTU/h
• Heating Capacity (Nominal): 42,000 BTU/h
• SEER2: 14.3
• EER2 (HSVTC): 12.5
• HSPF2 (HSVTC): 7.8
• HSPF Ducted: 15.2
• Power Voltage: 208/230 volts
• Power Phase: Single phase
• Power Frequency: 60 Hz
• Minimum Circuit Amps: 19.3 amps
• Rated Load Amps: 14.4 amps
• Maximum Overcurrent Protection: 30 amps
• Compressor Type: Scroll, single stage
• Motor Speed: Single speed
• Refrigerant Type: R-32
• Factory Refrigerant Charge: 139 oz
• Additional Refrigerant Charge: 0.64 pounds per foot
• Pre-Charged Line Set Length: 15 feet
• Max Line Set Length (Horizontal): 200 feet
• Max Line Set Length (Vertical): 79 feet
• Liquid Pipe Size: 3/8 inches
• Gas Pipe Size: 1-1/8 inches
• Liquid Valve Size (O.D.): 3/8 inches
• Suction Valve Size (O.D.): 7/8 inches
• Cooling Operation Range: 55 degrees F to 125 degrees F
• Heating Operation Range: -20 degrees F to 70 degrees F
• Sound Pressure (Cooling, High): 71 dBA
• Unit Height: 35.75 inches
• Unit Width: 35.5 inches
• Unit Depth: 35.5 inches
• Unit Weight: 262 pounds
• Installation Type: Ducted, top discharge
• Communication Type: Non-communicating
• DOE Regional Compliance: All regions
• ISO Certified: Yes
• Country of Origin: United States
• Residential Parts Warranty (Registered): 10 years all parts
• Residential Parts Warranty (Standard): 5 years all parts
• Commercial Parts Warranty: 5 years all parts

Standard Information

• Brand: GOODMAN
• Manufacturer Part Number: alzs4ba4210
