Goodman alzs4ba2410 2 Ton 14.3 SEER2 Split Heat Pump R-32

Product Description

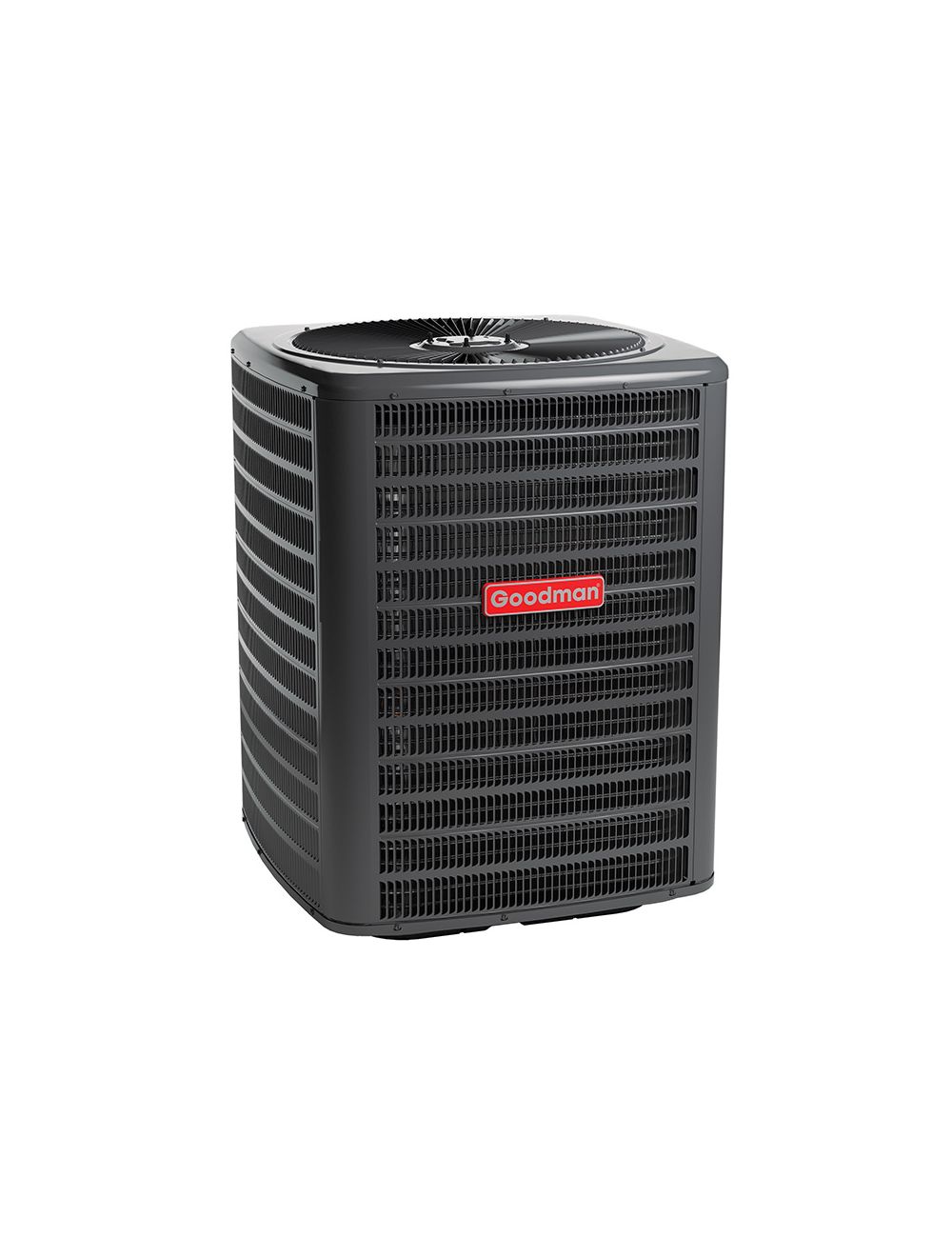

The Goodman alzs4ba2410 is a 2-ton, single-stage outdoor heat pump condensing unit designed for ducted residential and light commercial split systems. It operates on R-32 refrigerant and achieves a 14.3 SEER2 efficiency rating, with an EER2 of 12.5 and an HSPF2 of 7.8. The unit uses a standard scroll compressor with a top-discharge configuration and is rated at 23,800 BTU/h cooling capacity and 22,000 BTU/h heating capacity. It ships pre-charged with 70 ounces of R-32 refrigerant. Licensed HVAC technicians install this unit as the outdoor half of a split heat pump system paired with a compatible air handler or coil.

The alzs4ba2410 is suited for ducted residential and multi-family applications requiring non-communicating heat pump equipment. It carries DOE regional compliance for all U.S. climate zones and is manufactured in the United States. The unit operates across a rated cooling ambient range of 55 degrees F to 125 degrees F and a rated heating ambient range of -20 degrees F to 70 degrees F, making it appropriate for a wide range of climates. Compatible accessory references noted in the product data include ABK-20, ASC01A, CSR-U-1, FSK01A, LSK02A, and OT18-60A.

Key Features

• 14.3 SEER2 efficiency rating with EER2 of 12.5 and HSPF2 of 7.8
• R-32 refrigerant system, factory pre-charged to 70 ounces
• Single-stage scroll compressor with single-speed motor

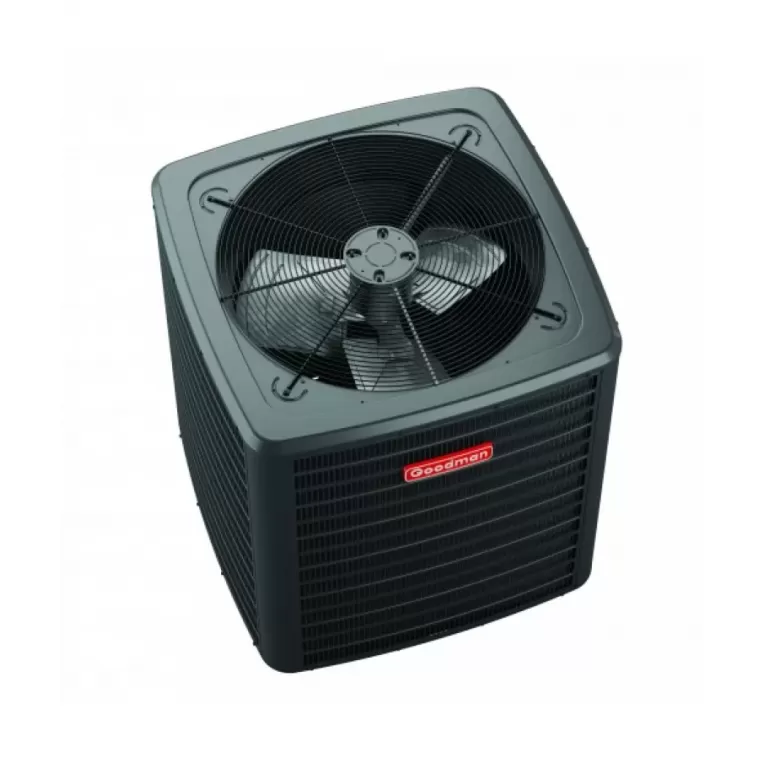

• Top-discharge configuration for standard outdoor installation
• Rated heating operation down to -20 degrees F ambient
• Non-communicating design compatible with standard thermostat control systems
• Produced in the United States; ISO certified manufacturing

Compatibility

Designed as a non-communicating outdoor split heat pump condensing unit for use in ducted systems. Compatible accessory references provided in product documentation include ABK-20, ASC01A, CSR-U-1, FSK01A, LSK02A, and OT18-60A. No additional specific indoor unit or coil compatibility data was provided in the source data; consult Goodman system matching guides to confirm indoor unit pairing.

Installation Notes

Installation must be performed by a licensed HVAC technician holding the appropriate EPA Section 608 certification for handling R-32 refrigerant. Disconnect and lock out all power to the system before making any electrical or refrigerant connections. The pre-charged line set length is 15 feet; additional refrigerant charge is required at a rate of 0.55 pounds per foot beyond that length, up to the maximum line set of 200 feet. Follow local mechanical codes and the manufacturer installation instructions for pad placement, electrical service sizing, and brazing procedures on the 3/8-inch liquid and 3/4-inch suction line connections.

Technical Specifications

• Cooling Capacity (Rated): 23,800 BTU/h
• Heating Capacity (Rated): 22,000 BTU/h
• Heating Capacity (Nominal): 24,000 BTU/h
• Tonnage: 2 tons
• SEER2: 14.3
• EER2 (HSVTC): 12.5
• HSPF2 (HSVTC): 7.8
• Power Voltage: 208/230 volts, 1-phase, 60 Hz
• Rated Load Amps: 10.2 A
• Minimum Circuit Amps: 13.8 A
• Maximum Overcurrent Protection: 20 A
• Compressor Type: Single-stage scroll
• Refrigerant Type: R-32
• Factory Refrigerant Charge: 70 oz
• Additional Charge Rate: 0.55 pounds per foot
• Pre-Charged Line Length: 15 feet
• Maximum Line Set Length: 200 feet
• Maximum Vertical Line Set: 79 feet
• Liquid Line Size: 3/8 inches
• Suction Line Size: 3/4 inches
• Cooling Operating Range: 55 degrees F to 125 degrees F ambient
• Heating Operating Range: -20 degrees F to 70 degrees F ambient
• Sound Pressure (Cooling, High): 68 dBA
• Unit Height: 32.5 inches
• Unit Width: 29 inches
• Unit Depth: 29 inches
• Unit Weight: 160 pounds
• Installation Type: Ducted, top discharge
• Communication Type: Non-communicating
• DOE Regional Compliance: All regions
• ISO Certified: Yes
• Country of Origin: United States
• Residential Parts Warranty (Registered): 10 years all parts
• Residential Parts Warranty (Standard): 5 years all parts
• Commercial Parts Warranty: 5 years all parts

Standard Information

• Brand: Goodman
• Manufacturer Part Number: alzs4ba2410
