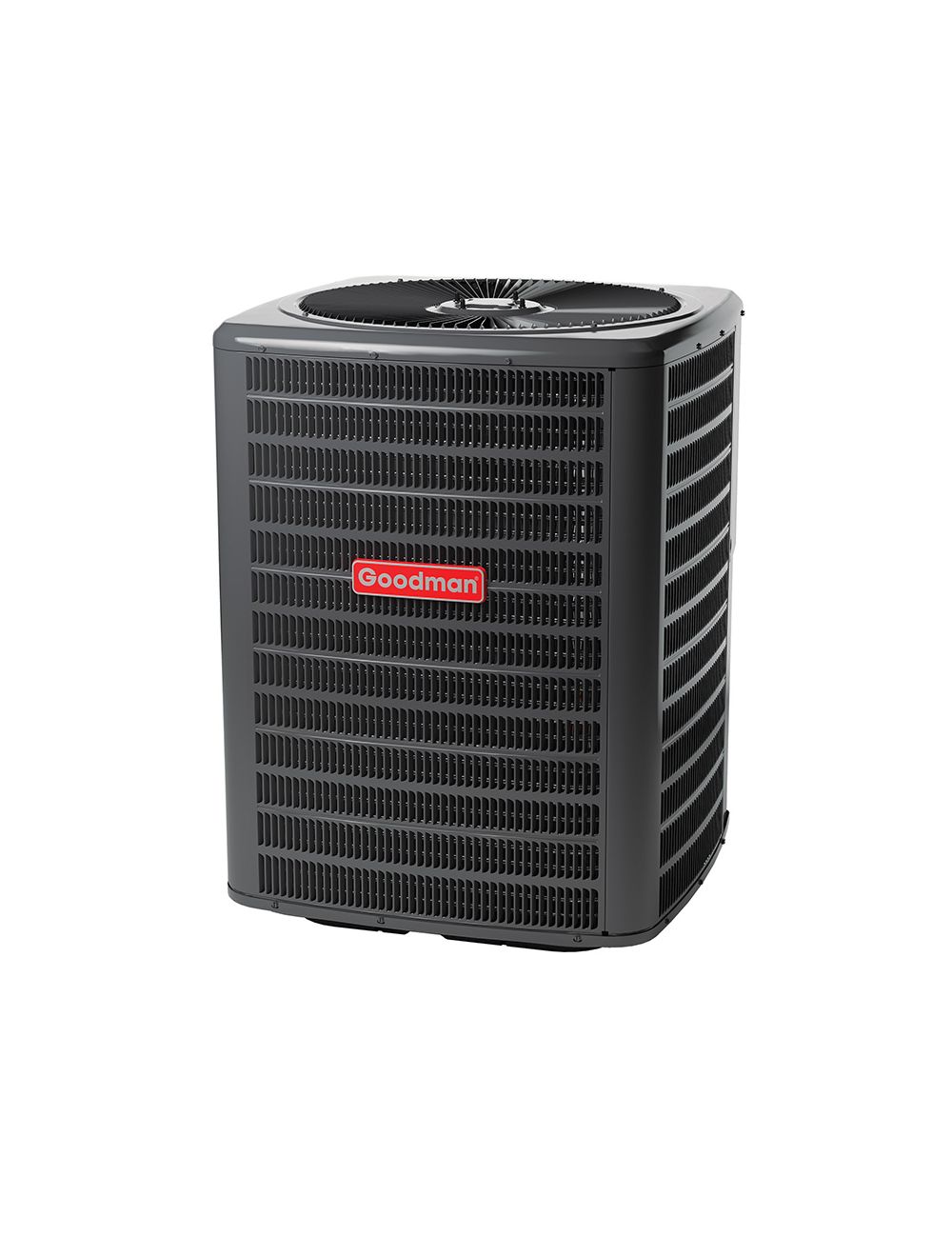

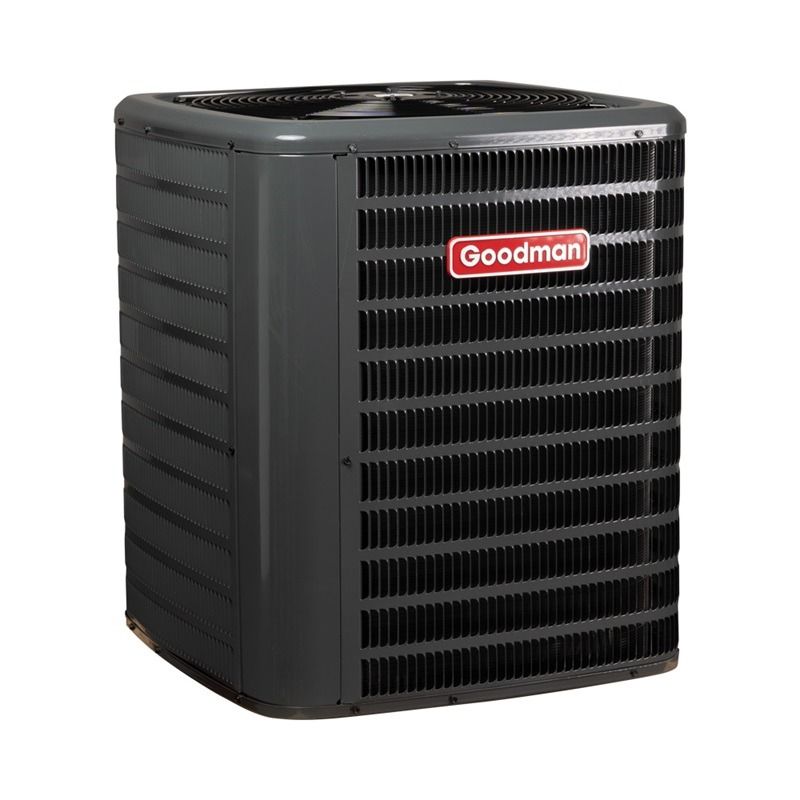

Goodman alxs5ba3010 Air Conditioner 15.2 SEER2 2.5 Ton R-32

Product Description

The Goodman alxs5ba3010 is a 2.5-ton, single-stage outdoor condensing unit designed for split-system residential and light-commercial cooling applications. It operates on R-32 refrigerant and is rated at 15.2 SEER2, meeting DOE regional compliance standards nationwide. The unit uses a scroll compressor running at single speed and discharges air from the top. Manufactured in the United States, it runs on 208/230-volt single-phase, 60 Hz power with a minimum circuit ampacity of 15.4 amps and a maximum overcurrent protection rating of 25 amps. Licensed HVAC technicians install and commission this unit as part of a split cooling system paired with a compatible indoor air handler or coil.

The alxs5ba3010 is built for residential and multi-family cooling installations where a non-communicating, top-discharge outdoor condenser is required. It operates within a cooling ambient range of 55 degrees F to 115 degrees F and ships with an 87-ounce factory refrigerant charge of R-32. The unit is suited for new construction or direct replacement applications in single-phase residential systems. It is part of the ALXS5B series and carries active release status. Compatible indoor coils and accessories listed in the component product reference include part numbers 0130M00106, 0130R00000S, 0161R00128, 0163R00006, ABK-20, ASC01A, CSR-U-1, FSK01A, LAKT01, and LSK02A.

Key Features

• 15.2 SEER2 efficiency rating with DOE compliance for all U.S. regions
• R-32 refrigerant with 87-ounce factory charge and 15-foot pre-charged line length
• Single-stage scroll compressor with single-speed motor for reliable cooling operation
• Top-discharge airflow configuration for standard residential outdoor placement
• Sound pressure level of 71.1 dBA during cooling operation
• Produced in the United States; registered residential warranty covers 10 years on all parts and compressor unit replacement

Compatibility

Compatible component product references provided by the manufacturer include part numbers 0130M00106, 0130R00000S, 0161R00128, 0163R00006, ABK-20, ASC01A, CSR-U-1, FSK01A, LAKT01, and LSK02A. This unit is non-communicating and is designed to pair with standard residential indoor coil and air handler configurations.

Installation Notes

Installation must be performed by a licensed HVAC technician holding the appropriate EPA Section 608 certification for handling R-32 refrigerant. Disconnect and lock out all electrical power before servicing or connecting the unit. The liquid line connection is 3/8-inch O.D. and the suction line connection is 3/4-inch O.D.; do not exceed the maximum standard line set length of 79 feet or the maximum vertical separation of 50 feet. Follow all applicable local codes, NEC requirements, and manufacturer installation instructions when sizing overcurrent protection and wiring the disconnect.

Technical Specifications

• Cooling Capacity: 2.5 Ton
• Efficiency Rating: 15.2 SEER2
• Compressor Type: Scroll, Single Stage
• Refrigerant Type: R-32
• Factory Refrigerant Charge: 87 oz
• Power Voltage: 208/230 V
• Power Phase: 1 Ph
• Power Frequency: 60 Hz
• Compressor RLA: 11.5 amps
• Minimum Circuit Amps: 15.4 amps
• Maximum Overcurrent Protection: 25 amps
• Unit Height: 39.5 inches
• Unit Width: 35.5 inches
• Unit Depth: 35.5 inches
• Sound Pressure (Cooling): 71.1 dBA
• Cooling Operation Range: 55 degrees F to 115 degrees F
• Liquid Line Pipe Size: 3/8 inch
• Gas Line Pipe Size: 3/4 inch
• Pre-Charged Line Length: 15 ft
• Max Standard Line Set Length: 79 ft
• Max Vertical Line Set Length: 50 ft
• Discharge Configuration: Top Discharge
• DOE Regional Compliance: All Regions
• Communication Type: Non-Communicating
• Country of Origin: United States
• Registered Residential Parts Warranty: 10 Years All Parts; 10 Years Compressor
• Registered Residential Unit Replacement Warranty: 10 Years Compressor
• Standard Parts Warranty (Residential): 5 Years All Parts

Standard Information

• Brand: Goodman
• Manufacturer Part Number: alxs5ba3010
