Goodman alxs4ba6010 Split Ac Outdoor Unit 5 Ton 14.3 SEER2 R-32

Product Description

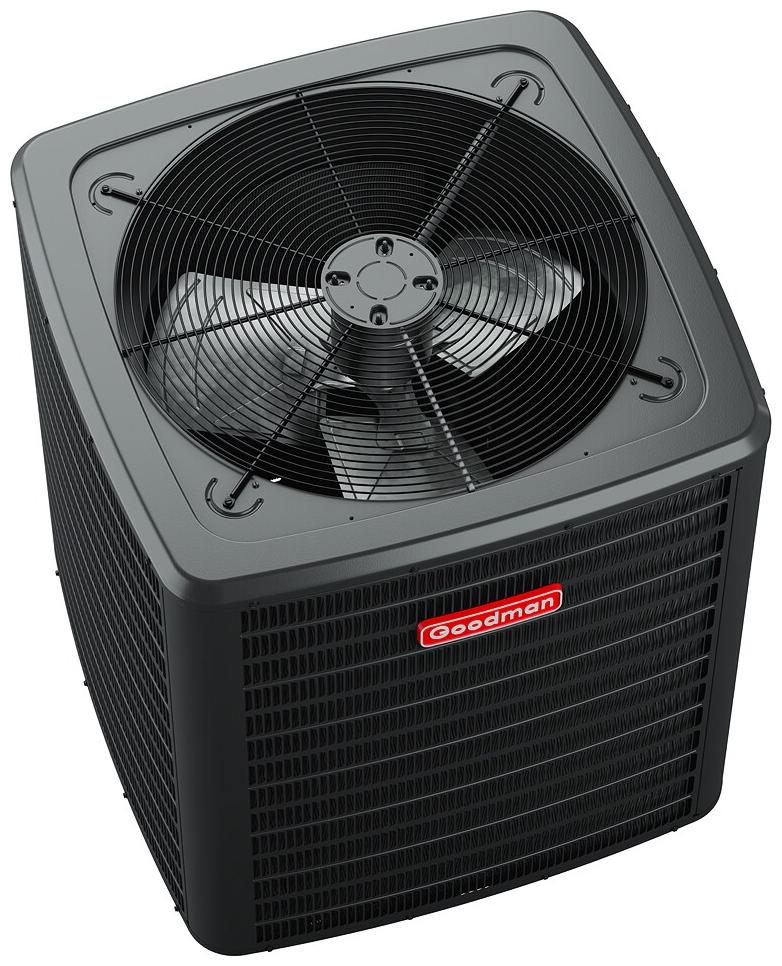

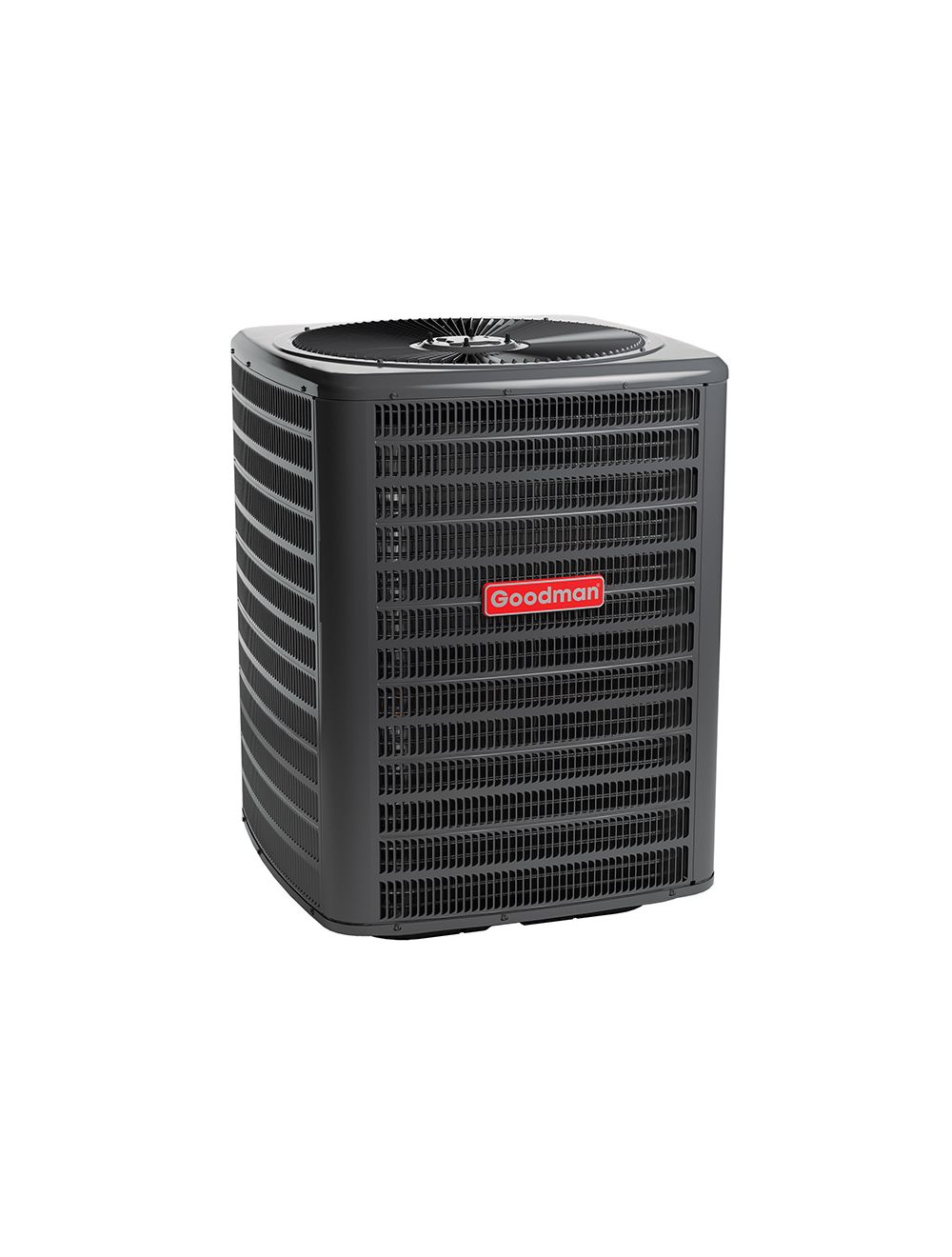

The Goodman alxs4ba6010 is a 5-ton, single-stage outdoor condensing unit designed for split air conditioning systems using R-32 refrigerant. Rated at 57,000 BTU/h cooling capacity with a 14.3 SEER2 efficiency rating and an EER2 of 11.2, this unit is built for residential and multi-family cooling applications. It operates on 208/230 volts single-phase power at 60 Hz and uses a scroll compressor with a multi-speed fan motor in a top-discharge cabinet. Licensed HVAC technicians install and commission this unit as the outdoor half of a matched split system.

The alxs4ba6010 is intended for residential, multi-family, and light commercial cooling-only applications where a non-communicating, single-stage outdoor unit is specified. It carries DOE regional compliance for all regions. The unit ships pre-charged with 94 oz of R-32 refrigerant and supports a standard line set up to 200 feet in length with a maximum vertical rise of 79 feet. Cooling operation is rated across an ambient range of 55 degrees F to 125 degrees F. Compatible accessory and startup components listed in product documentation include ABK-20, ASC01A, CSR-U-1, FSK01A, and LSK02A.

Key Features

• 57,000 BTU/h rated cooling capacity at 5 nominal tons
• 14.3 SEER2 and 11.2 EER2 efficiency ratings
• R-32 refrigerant with 94 oz factory pre-charge
• Single-stage scroll compressor with multi-speed condenser fan motor
• Top-discharge cabinet rated at 75 dBA sound pressure during cooling operation
• Supports line sets up to 200 feet with 0.64 lb per foot additional refrigerant charge rate
• Produced in the United States

Compatibility

The alxs4ba6010 is a non-communicating outdoor condensing unit in the ALXS4B series, designed for use with a compatible matched indoor coil or air handler in a cooling-only split system configuration. Referenced accessory and startup components include ABK-20, ASC01A, CSR-U-1, FSK01A, and LSK02A. Confirm indoor unit compatibility against Goodman or Amana matched-system documentation before installation.

Installation Notes

Installation must be performed by a licensed HVAC technician in accordance with local mechanical codes and the manufacturer installation instructions. Disconnect and lock out all electrical power before making any electrical or refrigerant connections. Because this unit uses R-32, a mildly flammable (A2L) refrigerant, technicians must follow applicable safety procedures for A2L refrigerant handling, including use of approved recovery equipment and compliance with local codes governing A2L installations. Verify line set sizing against manufacturer specifications and add refrigerant charge at the published rate of 0.64 lb per foot beyond the factory pre-charged 15-foot equivalent.

Technical Specifications

• Cooling Capacity (Rated): 57,000 BTU/h
• Cooling Capacity (Nominal): 60,000 BTU/h
• Tonnage: 5 Ton
• SEER2: 14.3
• EER2: 11.2
• Compressor Type: Scroll, Single Stage
• Refrigerant Type: R-32
• Factory Refrigerant Charge: 94 oz
• Additional Charge Rate: 0.64 lb per foot
• Power Voltage: 208/230 volts
• Power Phase: 1 Phase
• Power Frequency: 60 Hz
• Minimum Circuit Amps: 32.44 amps
• Maximum Overcurrent Protection: 50 amps
• Fan/Compressor Drive Input: 23.9 amps
• Unit Height: 39.5 inches
• Unit Width: 35.5 inches
• Unit Depth: 35.5 inches
• Unit Weight: 75 pounds
• Sound Pressure (Cooling High): 75 dBA
• Gas Pipe Size: 1-1/8 inches
• Liquid Pipe Size: 3/8 inches
• Suction Valve OD: 7/8 inches
• Liquid Valve OD: 3/8 inches
• Max Line Set Length: 200 feet
• Max Vertical Line Set: 79 feet
• Pre-Charged Line Length: 15 feet
• Cooling Operation Range: 55 degrees F to 125 degrees F
• Installation Configuration: Top Discharge
• Motor Speed Type: Multi-Speed
• DOE Regional Compliance: All Regions
• Communication Type: Non-Communicating
• Country of Origin: United States
• Registered Parts Warranty (Residential): 10 Years
• Registered Parts Warranty (Multi-Family): 10 Years
• Registered Parts Warranty (Commercial): 5 Years
• Standard Parts Warranty (Residential): 5 Years

Standard Information

• Brand: Goodman
• Manufacturer Part Number: alxs4ba6010
