Goodman alxs4ba4210 Split Ac Outdoor Unit 14.3 SEER2 3.5 Ton

Product Description

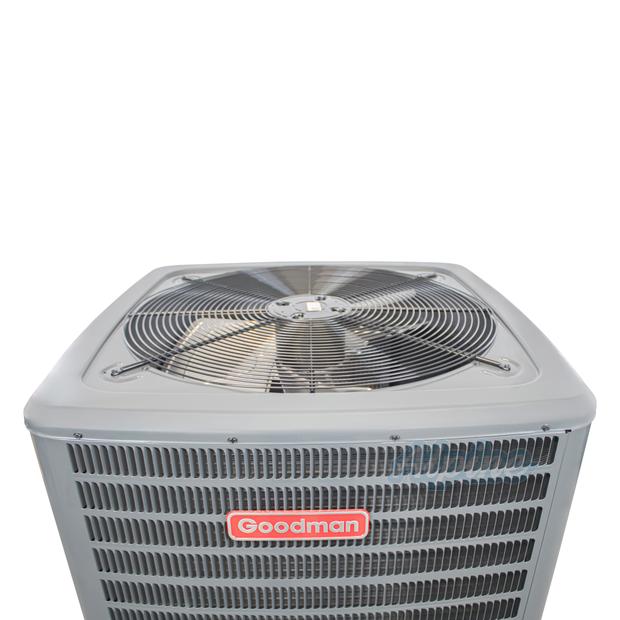

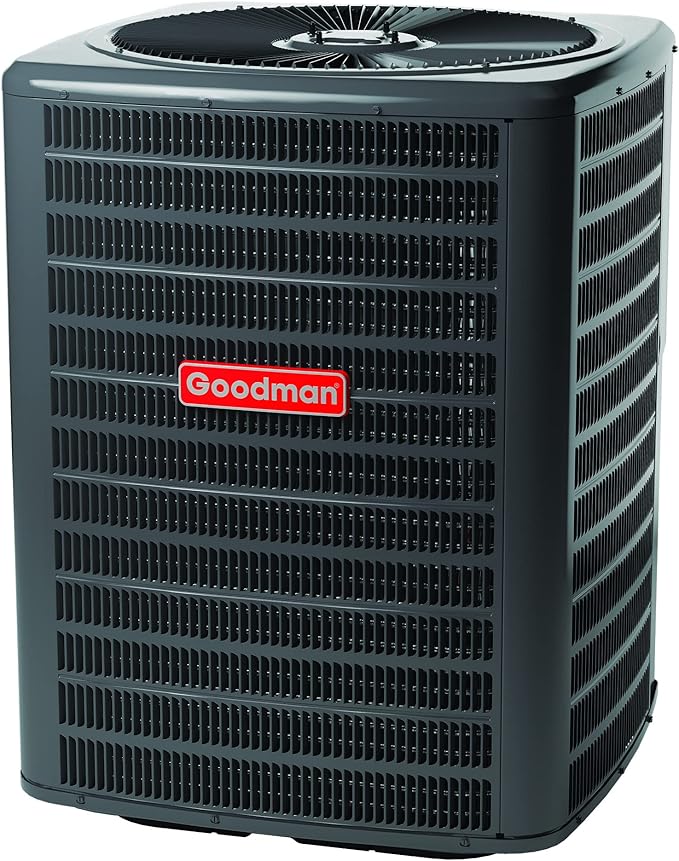

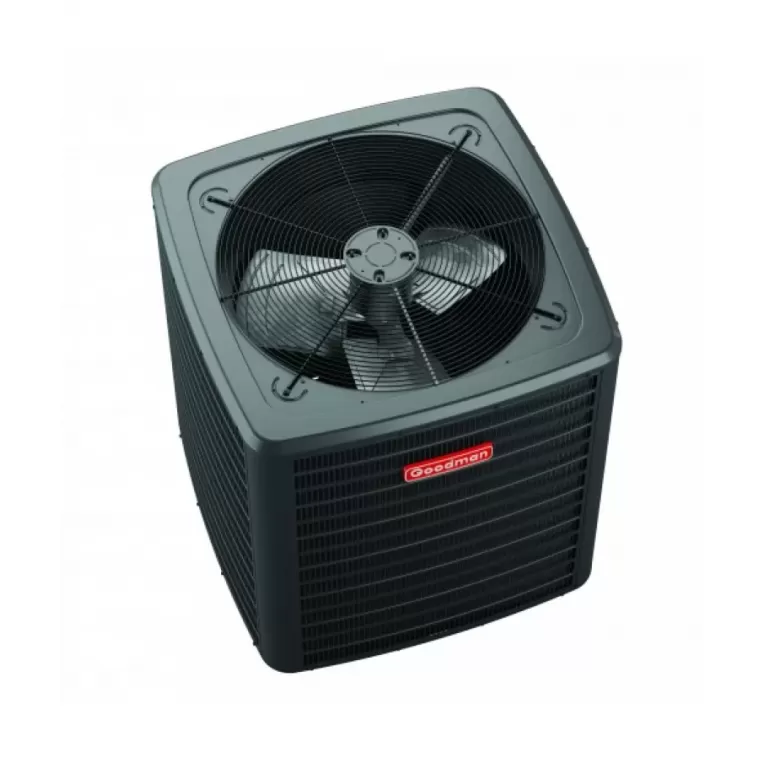

The GOODMAN alxs4ba4210 is a single-stage, cooling-only outdoor condensing unit built for residential and light commercial split air conditioning systems. Rated at 42,000 BTU/h nominal cooling capacity and 14.3 SEER2 efficiency, it uses R-32 refrigerant and operates on a 208/240-volt, single-phase, 60 Hz power supply. The scroll compressor runs at single speed and discharges airflow from the top of the cabinet. This unit is produced in the United States and carries DOE regional compliance for all U.S. climate zones. Licensed HVAC technicians perform the installation and startup on this type of equipment.

This outdoor unit is intended for residential, multi-family, and light commercial split-system cooling applications. It pairs with a compatible indoor coil to form a complete cooling system. The non-communicating configuration means it works with standard, non-proprietary thermostat and air handler controls. The unit is factory pre-charged with R-32 refrigerant for a standard line set length of 15 feet, with a maximum line set run of 200 feet and a maximum vertical rise of 79 feet. Operating ambient temperature range runs from 55 degrees F to 125 degrees F under standard cooling conditions.

Key Features

• 14.3 SEER2 and 11.7 EER2 efficiency ratings meeting DOE compliance for all regions
• 42,000 BTU/h nominal cooling capacity (3.5 ton) with a rated output of 40,000 BTU/h
• R-32 refrigerant with factory charge of 82.6 oz and additional charge rate of 0.64 lb per foot of line set
• Single-stage scroll compressor with top-discharge cabinet design
• Non-communicating controls compatible with standard thermostat systems
• Sound pressure rating of 71 dBA during cooling operation
• Produced in the United States

Compatibility

Designed as an OEM-style replacement or new-installation outdoor condensing unit within the ALXS4B series split air conditioning system. Referenced accessory and component part numbers from the manufacturer include ABK-20, ASC01A, CSR-U-1, FSK01A, LAKT01, and LSK02A. Consult the manufacturer submittal data to confirm indoor coil and air handler matches for this outdoor unit.

Installation Notes

Installation must be performed by a licensed HVAC technician holding an EPA Section 608 certification, as R-32 is an A2L mildly flammable refrigerant subject to specific handling requirements under applicable safety codes. Disconnect and lock out all electrical power before making any wiring connections or refrigerant line connections. Confirm minimum circuit ampacity and maximum overcurrent protection ratings match the electrical service panel capacity before energizing the unit. Follow local mechanical and electrical codes, including NEC requirements for disconnect placement and equipment clearances.

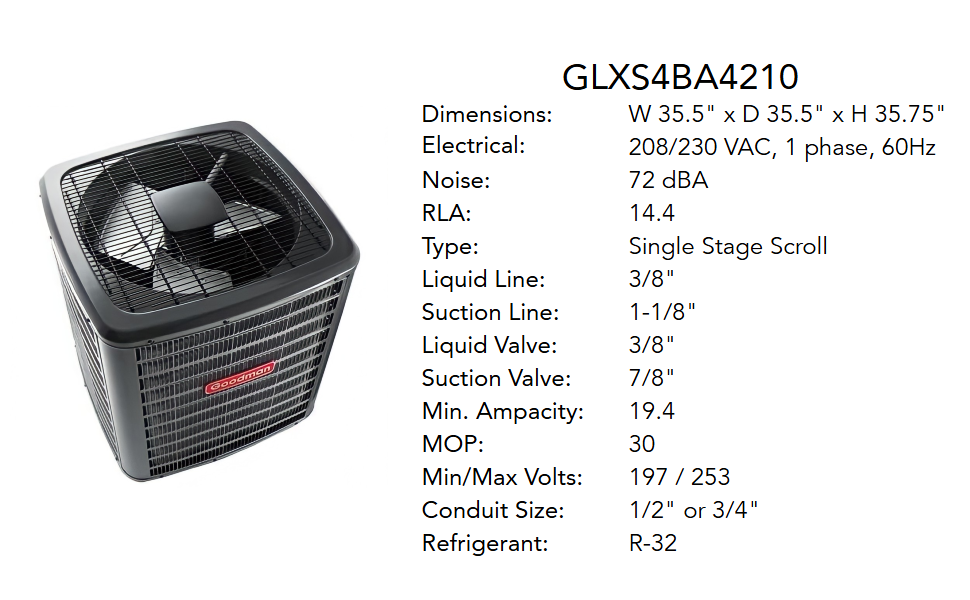

Technical Specifications

• Cooling Capacity (Nominal): 42,000 BTU/h
• Cooling Capacity (Rated): 40,000 BTU/h
• Tonnage: 3.5 ton
• SEER2: 14.3
• EER2: 11.7
• Power Voltage: 208/240 volts
• Power Phase: Single phase
• Power Frequency: 60 Hz
• Minimum Circuit Amps: 18.95 amps
• Maximum Overcurrent Protection: 30 amps
• Rated Load Amps: 14.4 amps
• Compressor Type: Scroll
• Compressor Stages: Single stage
• Refrigerant Type: R-32
• Factory Refrigerant Charge: 82.6 oz
• Additional Charge Rate: 0.64 lb per foot
• Pre-Charged Line Length: 15 feet
• Maximum Line Set Length: 200 feet
• Maximum Vertical Line Set: 79 feet
• Liquid Pipe Size: 3/8 inches
• Gas Pipe Size: 1-1/8 inches
• Liquid Valve O.D.: 3/8 inches
• Suction Valve O.D.: 7/8 inches
• Cooling Operation Range (Min): 55 degrees F
• Cooling Operation Range (Max): 125 degrees F
• Unit Height: 35.75 inches
• Unit Width: 35.5 inches
• Unit Depth: 35.5 inches
• Unit Weight: 71 pounds
• Sound Pressure (Cooling): 71 dBA
• Discharge Configuration: Top discharge
• DOE Regional Compliance: All regions
• Country of Origin: United States
• Residential Parts Warranty (Registered): 10 years all parts
• Multi-Family Parts Warranty (Registered): 10 years all parts
• Commercial Parts Warranty (Registered): 5 years all parts

Standard Information

• Brand: GOODMAN
• Manufacturer Part Number: alxs4ba4210
