Goodman alxs4ba3610 Split Ac 14.3 SEER2 3 Ton Outdoor Unit

Product Description

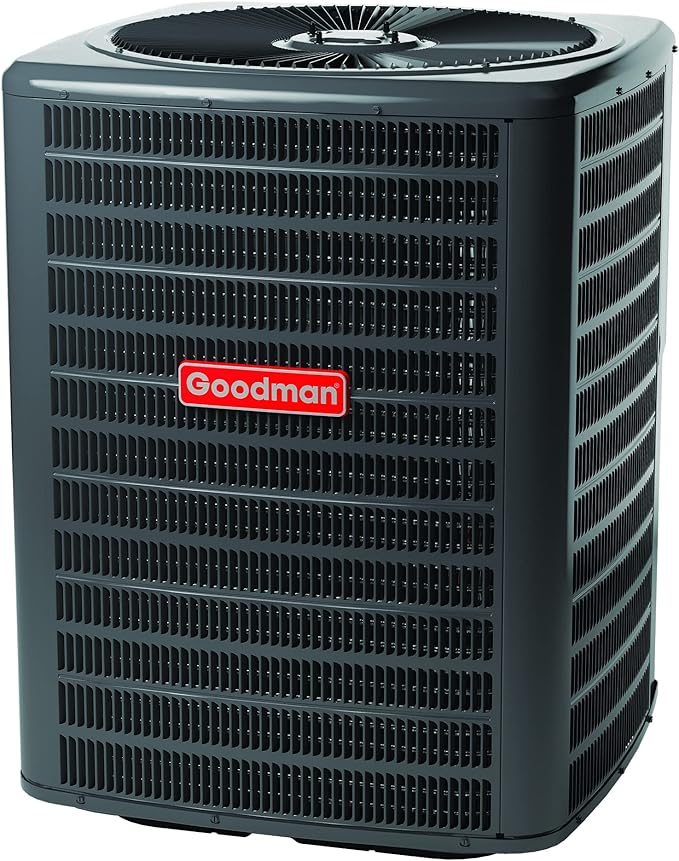

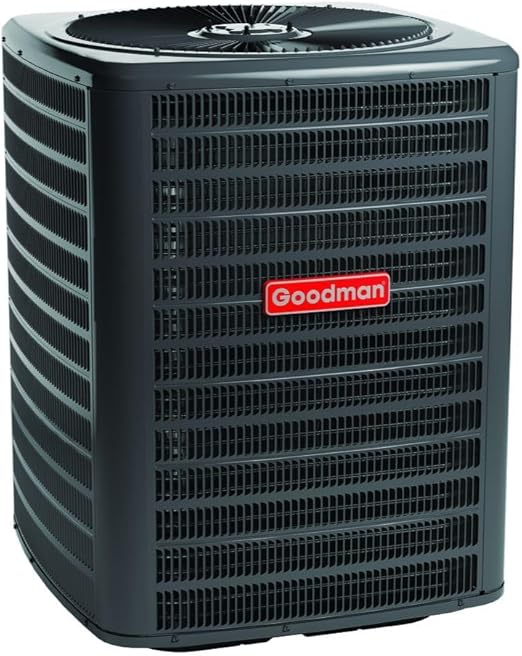

The Goodman alxs4ba3610 is a single-stage, 3-ton outdoor condensing unit designed for split air conditioning systems. It delivers a rated cooling capacity of 34,600 BTU/h at a 14.3 SEER2 efficiency rating, using R-32 refrigerant. Operating on 208/230 volts at 60 Hz single-phase power, this top-discharge unit is built for residential and multi-family installations where non-communicating controls are standard. A scroll compressor handles the refrigerant cycle, and the unit ships pre-charged from the factory. Licensed HVAC technicians install and commission this unit as the outdoor half of a split cooling system.

The alxs4ba3610 is suited for residential and multi-family cooling applications across all DOE regional compliance zones. It operates within a cooling ambient range of 55 degrees F to 125 degrees F, making it appropriate for a broad range of climate conditions. The unit uses a non-communicating control interface, so it pairs with standard thermostat and air handler configurations without proprietary protocol requirements. Compatible accessory and component references listed in the product data include ABK-20, ASC01A, CSR-U-1, FSK01A, LAKT01, and LSK02A.

Key Features

• 14.3 SEER2 single-stage cooling efficiency with scroll compressor technology
• R-32 refrigerant with factory-standard charge of 69 oz and pre-charged line length of 15 feet

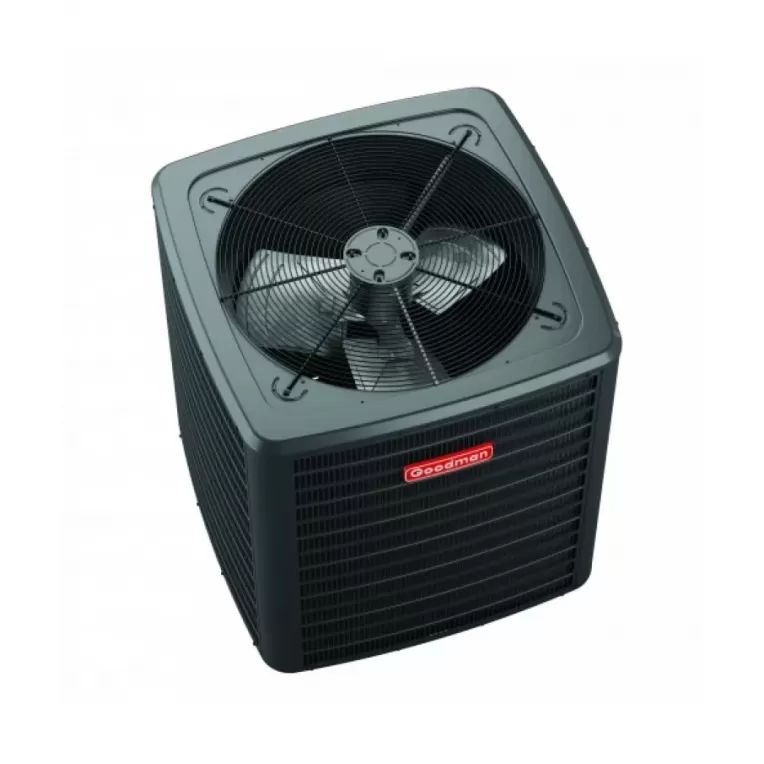

• Top-discharge cabinet design supports standard residential pad or rooftop installations
• Non-communicating controls compatible with conventional thermostat wiring
• Supports line sets up to 200 feet horizontal and 79 feet vertical
• Sound pressure rated at 66 dBA during cooling operation
• Produced in the United States

Compatibility

Designed as an OEM outdoor condensing unit within the ALXS4B series split air conditioning system. Compatible accessory references from the manufacturer include ABK-20, ASC01A, CSR-U-1, FSK01A, LAKT01, and LSK02A. Verify indoor coil and air handler sizing against manufacturer matchup data before installation.

Installation Notes

Installation must be performed by a licensed HVAC technician holding applicable EPA Section 608 refrigerant handling certification, as this unit uses R-32 refrigerant, which is classified as mildly flammable (A2L). Disconnect and lock out all electrical power before servicing or making refrigerant connections. Liquid line connection is 3/8 inch OD and suction line connection is 7/8 inch OD. Follow local mechanical codes and manufacturer installation instructions for proper line set routing, electrical disconnect sizing, and condensate clearance requirements.

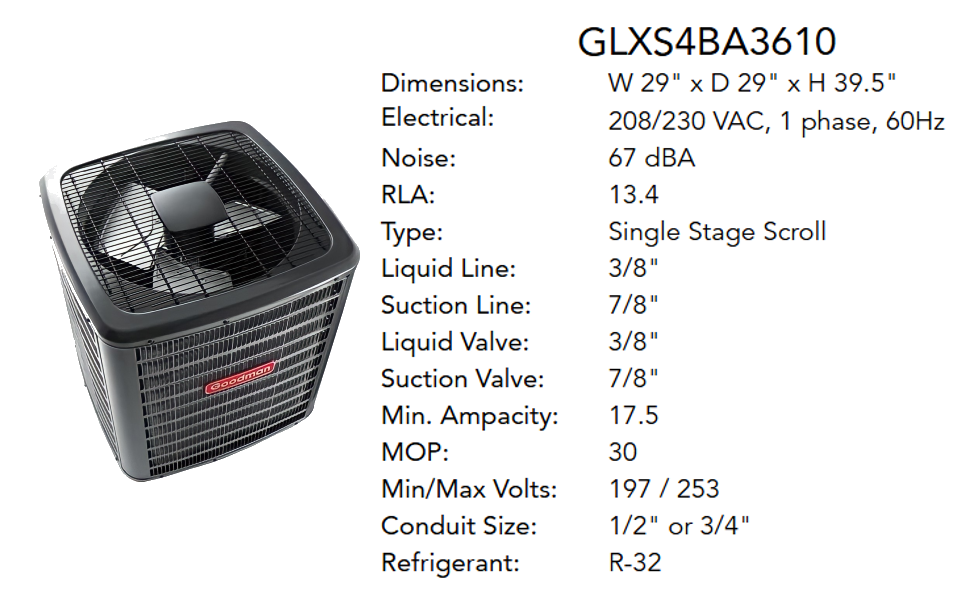

Technical Specifications

• Cooling Capacity (Rated): 34,600 BTU/h
• Cooling Capacity (Nominal): 36,000 BTU/h
• Tonnage: 3 ton
• SEER2: 14.3
• EER2: 11.7
• Refrigerant Type: R-32
• Factory Refrigerant Charge: 69 oz
• Additional Refrigerant Charge: 0.58 lb per foot
• Power Voltage: 208/230 volts
• Power Phase: Single phase
• Power Frequency: 60 Hz
• Rated Load Amps: 13.44 amps
• Min. Circuit Amps: 17.75 amps
• Max Overcurrent Protection: 30 amps
• Compressor Type: Scroll
• Compressor Stages: Single stage
• Motor Speed Type: Single speed
• Installation Configuration: Top discharge
• Communication Feature: Non-communicating
• Cooling Operation Range: 55 degrees F to 125 degrees F
• Sound Pressure (Cooling): 66 dBA
• Liquid Line Pipe Size: 3/8 inch
• Gas Line Pipe Size: 7/8 inch
• Pre-Charged Line Length: 15 feet
• Max Line Set Length (Horizontal): 200 feet
• Max Line Set Length (Vertical): 79 feet
• Unit Height: 39.5 inches
• Unit Width: 29 inches
• Unit Depth: 29 inches
• Unit Weight: 66 pounds
• DOE Regional Compliance: All regions
• Country of Origin: United States
• Warranty (Residential Registered): 10 years all parts
• Warranty (Residential Standard): 5 years all parts
• Warranty (Commercial): 5 years all parts

Standard Information

• Brand: Goodman
• Manufacturer Part Number: alxs4ba3610
