Goodman alxs4ba3010 Condenser 2.5 Ton 14.3 SEER2 R-32

Product Description

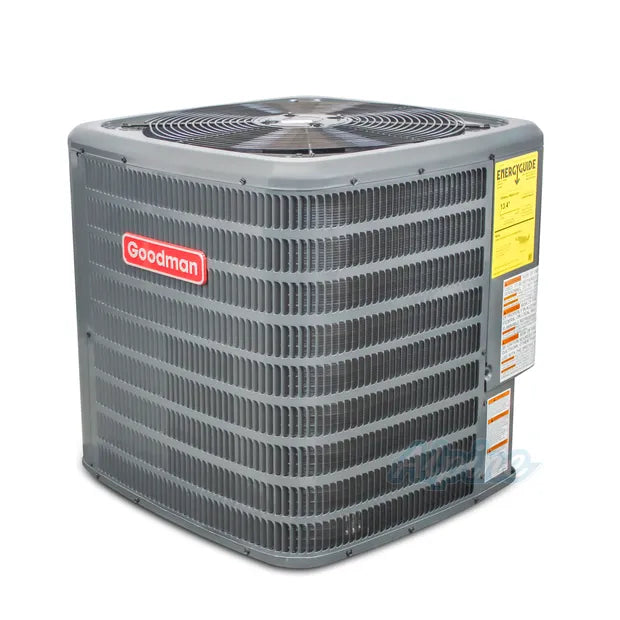

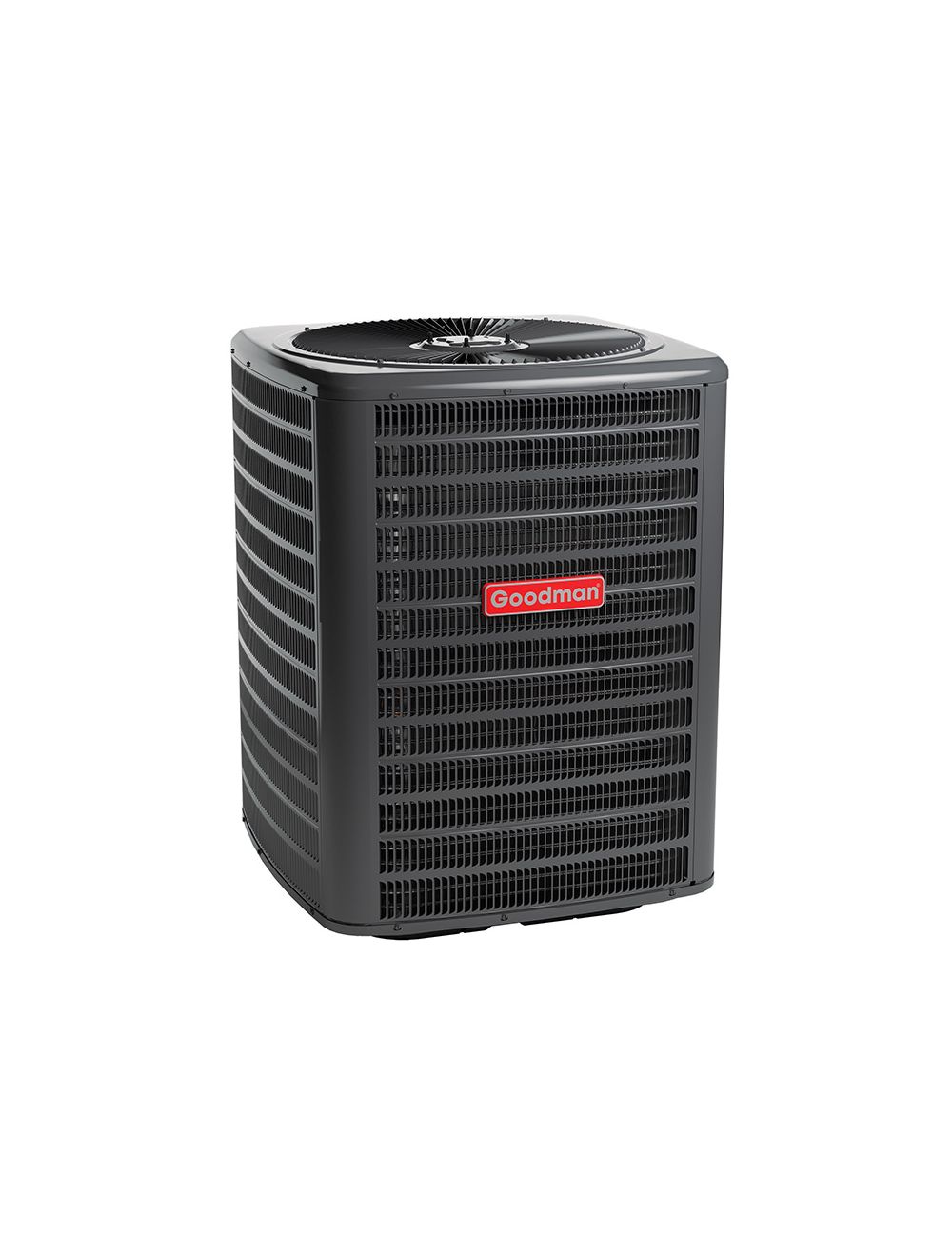

The Goodman alxs4ba3010 is a 2.5-ton single-stage outdoor condensing unit designed for split-system cooling applications. It operates on R-32 refrigerant and achieves a 14.3 SEER2 efficiency rating with an EER2 of 11.7. The unit runs on 208/240 volts single phase at 60 Hz and uses a scroll compressor with a single-speed fan motor in a top-discharge configuration. Rated cooling capacity is 28,400 BTU/h with a nominal rating of 30,000 BTU/h. This unit is manufactured in the United States and meets DOE regional compliance requirements for all regions. Licensed HVAC technicians handle installation and commissioning.

The alxs4ba3010 is suited for residential and multi-family split-system cooling installations where a non-communicating, single-stage outdoor unit is specified. It is a cooling-only unit and does not include a heat pump function. The unit accepts standard line sets up to 200 feet in length and up to 79 feet vertical rise. It ships factory pre-charged with 64 ounces of R-32 refrigerant, with additional charge required at 0.55 pounds per foot beyond the standard 15-foot pre-charged length. Compatible accessory references listed by the manufacturer include ABK-20, ASC01A, CSR-U-1, FSK01A, LAKT01, and LSK02A.

Key Features

• 14.3 SEER2 and 11.7 EER2 efficiency ratings meeting all DOE regional compliance requirements
• R-32 refrigerant with 64-ounce factory pre-charge and 15-foot pre-charged line length
• Single-stage scroll compressor with single-speed motor for straightforward installation and servicing

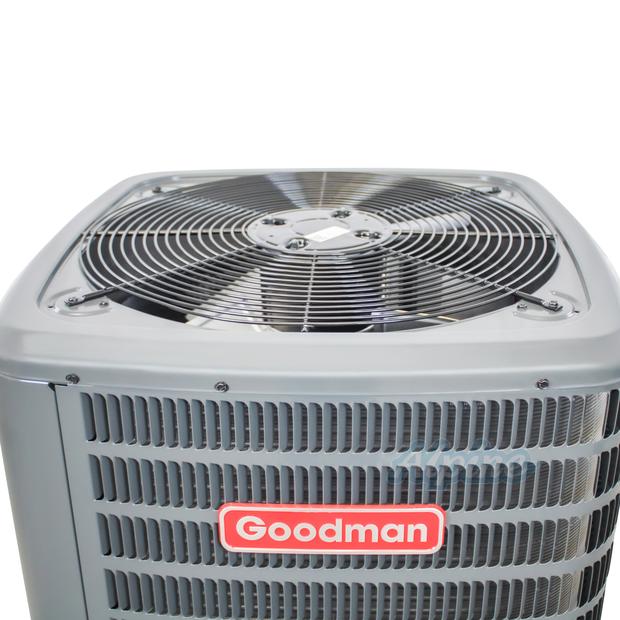

• Top-discharge airflow configuration suited to standard residential pad or rooftop placement
• Non-communicating design compatible with standard thermostat and air handler control wiring
• Produced in the United States; active release status

Compatibility

Designed as a non-communicating cooling-only outdoor unit for use in split-system configurations. Manufacturer-listed accessory and component references include ABK-20, ASC01A, CSR-U-1, FSK01A, LAKT01, and LSK02A. Verify indoor unit compatibility and refrigerant handling certifications before installation.

Installation Notes

Installation must be performed by an EPA Section 608-certified HVAC technician due to the R-32 refrigerant charge. Disconnect and lock out all power before connecting or servicing refrigerant lines or electrical connections. R-32 is an A2L mildly flammable refrigerant — follow all applicable local codes, manufacturer guidelines, and ASHRAE 15 requirements for safe handling and system leak testing. Confirm that the liquid line valve (3/8-inch O.D.) and suction valve (7/8-inch O.D.) connections match the indoor coil and line set before brazing.

Technical Specifications

• Cooling Capacity (Rated): 28,400 BTU/h
• Cooling Capacity (Nominal): 30,000 BTU/h
• Tonnage: 2.5 tons
• SEER2: 14.3
• EER2: 11.7
• Power Voltage: 208/240 volts
• Power Phase: 1 phase
• Power Frequency: 60 Hz
• Rated Load Amps: 11.52 amps
• Fan/Compressor Drive Input: 11.5 amps
• Minimum Circuit Amps: 15.35 amps
• Maximum Overcurrent Protection: 25 amps
• Compressor Type: Scroll
• Compressor Stages: Single Stage
• Motor Speed Type: Single Speed
• Installation Configuration: Top Discharge
• Refrigerant Type: R-32
• Factory Refrigerant Charge: 64 oz
• Pre-Charged Line Length: 15 feet
• Additional Charge Rate: 0.55 pounds per foot
• Maximum Line Set Length: 200 feet
• Maximum Vertical Line Set: 79 feet
• Liquid Pipe Size: 3/8 inches
• Gas Pipe Size: 3/4 inches
• Liquid Valve O.D.: 3/8 inches
• Suction Valve O.D.: 7/8 inches
• Cooling Operation Range (Min): 55 degrees F
• Cooling Operation Range (Max): 125 degrees F
• Sound Pressure (Cooling): 68 dBA
• Unit Width: 29 inches
• Unit Depth: 29 inches
• Unit Height: 35.75 inches
• Unit Weight: 68 pounds
• DOE Regional Compliance: All regions
• Communication Feature: Non-Communicating
• Country of Origin: United States
• Warranty (Residential Registered): All Parts 10 Years
• Warranty (Residential Standard): All Parts 5 Years
• Warranty (Commercial): All Parts 5 Years

Standard Information

• Brand: Goodman
• Manufacturer Part Number: alxs4ba3010
