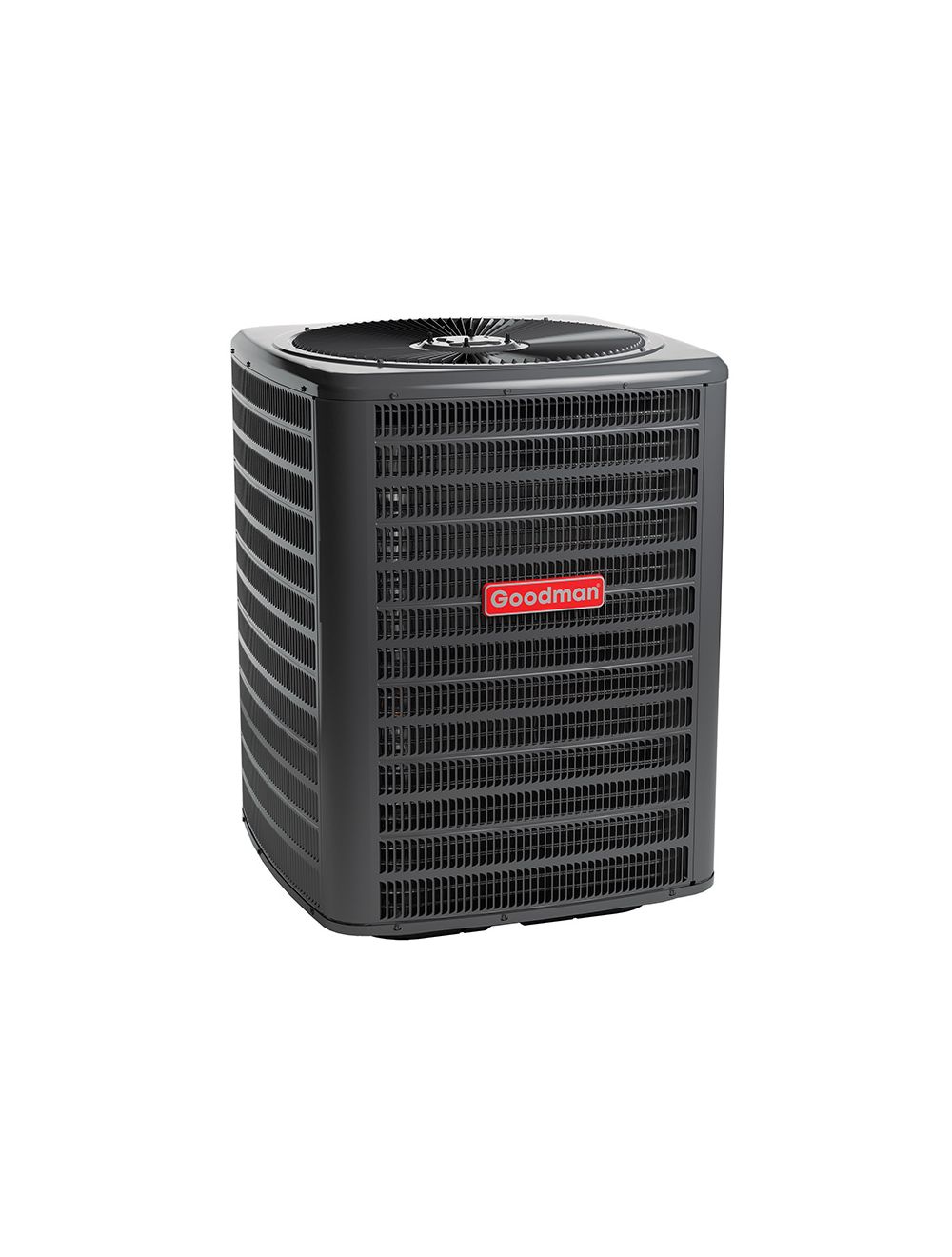

Goodman alxs4ba1810 Split Ac 14.3 SEER2 1.5 Ton Outdoor Unit

Product Description

The GOODMAN alxs4ba1810 is a 1.5-ton single-stage outdoor split air conditioner rated at 14.3 SEER2 and 17,600 BTU/h of cooling capacity. It uses R-32 refrigerant and operates on 208/240 volts single-phase power at 60 Hz. The unit features a scroll compressor with top-discharge airflow and is designed for non-communicating system configurations. Licensed HVAC technicians install this outdoor condensing unit as part of a split-system cooling installation. Manufactured in the United States, it covers a cooling operation range of 55 degrees F to 125 degrees F and meets DOE regional compliance for all U.S. regions.

This unit is suited for residential and multi-family cooling applications where a straightforward, non-communicating split-system configuration is required. At 1.5 tons nominal, it is typically installed in smaller residential spaces or zone additions. The standard line set supports runs up to 200 feet horizontal and 79 feet vertical, providing flexibility for a range of installation layouts. The factory refrigerant charge covers the first 15 feet of line set, with additional charge required at 0.55 pounds per foot beyond that length.

Key Features

• 14.3 SEER2 and 11.7 EER2 efficiency ratings for compliance with current DOE standards
• Single-stage scroll compressor delivers consistent cooling performance at 17,600 BTU/h rated capacity
• R-32 refrigerant with factory charge of 54 oz and pre-charged line set coverage to 15 feet
• Top-discharge cabinet design with single-speed fan motor rated at 71 dBA sound pressure
• Non-communicating controls for compatibility with standard thermostat wiring configurations
• Produced in the United States with DOE regional compliance for all regions

Compatibility

Designed as an OEM outdoor condensing unit within the ALXS4B series split-system platform. Compatible accessory and component references provided by the manufacturer include ABK-20, ASC01A, CSR-U-1, FSK01A, LAKT01, and LSK02A. Verify indoor coil and air handler compatibility with the manufacturer's engineering specifications before installation.

Installation Notes

Installation must be performed by a licensed HVAC technician in accordance with local mechanical codes and the manufacturer's installation instructions. Disconnect all power to the system before making electrical or refrigerant connections. Minimum circuit ampacity is 11.1 amps with a maximum overcurrent protection of 15 amps. Liquid line connection is 3/8 inch O.D. and suction line connection is 3/4 inch O.D.; verify line set sizing against the manufacturer's published guidelines for runs beyond the pre-charged length.

Technical Specifications

• Cooling Capacity (Nominal): 18,000 BTU/h
• Cooling Capacity (Rated): 17,600 BTU/h
• Tonnage: 1.5 Ton
• SEER2: 14.3
• EER2: 11.7
• Compressor Type: Scroll, Single Stage
• Refrigerant Type: R-32
• Factory Refrigerant Charge: 54 oz
• Additional Refrigerant Charge: 0.55 pounds per foot beyond 15 feet
• Power Voltage: 208/240 volts, 1-phase, 60 Hz
• Rated Load Amps: 8.32 A
• Min. Circuit Amps: 11.1 A
• Max Overcurrent Protection: 15 A
• Liquid Line Connection (O.D.): 3/8 inch
• Suction Line Connection (O.D.): 3/4 inch
• Standard Line Set Length (Max): 200 feet
• Standard Line Set Length (Vertical): 79 feet
• Cooling Operation Range: 55 degrees F to 125 degrees F
• Sound Pressure (Cooling): 71 dBA
• Unit Dimensions (W x D x H): 26 inches x 26 inches x 27 inches
• Unit Weight: 71 pounds
• Installation Configuration: Top Discharge
• Communication Type: Non-Communicating
• DOE Regional Compliance: All Regions
• Country of Origin: United States
• Residential Parts Warranty (Registered): 10 Years All Parts
• Commercial Parts Warranty (Registered): 5 Years All Parts

Standard Information

• Brand: GOODMAN
• Manufacturer Part Number: alxs4ba1810
