Goodman alxs3nn1810 1.5 Ton 13.4 SEER2 R-32 Ac Outdoor Unit

Product Description

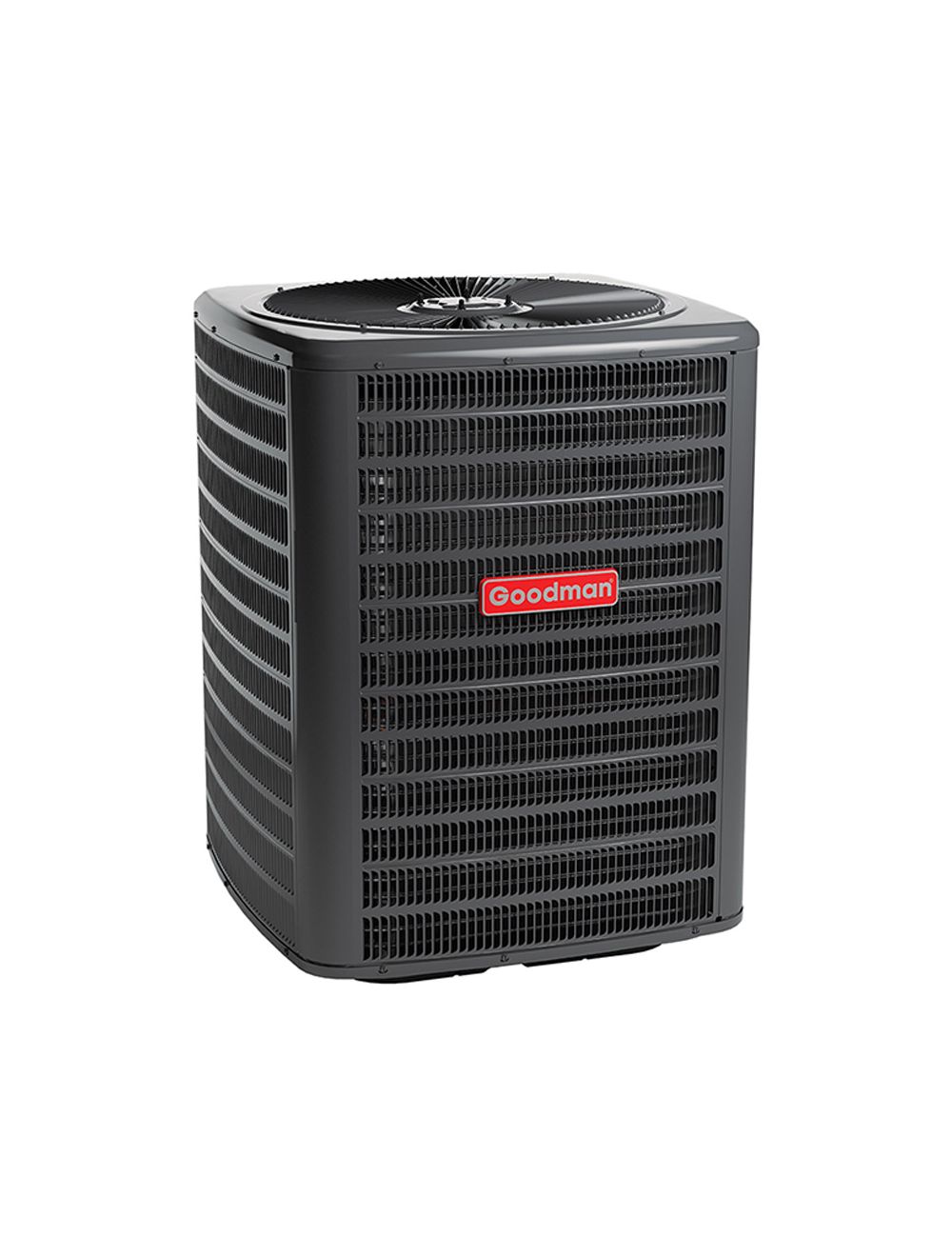

The GOODMAN alxs3nn1810 is a 1.5-ton, single-stage outdoor condensing unit designed for cooling-only split air conditioning systems. Rated at 18,000 BTU/h with a 13.4 SEER2 efficiency rating and an EER2 of 11.2, this unit uses R-32 refrigerant and operates on a 208/230-volt, single-phase, 60 Hz power supply. It features a rotary compressor with top-discharge airflow and a single-speed fan motor. Licensed HVAC technicians install this unit as the outdoor half of a split cooling system in residential and light commercial applications in the DOE North compliance region. The unit is manufactured in the United States.

This condensing unit is intended for split-system cooling installations in the DOE North regional compliance zone. It is suited for residential and multi-family applications requiring a compact, non-communicating outdoor unit. The unit operates within a standard cooling ambient range of 55 degrees F to 115 degrees F and ships factory pre-charged with R-32 refrigerant for a 15-foot line set. Maximum line set length is 150 feet, with a maximum vertical run of 79 feet. Typical installations pair this unit with a compatible indoor air handler or coil assembly.

Key Features

• 18,000 BTU/h rated cooling capacity at 1.5 tons
• 13.4 SEER2 and 11.2 EER2 efficiency ratings for DOE North compliance
• R-32 refrigerant with factory charge of 53 oz for a 15-foot pre-charged line set
• Single-stage rotary compressor with top-discharge configuration
• Non-communicating design for straightforward thermostat and air handler compatibility
• Sound pressure level of 74 dBA during cooling operation
• Manufactured in the United States

Compatibility

Designed as an OEM-style outdoor condensing unit within the ALXS3N series for non-communicating split cooling systems in the DOE North region. Refer to the manufacturer system combination guide to confirm matched indoor coil or air handler compatibility before installation.

Installation Notes

Installation must be performed by a licensed HVAC technician in accordance with local mechanical codes and EPA Section 608 refrigerant handling regulations. Disconnect and lock out all power to the system before connecting or servicing refrigerant lines, electrical connections, or the unit itself. Minimum circuit ampacity is 10.9 amps with a maximum overcurrent protection of 15 amps; verify that the service disconnect and wiring are sized accordingly. Liquid line connection is 3/8 inch O.D. and suction line connection is 3/4 inch O.D.; use proper flaring or brazing procedures and pressure-test the line set before charging.

Technical Specifications

• Cooling Capacity (Rated): 18,000 BTU/h
• Tonnage: 1.5 tons
• SEER2: 13.4
• EER2: 11.2
• Compressor Stages: Single Stage
• Compressor Type: Rotary
• Power Voltage: 208/230 volts
• Power Phase: Single Phase
• Power Frequency: 60 Hz
• Rated Load Amps: 8.2 amps
• Min. Circuit Amps: 10.9 amps
• Max Overcurrent Protection: 15 amps
• Refrigerant Type: R-32
• Factory Refrigerant Charge: 53 oz
• Additional Refrigerant Charge: 0.55 lb per foot
• Pre-Charged Line Length: 15 feet
• Max Line Set Length: 150 feet
• Max Vertical Line Set: 79 feet
• Liquid Line Pipe Size: 3/8 inch
• Gas Line Pipe Size: 3/4 inch
• Liquid Valve Size (O.D.): 3/8 inch
• Suction Valve Size (O.D.): 3/4 inch
• Cooling Operation Range (Min): 55 degrees F
• Cooling Operation Range (Max): 115 degrees F
• Sound Pressure Level (Cooling): 74 dBA
• Unit Height: 27.5 inches
• Unit Width: 26 inches
• Unit Depth: 26 inches
• Unit Weight: 114 pounds
• Installation Configuration: Top Discharge
• Motor Speed Type: Single Speed
• Communication Feature: Non-Communicating
• DOE Regional Compliance: North
• Country of Origin: United States
• Residential Registered Parts Warranty: 10 years all parts
• Residential Standard Parts Warranty: 5 years all parts
• Commercial Parts Warranty: 5 years all parts

Standard Information

• Brand: GOODMAN
• Manufacturer Part Number: alxs3nn1810
