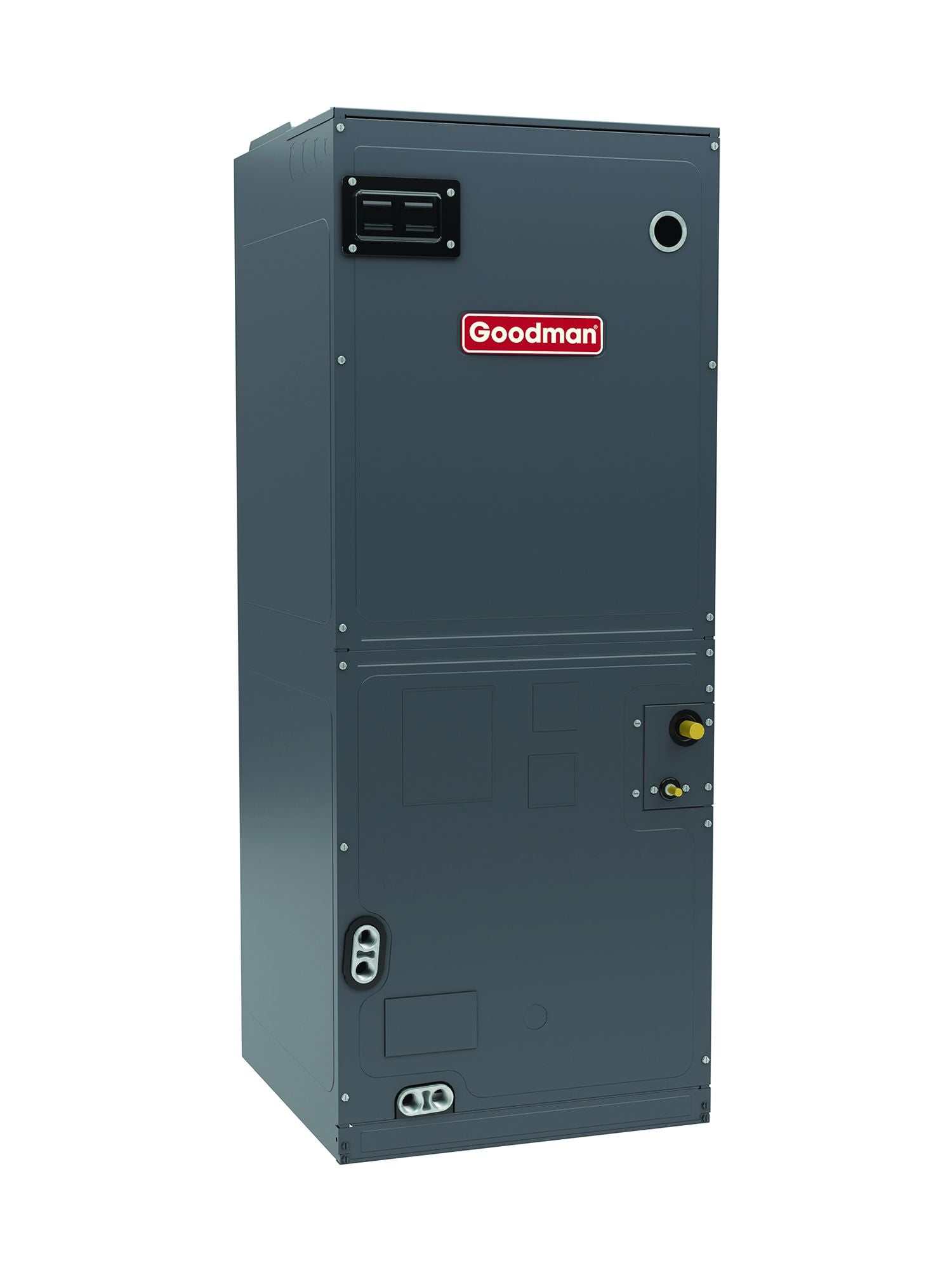

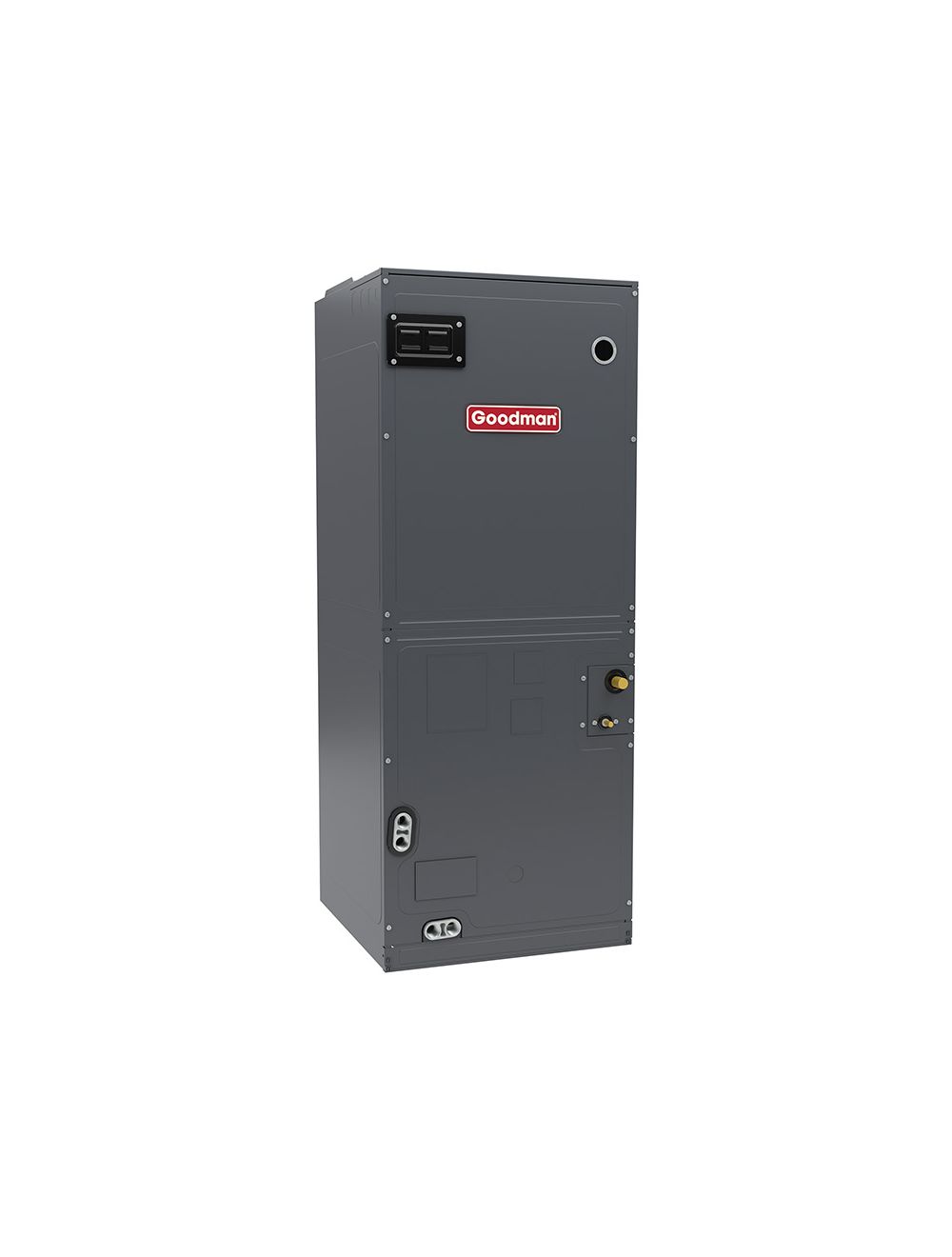

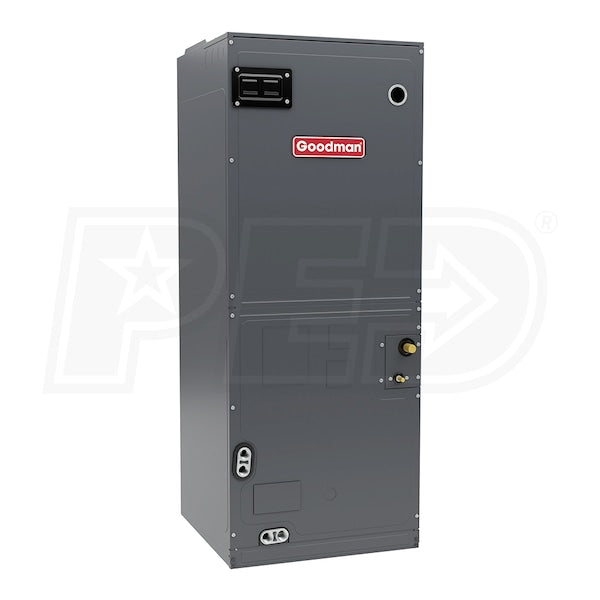

GOODMAN AHVE60DP1300 Goodman AHVE60DP1300 5 Ton Variable Speed Air Handler

Product Description

The Goodman AHVE60DP1300 is a 5-ton air handler that provides effective air distribution for residential HVAC systems. It features a variable-speed ECM blower motor, allowing it to operate efficiently across various conditions. This air handler uses an electronic expansion valve (EEV) suitable for cooling and heat pump applications. It works with R-32 refrigerant and can be installed in horizontal or vertical configurations.

• Includes a thermoplastic drain pan and all-aluminum evaporator coil.
• Designed to maintain constant CFM over a range of static pressure conditions.
• Ideal for indoor installation.

Product Highlights

This HVAC system component is designed for high efficiency and flexibility.

Product Information

Standard Information

• Brand: Goodman
• Model Number: AHVE60DP1300

Technical Specifications

• Product Line: AHVE
• Capacity: 5.0 Tons
• Cooling BTU: 60000
• Refrigerant Type: R-32
• Blower: Variable Speed
• Blower Motor Type: ECM Variable-Speed
• Voltage: 208/230 Volts
• Frequency: 60 Hz
• Amp(s): 15
• Minimum Circuit Ampacity: 6.5 Amps
• Maximum Air Flow: 1640 CFM
• Minimum Air Flow: 1260 CFM
• Installation Location: Indoor
• Drain Outlet Diameter: 3/4 Inch
• Product Width: 24.5 Inches
• Product Height: 58 Inches
• Product Depth: 21 Inches
• Product Weight: 152 Pounds
• Shipping Weight: 167 Pounds
• AHRI Certified: Yes
• Parts Warranty: 10 Limited Years
