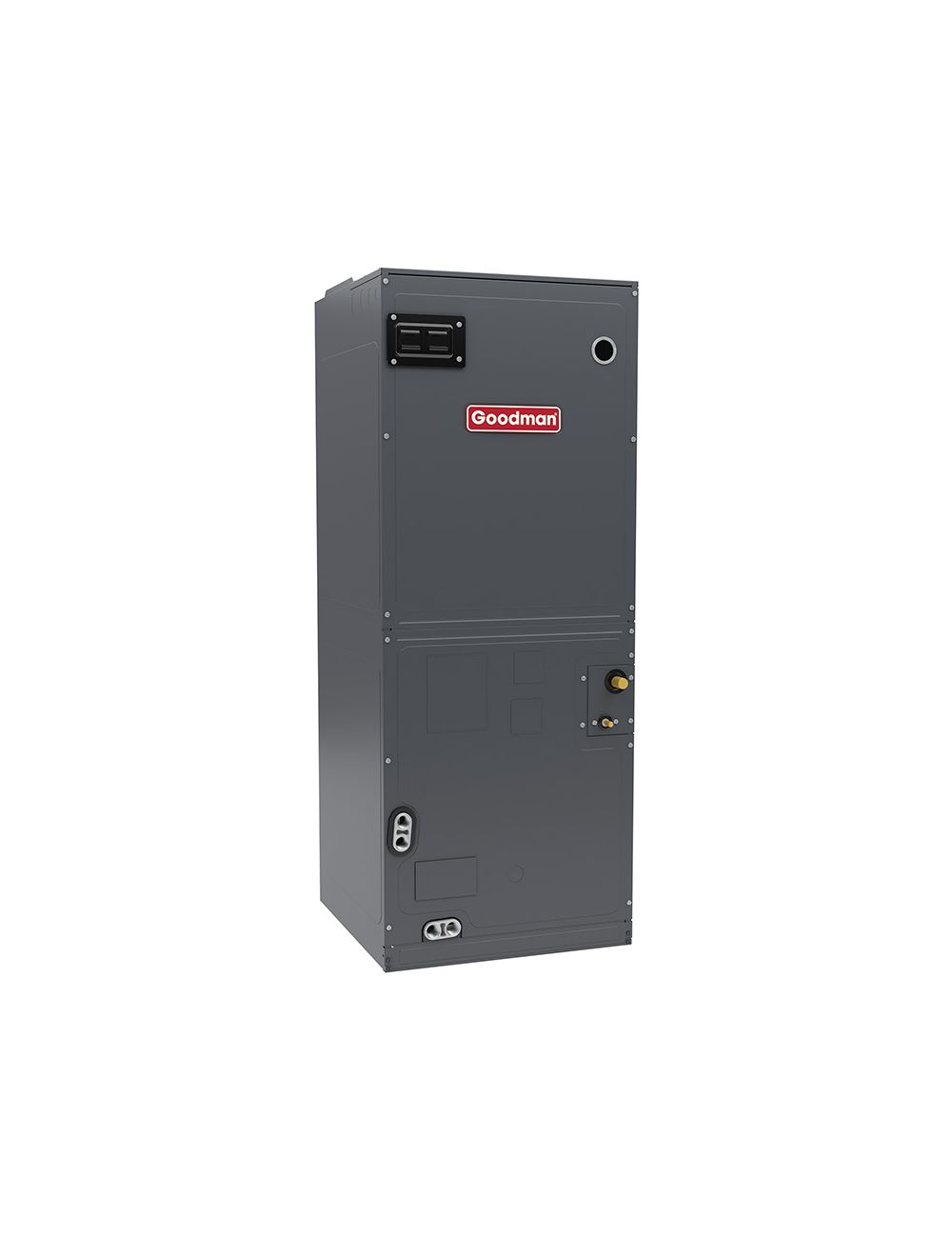

GOODMAN AHVE60DP0300 Air Handler 5 Ton Variable Speed ECM

Product Description

The Goodman AHVE60DP0300 is a reliable air handler designed for efficient air distribution. This model features an all-aluminum evaporator coil and is equipped with a variable-speed ECM blower motor. It is compatible with R-32 refrigerant and can be configured for both horizontal or vertical installation. The unit also includes foil-faced insulated internal casing and a thermoplastic drain pan.

• Equipped with an electronic expansion valve (EEV)
• Variable-speed ECM blower motor for optimal airflow
• Multi-position design for installation versatility

Product Highlights

This air handler caters to various installation needs, ensuring adaptability in different setups.

Product Information

Standard Information

• Brand: GOODMAN
• MPN: AHVE60DP0300

Technical Specifications

• Product Line: AHVE
• Air Handler Type: Single Piece
• Configuration: Multi-position
• Refrigerant: R-32
• Nominal Capacity: 5.0 Tons
• Cooling BTU: 60000
• Maximum Air Flow: 1640 CFM
• Minimum Air Flow: 1260 CFM
• Motor Type: ECM
• Blower Motor Type: ECM Variable-Speed
• Input Voltage: 115 Volts
• Phase: 1
• Frequency: 60 Hz
• Minimum Circuit Ampacity: 6.5 Amps
• Maximum Fuse Size: 20
• Recommended Breaker Size: 15 Amps
• Suction Connection Size: 7/8 Inch
• Liquid Connection Size: 3/8 Inch
• Drain Outlet Diameter: 3/4 Inch
• Width: 24.5 inches
• Height: 58 inches
• Depth: 21 inches
• Product Weight: 152 Pounds
• Shipping Weight: 167 Pounds
• Installation Location: Indoor
• Electric Heat: Available
• TXV Included: Yes
• AHRI Certified: Yes
• ETL Listed: Yes
• ISO Certified: Yes
• Parts Warranty: 10 Limited Years
