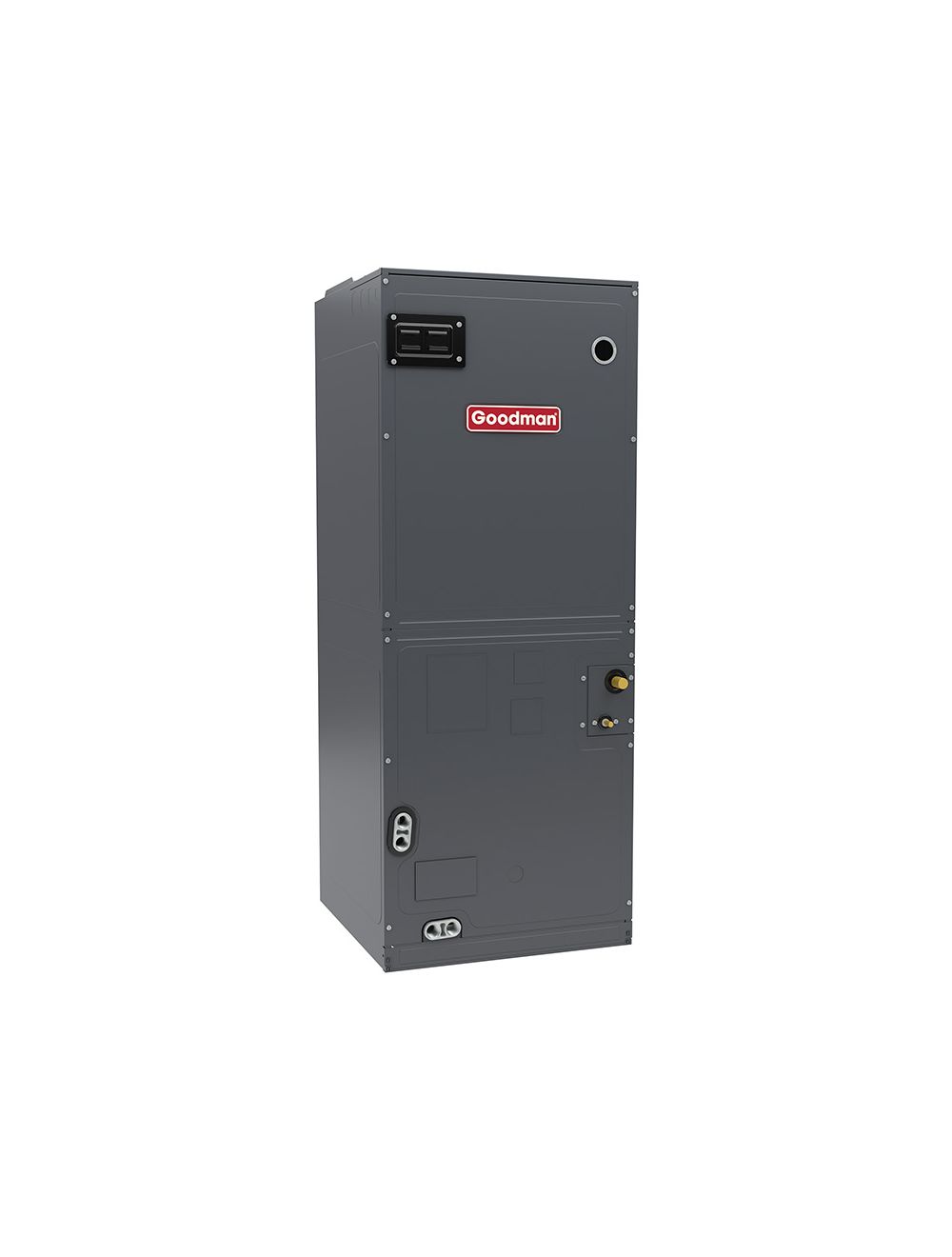

GOODMAN AHVE42CP0300 3.5 Ton Air Handler

Product Description

The Goodman AHVE42CP0300 is an air handler that supports efficient air distribution in homes. This unit utilizes an all-aluminum evaporator coil with a thermoplastic drain pan for effective operation. It includes a variable-speed ECM blower motor and an Electronic Expansion Valve (EEV), which enhances performance and efficiency. Designed for use with R-32 refrigerant, it is suitable for both horizontal and vertical installation.

• Capacity: 3.5 Tons
• Refrigerant Type: R-32
• Blower Motor Type: ECM Variable-Speed

Product Highlights

Variable-speed ECM blower for improved airflow and energy savings.

Product Information

Standard Information

• Brand: GOODMAN
• MPN: AHVE42CP0300

Technical Specifications

• Product Line: AHVE
• Product Category: Air Handler
• Air Handler Type: Air Handler
• Configuration: Horizontal
• Installation Location: Indoor
• Capacity: 3.5 Tons
• Cooling BTU: 42000
• Maximum Air Flow: 1320 CFM
• Input Voltage: 115 Volts
• Phase: 1
• Frequency: 60 Hz
• Minimum Circuit Ampacity: 6.5 Amps
• Recommended Breaker Size: 15 Amps
• Suction Connection Size: 7/8 Inch
• Liquid Connection Size: 3/8 Inch
• Drain Outlet Diameter: 3/4 Inch
• Cabinet Width: 21 Inches
• Product Height: 53 7/16 Inches
• Product Width: 21 Inches
• Product Depth: 21 Inches
• Product Weight: 125 Pounds
• Warranty: 10 Limited Years
