Goodman AHVE36CP1400 Air Handler Variable Speed ECM Motor 3 Ton

Product Description

Goodman's AHVE36CP1400 is an air handler designed for efficient air distribution in a variety of home sizes. This model uses a variable speed ECM motor, optimizing cooling and heating performance. Its cabinets feature an all-aluminum evaporator coil and an electronic expansion valve (EEV) to enhance system effectiveness and comfort consistency.

• Electronic Expansion Valve (EEV) for efficient cooling and heating.
• Variable-speed ECM blower motor for adjustable air volume.
• 21-inch depth for flexible installation options.

Product Highlights

The Goodman AHVE36CP1400 air handler is versatile, allowing horizontal or vertical installation, which is useful for various spaces. Its construction includes features that reduce noise and air leakage, ensuring a quieter operation. The unit is AHRI certified and ETL listed, meeting high standards for performance and safety.

Product Information

Standard Information

• Brand: Goodman
• Unit Type: Indoor Air Handler

Technical Specifications

• Power Phase: 1
• Refrigerant: R-410A

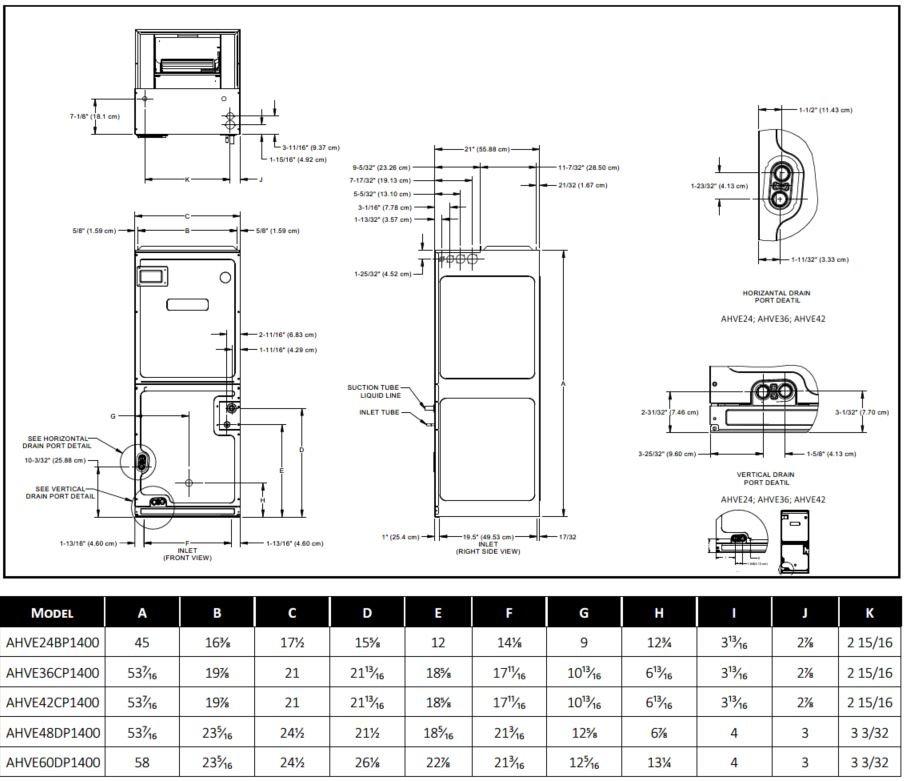

• Dimensions: 21 inches width, 21 inches depth, 53.4375 inches height
• Max. Voltage: 253
• Min. Circuit: 6.5
• Performance Capacity: 3 tons
• Airflow Rate High Cooling: 1260 CFM
• Electrical Data: 208/230 volts, 60 Hz
• Warranty: 10 Years limited parts warranty when registered
