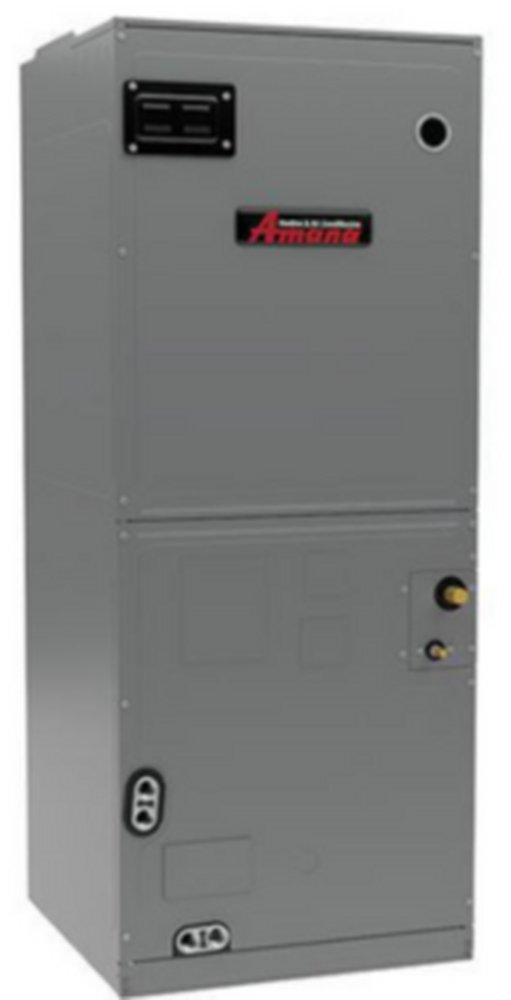

Goodman AHVE24BP1400 AHVE Air Handler, Variable Speed ECM Motor, 2 Ton

Product Description

The Goodman AHVE24BP1400 is a two-ton air handler designed for efficient air distribution in residential settings. This model features a variable speed ECM motor that adjusts air flow based on the system's needs. It can be installed in either horizontal or vertical configurations, providing flexibility for installation. Key components include an all-aluminum evaporator coil and an electronic expansion valve (EEV) which optimize cooling efficiency and comfort.

• Electronic expansion valve for precise cooling control
• Variable-speed ECM blower motor to adapt to air flow requirements
• Compatible with Daikin One+ smart thermostat

Product Highlights

The Goodman AHVE24BP1400 is built to enhance comfort and energy efficiency in HVAC systems.

Product Information

Standard Information

• Brand: Goodman
• Product Type: Air Handler

Technical Specifications

• Power Phase: 1
• Refrigerant: R-410A
• Tonnage: 2 tons

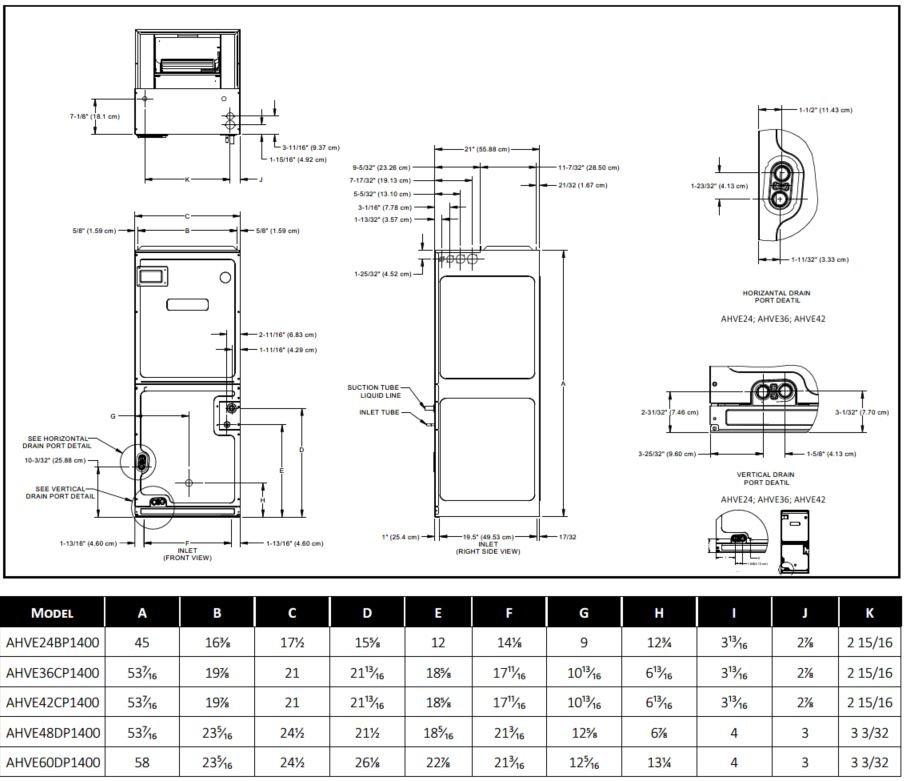

• Dimensions: 17.5 inches width x 21 inches depth x 45 inches height
• Airflow Rate: 800 CFM high cooling
• Cabinet air leakage: less than 2.0% at 1.0 inch H2O
• Warranty: 10 years parts on registered products
• Installation Location: Indoor
