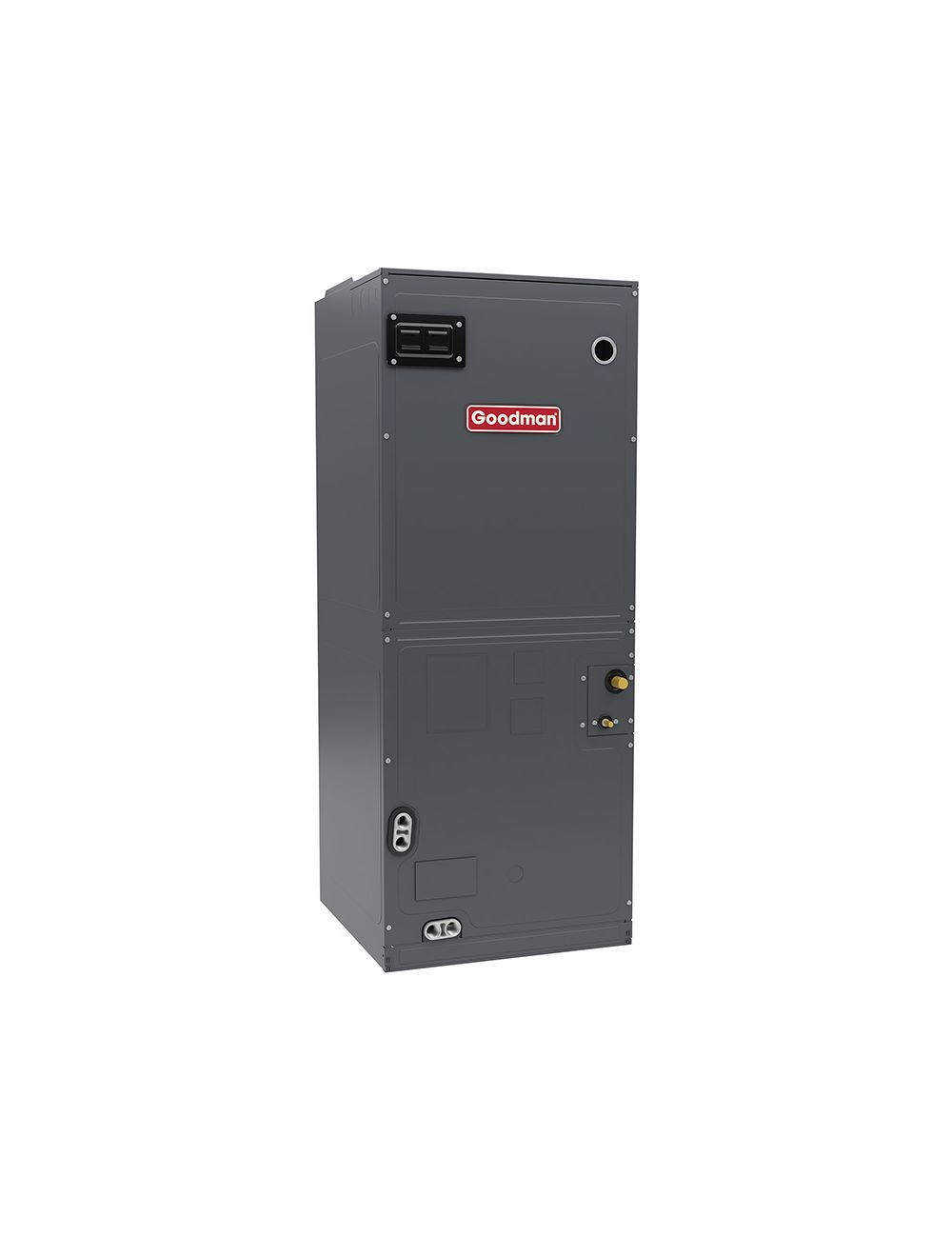

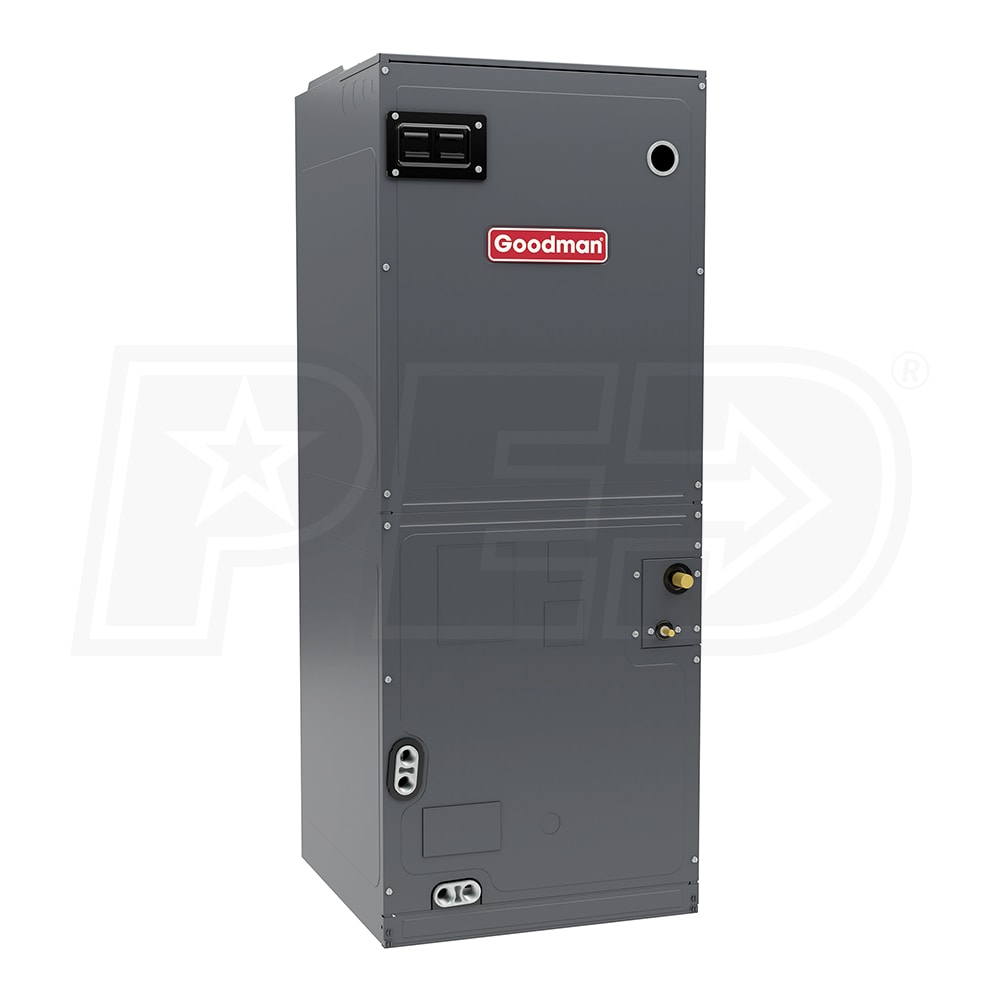

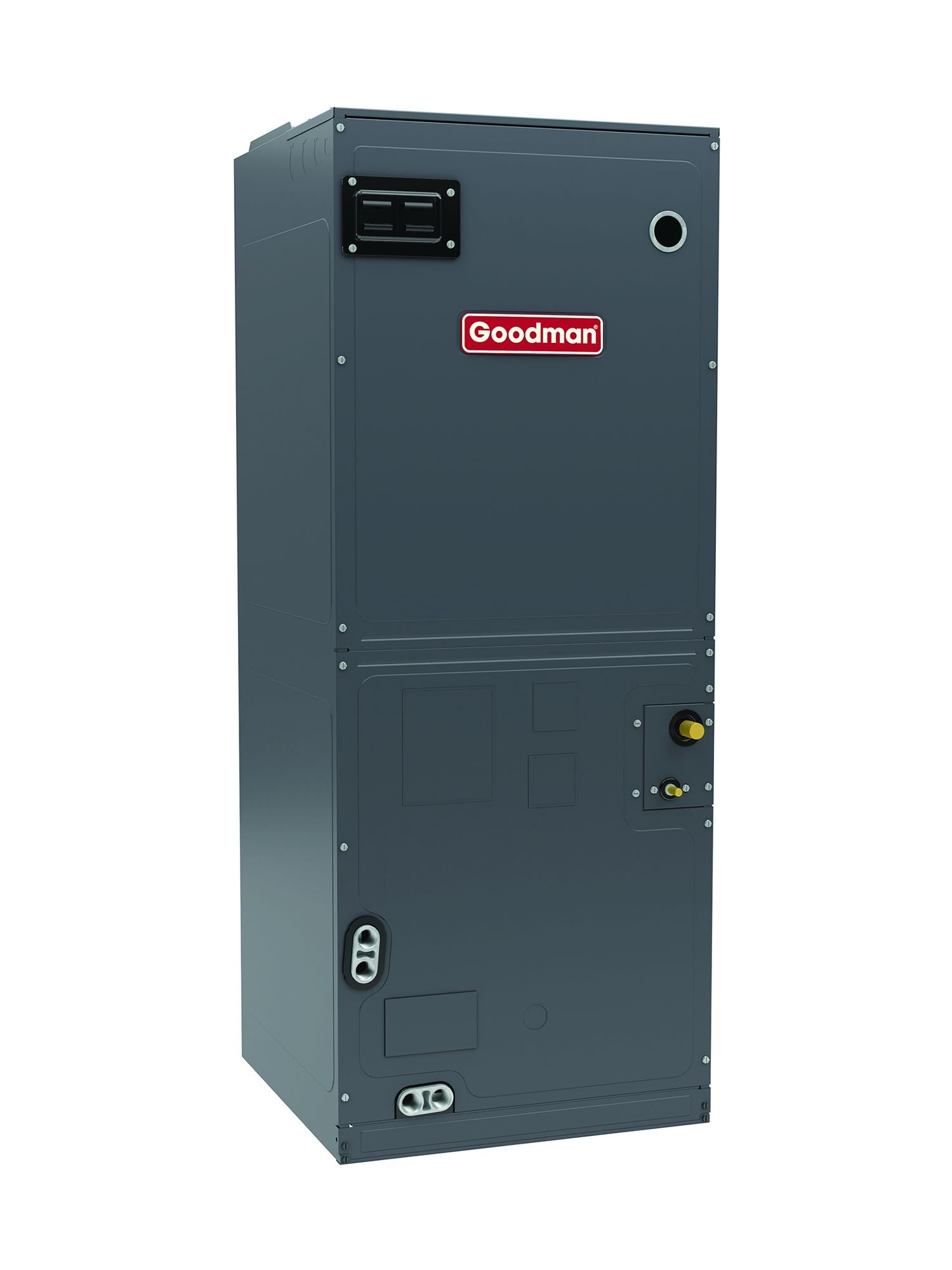

Goodman AHVE24BP1300 2 Ton Variable Speed Inverter Compatible Air Handler

GOODMAN
Brand: GOODMAN
SKU: AHVE24BP1300
Availability: In Stock

Ships same day if ordered by 12 pm
$1,718.04
$1,718.04
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The Goodman AHVE24BP1300 is a 2-ton inverter compatible air handler designed for indoor use. It effectively distributes air and features a variable-speed ECM blower motor for adaptable airflow. The unit includes an electronic expansion valve, optimized for R-32 refrigerant, which enhances its performance in cooling and heat pump applications. This air handler can be installed horizontally or vertically and has a cabinet that minimizes air leakage and reduces condensation.

  • Includes an electronic expansion valve (EEV) for precise control.

  • Equipped with a variable-speed ECM blower motor to improve efficiency.

  • Features an all-aluminum evaporator coil for enhanced durability.

Product Highlights

The Goodman AHVE24BP1300 is built for efficient cooling and heating, making it suitable for various indoor environments.

Product Information

Standard Information

  • Brand: Goodman

  • Model Number: AHVE24BP1300

Technical Specifications
Product Line
AHVE

Product Category
Air Handler

Capacity
2.0 Tons

Cooling BTU
24000

Refrigerant Type
R-32

Blower Motor Type
ECM Variable-Speed

Configuration
Horizontal

Installation Location
Indoor

Electric Heat
Available

Maximum Air Flow
800 CFM

Input Voltage
208/230 Volts

Phase
1

Frequency
60 Hz

Minimum Circuit Ampacity
4.9 Amps

Recommended Breaker Size
15 Amps

Suction Connection Size
3/4 Inch

Liquid Connection Size
3/8 Inch

Drain Outlet Diameter
3/4 Inch

Product Dimensions
17-1/2 W x 21 D x 45 H

Product Weight
100 Pounds

Shipping Weight
115 Pounds

AHRI Certified
Yes

ETL Listed
Yes

ISO Certified
Yes

Parts Warranty
10 Limited Years
