Goodman AHVE24BP1300 2 Ton Variable Speed Inverter Compatible Air Handler

Product Description

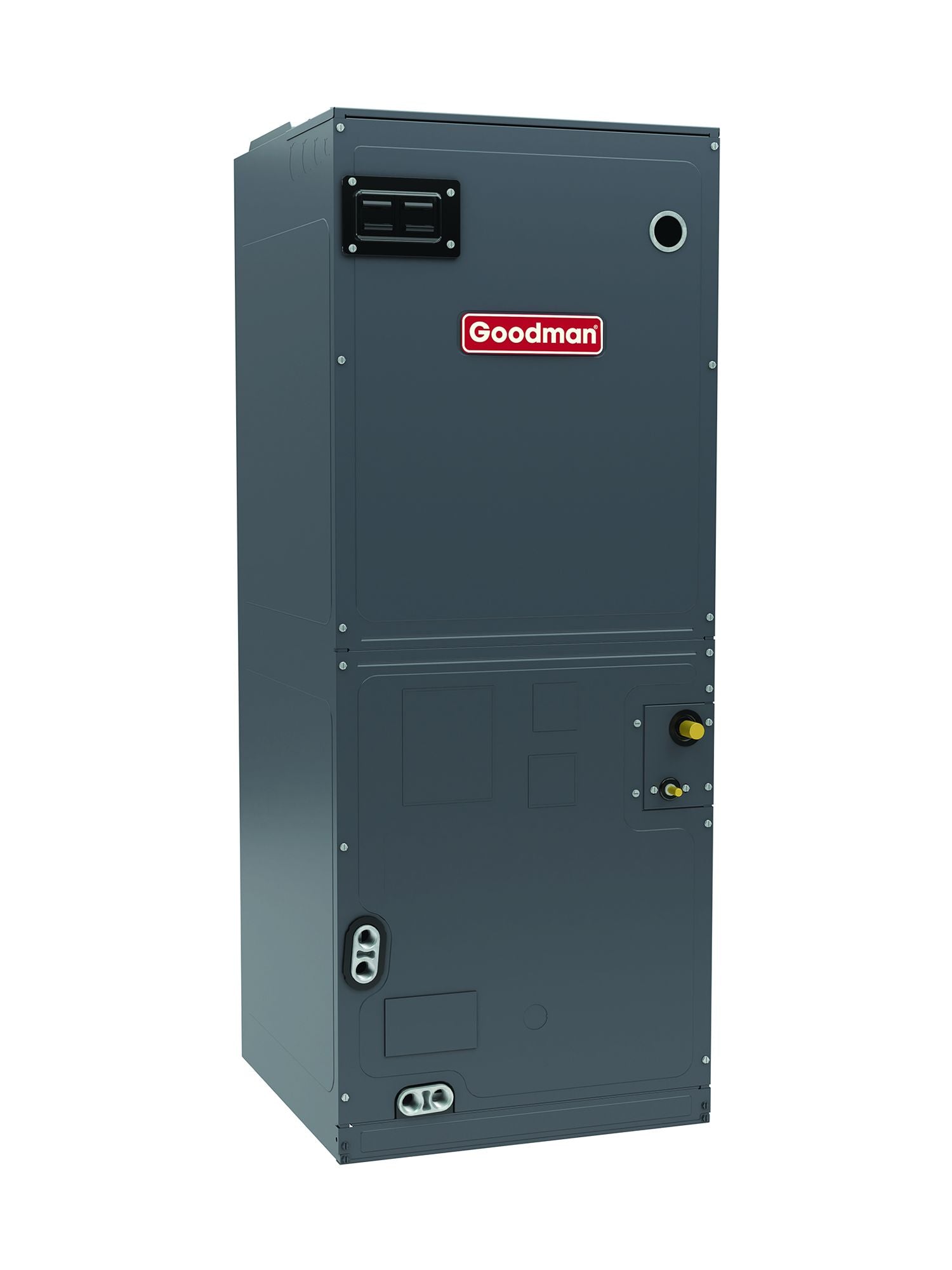

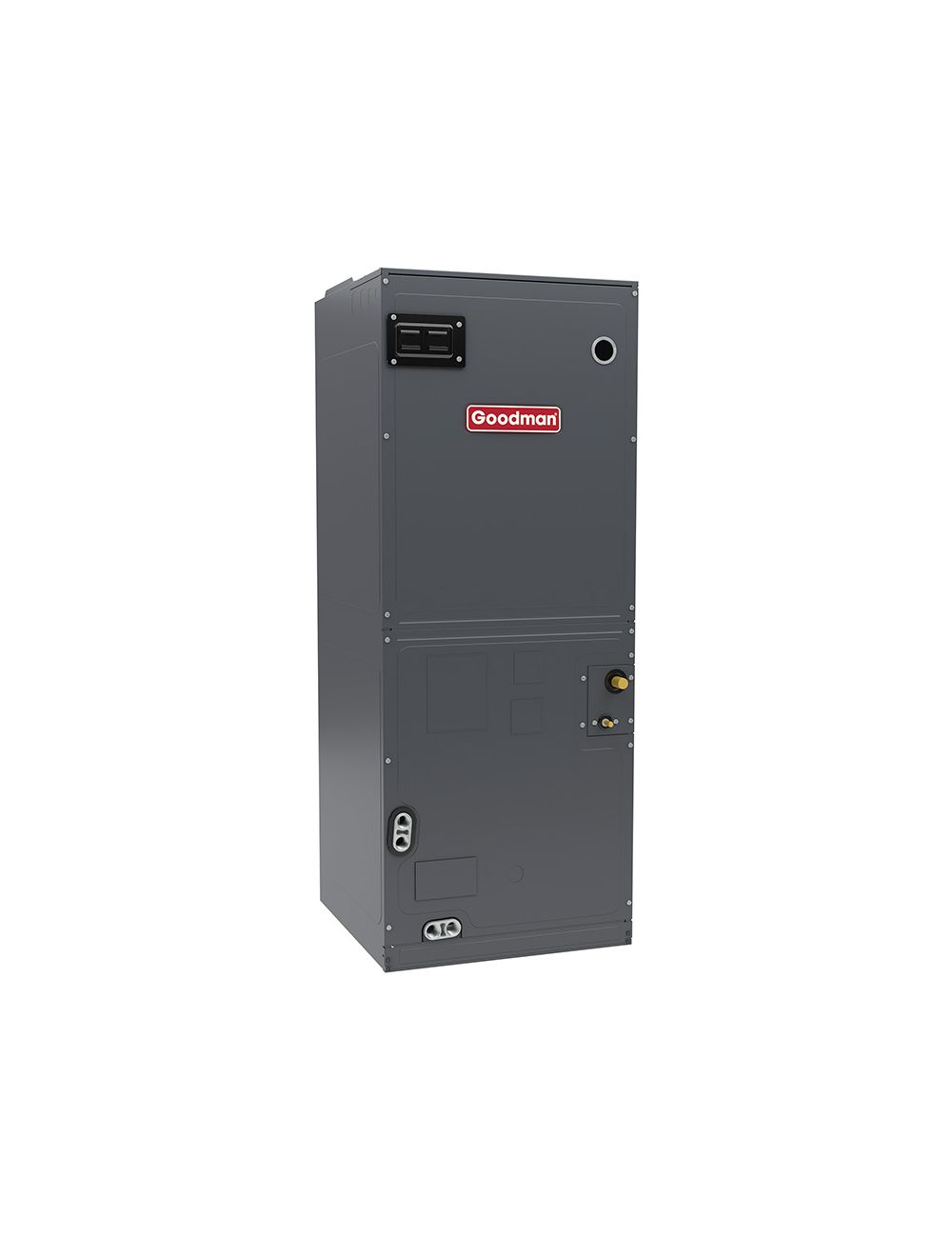

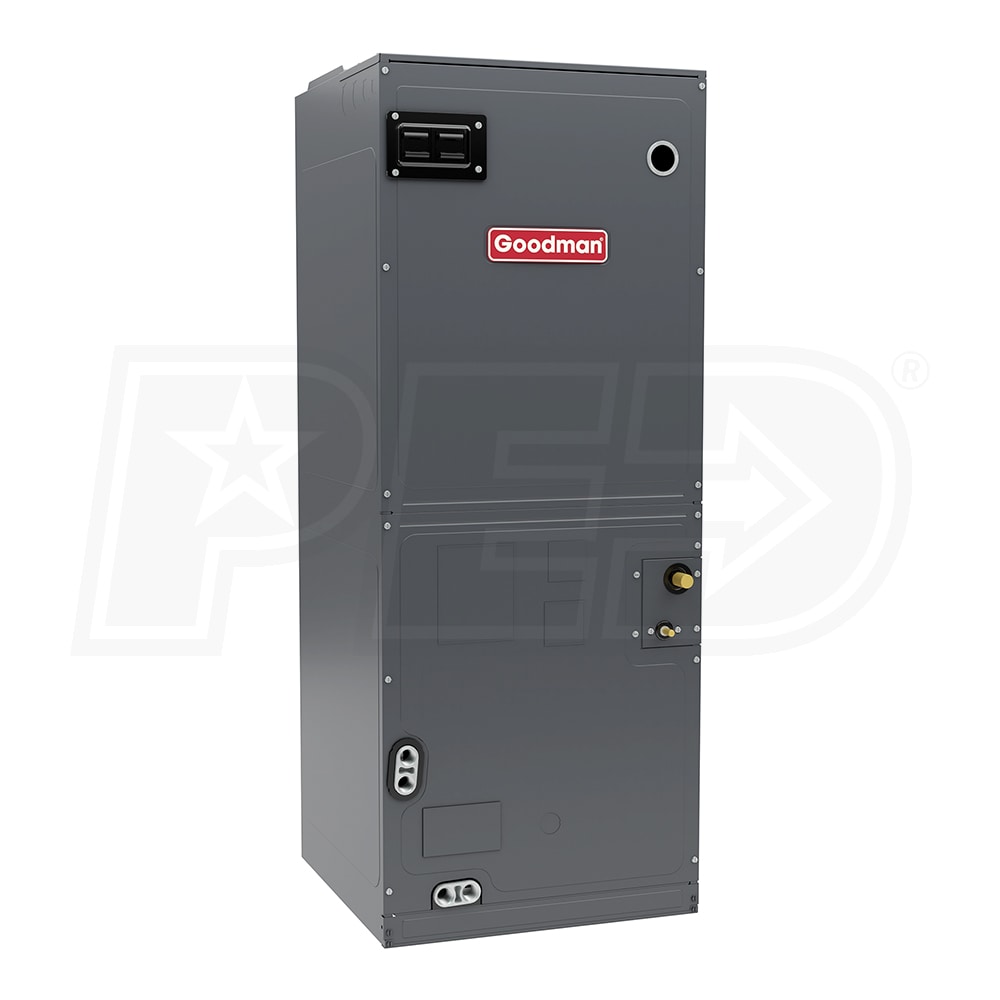

The Goodman AHVE24BP1300 is a 2-ton inverter compatible air handler designed for indoor use. It effectively distributes air and features a variable-speed ECM blower motor for adaptable airflow. The unit includes an electronic expansion valve, optimized for R-32 refrigerant, which enhances its performance in cooling and heat pump applications. This air handler can be installed horizontally or vertically and has a cabinet that minimizes air leakage and reduces condensation.

• Includes an electronic expansion valve (EEV) for precise control.

• Equipped with a variable-speed ECM blower motor to improve efficiency.

• Features an all-aluminum evaporator coil for enhanced durability.

Product Highlights

The Goodman AHVE24BP1300 is built for efficient cooling and heating, making it suitable for various indoor environments.

Product Information

Standard Information

• Brand: Goodman

• Model Number: AHVE24BP1300

Technical Specifications

• Product Line: AHVE

• Product Category: Air Handler

• Capacity: 2.0 Tons

• Cooling BTU: 24000

• Refrigerant Type: R-32

• Blower Motor Type: ECM Variable-Speed

• Configuration: Horizontal

• Installation Location: Indoor

• Electric Heat: Available

• Maximum Air Flow: 800 CFM

• Input Voltage: 208/230 Volts

• Phase: 1

• Frequency: 60 Hz

• Minimum Circuit Ampacity: 4.9 Amps

• Recommended Breaker Size: 15 Amps

• Suction Connection Size: 3/4 Inch

• Liquid Connection Size: 3/8 Inch

• Drain Outlet Diameter: 3/4 Inch

• Product Dimensions: 17-1/2 W x 21 D x 45 H

• Product Weight: 100 Pounds

• Shipping Weight: 115 Pounds

• AHRI Certified: Yes

• ETL Listed: Yes

• ISO Certified: Yes

• Parts Warranty: 10 Limited Years
