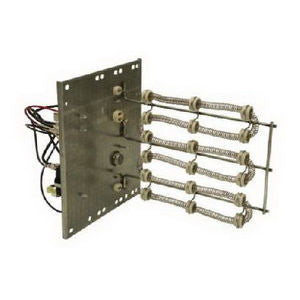

Goodman AHKD15-3 Electric Heat Kit 208/230 V 15 kW 3 Phase

Product Description

The Goodman AHKD15-3 is an electric heat kit designed for use with AR090A and AR120A model air handlers. This kit operates at 208/230 volts with 15 kW power, suitable for 60 Hz and 3-phase systems. It features nickel chromium heating elements that are rust resistant, ensuring durability in various conditions.

• Controlled by sequencers for precise temperature management
• Supports multiple branch circuits
• Includes built-in overcurrent protection

Product Highlights

This heat kit is ideal for commercial HVAC applications. It enhances heating efficiency with factory-installed circuit breakers on select models and simplifies installation through a plug-in wiring harness.

Product Information

Standard Information

• Type: 1-Stage
• Manufacturer: Goodman Manufacturing

Technical Specifications

• Voltage: 208/230 V
• Power: 15 kW
• Frequency: 60 Hz
• Phase: 3
• Material: Nickel Chromium
• Suitable For Use With: AR090A and AR120A Model Air Handlers
• Approval: ETL Listed, AHRI Certified
• Application: Commercial and HVAC Systems
