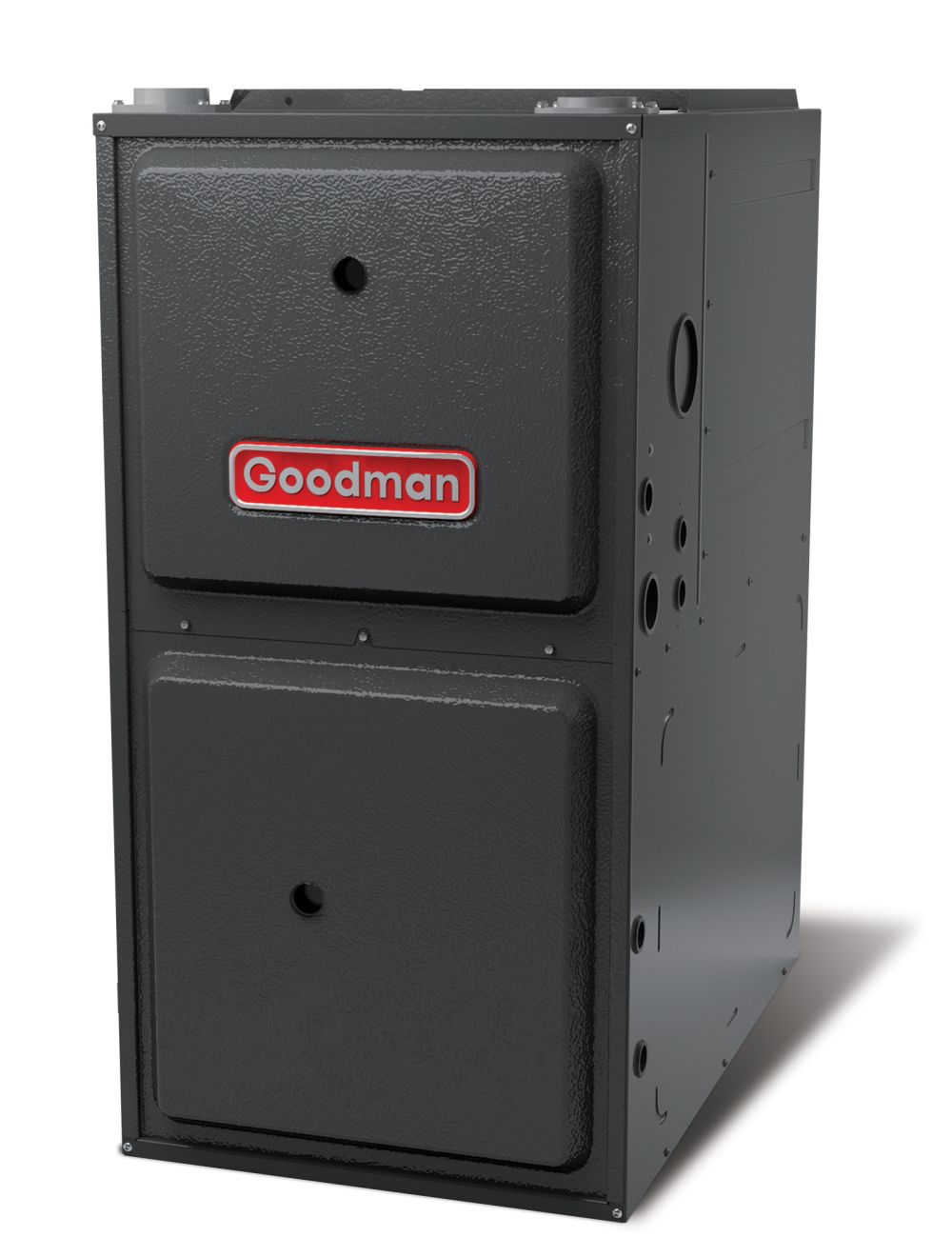

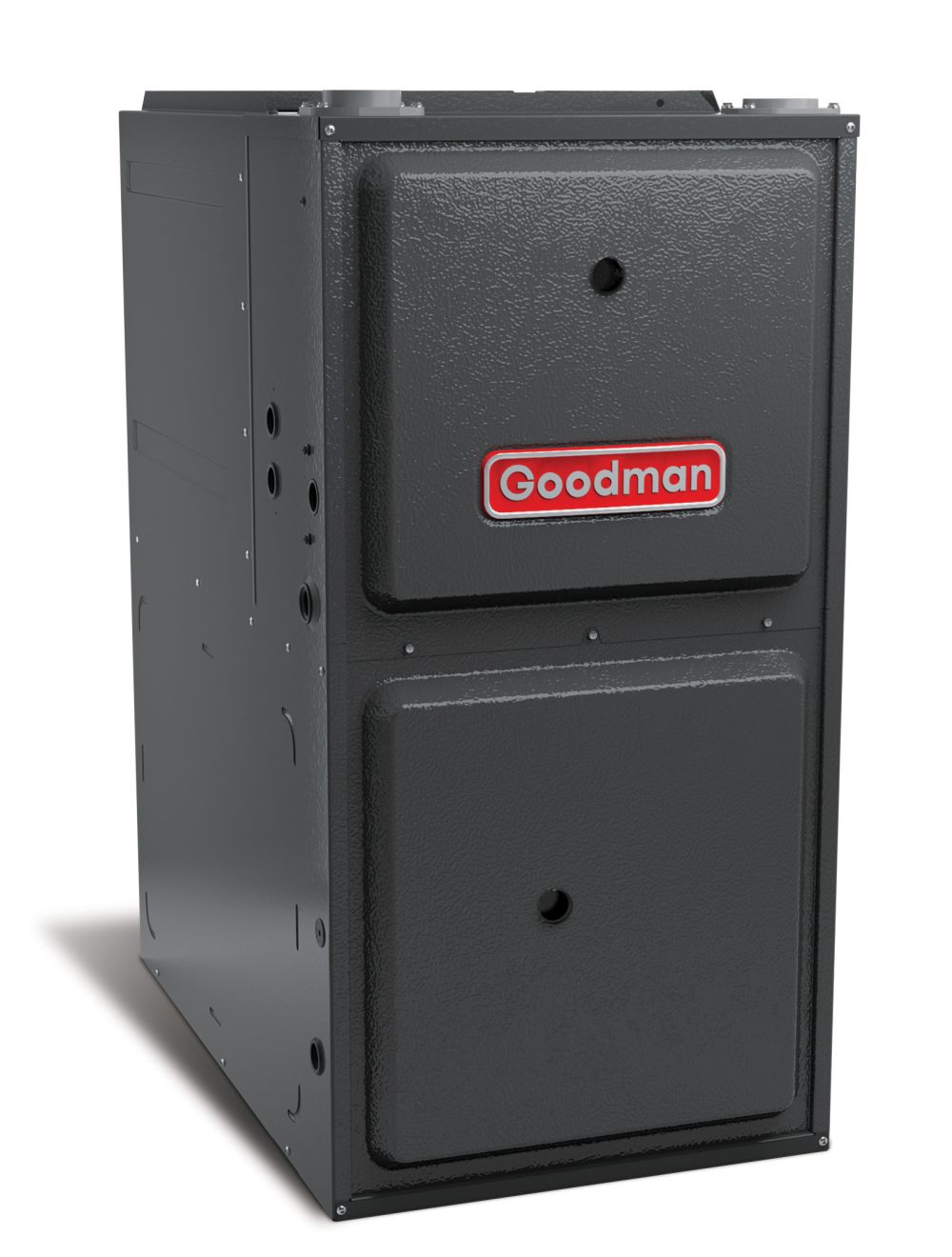

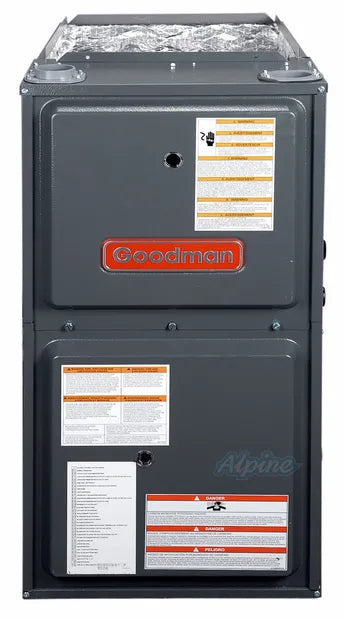

Goodman advt961005cn 100000 Btu/h 96 Afue Gas Furnace

Product Description

The GOODMAN advt961005cn is a 96 AFUE two-stage, variable-speed ECM gas furnace designed for downflow and horizontal installations. Rated at 100,000 BTU/h high-fire input with 96,100 BTU/h output, this unit delivers efficient, staged heat across residential and light-commercial applications. The variable-speed ECM blower motor runs at up to 1,250 RPM with a high-fire airflow of 1,775 cubic feet per minute, modulating output to match heating demand. A licensed HVAC technician handles installation, and the unit ships from United States manufacturing. The two-stage gas valve allows a low-fire input of 70,000 BTU/h, reducing short cycling and improving humidity management in shoulder seasons.

This furnace is intended for downflow and horizontal installations in indoor residential and multi-family settings. The Non-NOx burner configuration makes it suitable for regions with low-emissions requirements. With a nominal cooling coil match of 60,000 BTU/h and 5-ton tonnage rating, it pairs with compatible split-system cooling equipment. The unit requires a 115-volt, single-phase, 60 Hz power supply with a minimum circuit ampacity of 13.8 amps and maximum overcurrent protection of 20 amps. Temperature rise range at both high and low fire is 35 to 65 degrees F.

Key Features

• 96 AFUE two-stage combustion with 100,000 BTU/h high-fire and 70,000 BTU/h low-fire input
• Variable-speed ECM blower motor rated at 1,250 RPM for quiet, efficient airflow modulation
• Downflow and horizontal installation configuration for flexible placement
• Non-NOx burner design meets low-emissions standards in restricted air districts
• Communication-capable controls support compatible thermostat and zoning systems
• ANSI certified and ETL listed; produced in the United States
• 5-burner heat exchanger with 2-inch or 3-inch venting options

Compatibility

Designed for downflow and horizontal installation as an indoor gas furnace. Nominal cooling match is rated at 60,000 BTU/h (5 tons). Vent connections accept 2-inch or 3-inch diameter flue pipe. No specific compatible model numbers or replacement part numbers were provided in the product data.

Installation Notes

Installation must be performed by a licensed HVAC technician in accordance with local codes, the National Fuel Gas Code (NFPA 54), and the manufacturer installation instructions. Shut off the gas supply and disconnect electrical power before any service or connection work. Maintain a minimum clearance of 0.5 feet to combustible materials as specified. Do not reduce vent diameter below the minimum listed for the flue configuration selected.

Technical Specifications

• AFUE: 96%
• High-Fire Input Capacity: 100,000 BTU/h
• High-Fire Output Capacity: 96,100 BTU/h
• Low-Fire Input Capacity: 70,000 BTU/h
• Low-Fire Output Capacity: 67,270 BTU/h
• Cooling Capacity (Nominal): 60,000 BTU/h
• Tonnage: 5 tons
• Gas Valve Type: Two Stage
• Motor Speed Type: Variable Speed ECM
• Blower Motor RPM: 1,250 RPM
• Blower Motor Horsepower: 1 metric hp
• Blower Diameter: 11 inches
• Blower Width: 10 inches
• Airflow Rate High Fire: 1,775 ft3/min
• Airflow Rate Low Fire: 1,240 ft3/min
• Temperature Rise Range: 35-65 degrees F (high and low fire)
• Power Voltage: 115 volts AC, 1-phase, 60 Hz
• Minimum Circuit Amps: 13.8 amps
• Max Overcurrent Protection: 20 amps
• Installation Configuration: Downflow/Horizontal
• Unit Type: Indoor
• Burner Type: Non-NOx
• Number of Burners: 5
• Vent Diameter: 2 inches or 3 inches
• External Static Pressure (Rated): 0.5 in wg
• Filter Quantity: 1
• Filter Size (Min): 20x25
• Unit Height: 34.5 inches
• Unit Width: 21 inches
• Unit Depth: 28.875 inches
• Unit Weight: 145 pounds
• Minimum Clearance to Combustibles: 0.5 feet
• Communication Feature: Yes
• ANSI Certified: Yes
• ETL Listed: Yes
• Country of Origin: United States
• Registered Residential Parts Warranty: All Parts 10 Years; Heat Exchanger 20 Years
• Standard Residential Parts Warranty: All Parts 5 Years; Heat Exchanger 20 Years

Standard Information

• Brand: GOODMAN
• Manufacturer Part Number: advt961005cn
