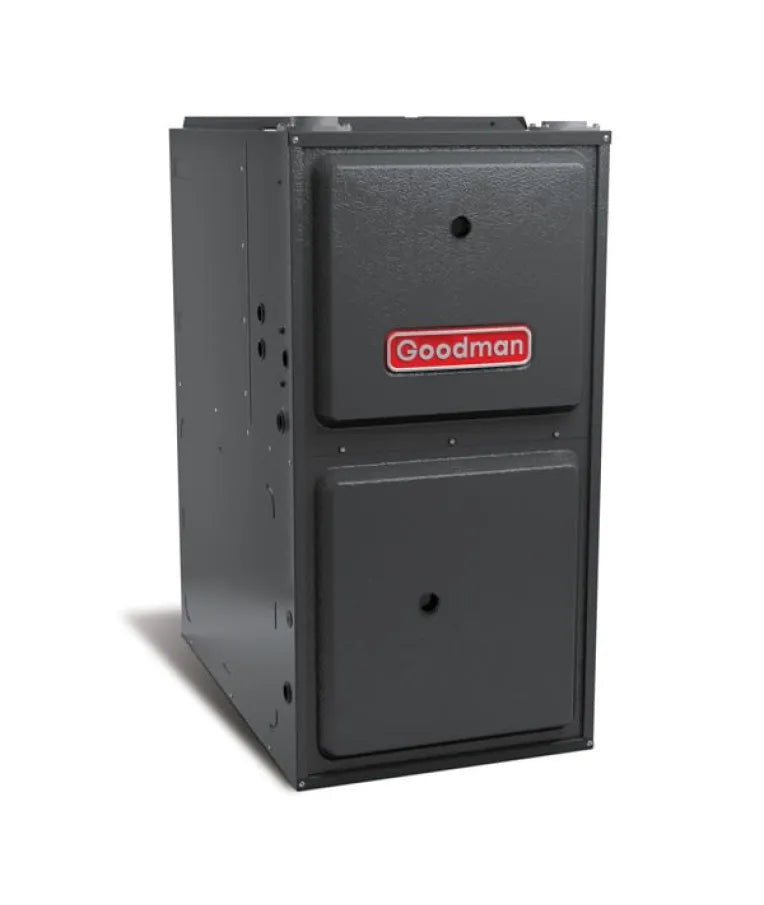

Goodman ADVM970803BN GMVM97 80k BTU Modulating Gas Furnace

Product Description

The GOODMAN GMVM970803BN is a high-efficiency gas furnace with a modulating gas valve and variable-speed circulating blower for efficient performance. It utilizes dual steel heat exchangers, a modulating gas valve, and a variable speed blower motor to heat your home at 97% efficiency. The gas valve and motor scale their performance to your home's demand to ensure consistent comfort.

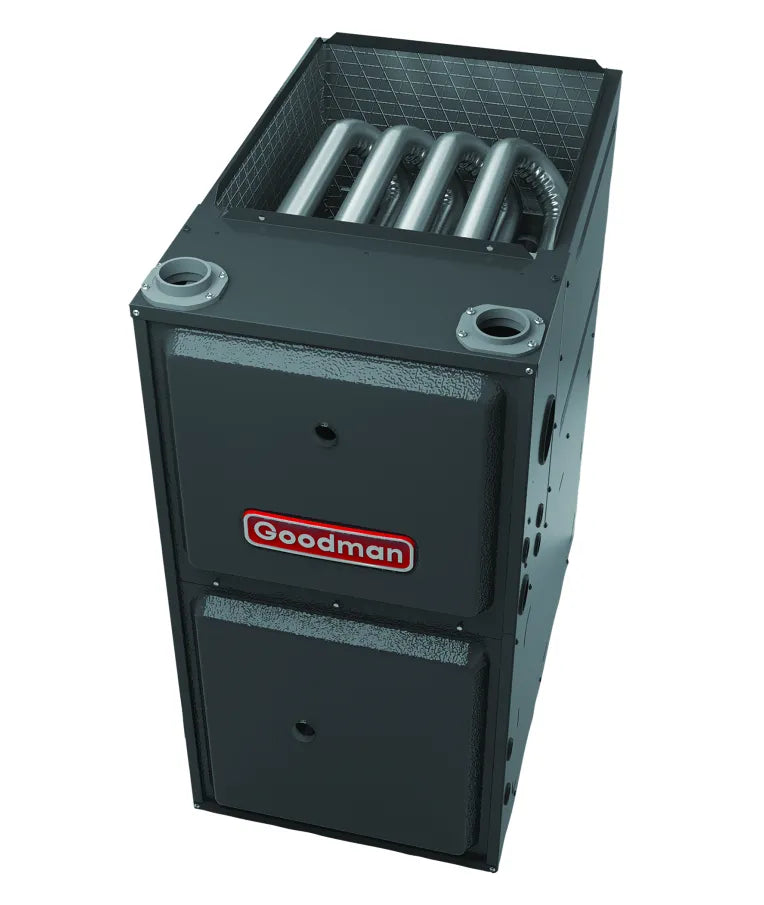

• Advanced Heat Exchanger Design
• Quiet Comfort
• ComfortBridge Compatible
• Multiple continuous fan speed options offer quiet air circulation
• All models comply with California Low NOx emissions standards

Product Highlights

This furnace offers several venting options to streamline installation in a variety of applications. It can be used in either a two-pipe direct vent setup or a single-pipe configuration with combustion air.

Product Information

Standard Information

• Brand: GOODMAN
• Manufacturer Part Number: ADVM970803BN

Technical Specifications

• Product Category: Furnace
• UPC: 663051573406
• Type: Gas Furnace
• Product Line: GMVM97
• Fuel Type: Natural Gas
• Vent Type: Direct Vent
• Modulating/Staging: Modulating
• Blower Motor Type: ECM Variable-Speed
• Configuration: Upflow/Horizontal
• Gas Conversion Kit: Available
• DOE Regional Compliance: Nationwide (Except CA)
• AFUE: 97 %
• Heating BTU: 80000
• High Fire Input: 80000 BTU
• High Fire Output: 77600 BTU
• Low Fire Input: 40000 BTU
• Low Fire Output: 38800 BTU
• Maximum Air Flow: 1200 CFM
• Ultra Low NOx Emissions: No
• Low NOx Emissions: Yes
• Voltage: 115 Volts
• Phase: 1
• Frequency: 60 Hz
• Minimum Circuit Ampacity: 8.8 Amps
• Recommended Breaker Size: 15 Amps
• Flue Connection Size: 2 or 3 Inches
• Cabinet Width: 17 1/2 Inches
• Product Height: 34 1/2 Inches
• Product Width: 17 1/2 Inches
• Product Depth: 28 3/4 Inches
• Energy Star Listed: Yes
• ETL Listed: Yes
• AHRI Certified: Yes
• ISO Certified: Yes
• AHRI Reference Number: 7424265
• Base Altitude Range: 0-10000 ft.
• Mobile Home Compatible: No
• RDS (Refrigerant Detection System) On-Board: No
• Minimum Heat Input: 40000 BTU
• Minimum Heat Output: 39000 BTU
• Maximum Heat Input: 80000 BTU
• High Output Heat: 78000 BTU
• Stages of Heat: Modulating
• Blower Cooling Capacity: 1.5 / 2 / 2.5 / 3 Tons
• Blower Type: Variable Speed
• Maximum CFM: 1200 @ 0.5
• Voltage Phase: 1
• Maximum Fuse/Breaker: 15 Amps
• Cabinet/Chassis Size: B
• Depth: 28 7/8 Inches
• Height: 34 1/2 Inches
• ENERGY STAR ID: 2313629
• ENERGY STAR Certified: Yes
• Qualified Manufacturer ID (QMID): I7Q6
• California Approved Furnace: Yes
• Emission Standard: Low NOx
• Item model number: GMVM970803BN
• Size: 80K BTU (Heating), 17.5" (Cabinet Width)
• Item Package Quantity: 1
• Air Flow Capacity: 1200 Cubic Feet Per Minute
• Vent Connection: 2 Inches
• Return Air Opening Size: 14 x 23 inches
• Flue Pipe Diameter: 2 or 3
• Supply Air Opening Size: 16 x 19.5 Inches
