Goodman ad9s800603an Gas Furnace 60K Btu 80 Afue Downflow

Product Description

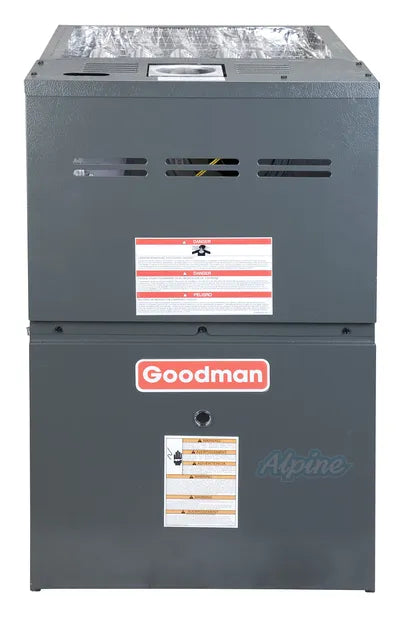

The GOODMAN ad9s800603an is a single-stage, multi-speed ECM gas furnace rated at 80 AFUE with a high-fire input capacity of 60,000 BTU/h and a high-fire output of 48,000 BTU/h. Configured for downflow and horizontal installation, it operates on a single-phase 115-volt, 60 Hz AC power supply with a minimum circuit amperage of 8.7 amps and a maximum overcurrent protection of 15 amps. The unit is designed for ducted indoor applications and is ANSI certified. Licensed HVAC technicians handle installation and commissioning of this unit in both new-construction and replacement scenarios.

This furnace is suited for residential and light-commercial ducted systems requiring downflow or horizontal airflow orientation. With a nominal cooling capacity pairing of 36,000 BTU/h (3 tons), it is sized for mid-range residential loads. The non-NOx burner configuration makes it compatible with installations in regions subject to low-NOx emissions requirements. The 14-inch unit width fits standard platform or utility-closet downflow applications, and the multi-speed blower motor supports variable airflow matching across system configurations.

Key Features

• 80 AFUE efficiency rating for standard-efficiency gas heating applications
• Single-stage gas valve with multi-speed ECM blower motor for flexible airflow delivery
• Downflow and horizontal installation configurations supported
• Non-NOx burner type for compliance in low-emissions jurisdictions
• ANSI certified unit with gas heat exchanger construction
• High-fire airflow rate of 991 cubic feet per minute at heating mode

Compatibility

Designed as an OEM-specification downflow and horizontal gas furnace for ducted residential and light-commercial heating systems requiring a 3-ton nominal cooling match and 80 AFUE single-stage heating performance.

Installation Notes

Installation must be performed by a licensed HVAC technician in accordance with local mechanical codes, the National Fuel Gas Code (NFPA 54), and the manufacturer installation instructions. Shut off gas supply and disconnect electrical power at the disconnect switch before beginning any connection or service work. Verify flue venting meets applicable B-vent or direct-vent requirements for the installation configuration selected. Do not exceed the rated maximum overcurrent protection of 15 amps when sizing the branch circuit.

Technical Specifications

• AFUE: 80
• High-Fire Input Capacity: 60,000 BTU/h
• High-Fire Output Capacity: 48,000 BTU/h
• Nominal Cooling Capacity: 36,000 BTU/h (3 Ton)
• Gas Valve Type: Single Stage
• Motor Speed Type: Multi-Speed ECM
• Installation Configuration: Downflow/Horizontal
• Power Voltage: 115 volts AC
• Power Phase: 1 Phase
• Power Frequency: 60 Hz
• Minimum Circuit Amps: 8.7 amps
• Max Overcurrent Protection: 15 amps
• Blower Motor Horsepower: 1/2 hp
• Blower Diameter: 10 inches
• Blower Width: 6 inches
• Air Flow Rate High Fire Heating: 991 ft3/min
• Temperature Rise Range High Fire: 30-60 degrees F
• Unit Width: 14 inches
• Unit Height: 33-3/8 inches
• Unit Depth: 28 inches
• Unit Weight: 94 pounds
• Heat Exchanger Type: Gas
• Burner Type: Non-NOx
• Unit Type: Indoor Ducted
• ANSI Certified: Yes
• Standard Parts Warranty (Residential): All Parts 5 Years; Heat Exchanger 20 Years
• Registered Parts Warranty (Residential): All Parts 10 Years; Heat Exchanger 79 Years

Standard Information

• Brand: GOODMAN
• Manufacturer Part Number: ad9s800603an
