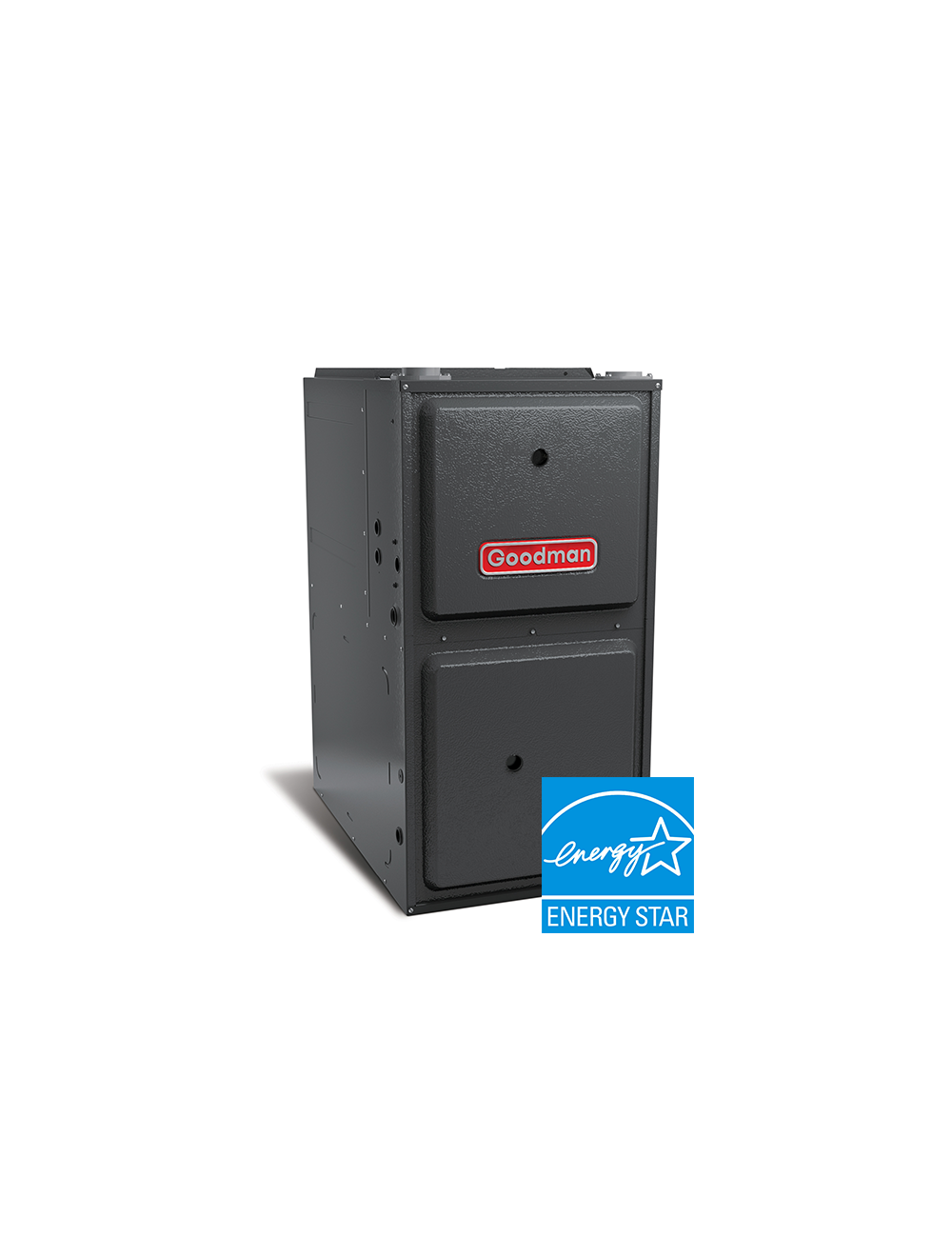

Goodman acvc960603bn 60K Btu 96 Afue Two Stage Gas Furnace

Product Description

The Goodman acvc960603bn is a 96 AFUE two-stage, variable-speed ECM gas furnace designed for downflow and horizontal installation in ducted residential and light commercial HVAC systems. It delivers 60,000 BTU/h at high-fire input with 57,660 BTU/h output, and steps down to 42,000 BTU/h at low-fire for more efficient part-load operation. The ECM blower motor runs at variable speed up to 1,250 RPM and supports nominal cooling capacity from 1.5 to 3 tons. ComfortBridge Technology communication compatibility allows integration with compatible thermostats and controls. Licensed HVAC technicians handle installation, sizing, and commissioning. The unit is ENERGY STAR certified, ANSI certified, ETL Listed, and FER compliant, and is produced in the United States.

This furnace is configured for downflow or horizontal airflow, making it suitable for closet, alcove, and attic installations where upflow is not possible. The 17.5-inch cabinet width fits standard platform and platform-with-filter configurations. With a blower capable of 1,400 CFM at high heat and 1,070 CFM at low heat, it is appropriate for residential systems requiring up to 3 tons of matched cooling capacity. The non-NOx burner configuration meets low-emissions requirements in applicable jurisdictions. The unit accepts a 16x25 filter and uses a 2-inch or 3-inch vent diameter depending on the venting configuration selected at installation.

Key Features

• 96 AFUE two-stage gas valve reduces short-cycling and improves comfort at part-load conditions
• Variable-speed ECM blower motor provides quiet, efficient airflow with high-fire capacity of 1,400 CFM
• ComfortBridge Technology compatible for communicating system integration
• Downflow and horizontal installation configurations supported in a 17.5-inch wide cabinet
• Non-NOx burner design for low-emissions compliance
• ENERGY STAR certified, ANSI certified, and ETL Listed
• Accepts 2-inch or 3-inch vent diameter for flexible venting options

Compatibility

Compatible accessory and component references from manufacturer data include: 0170K00000S, 0170K00001S, CFSB17, CVENT-2, CVENT-3, EFR02, HASFK-1, LPLP03, and LPM-08. AHRI Reference Number: 7368877. Designed as an OEM downflow and horizontal gas furnace for ducted residential systems requiring a 17.5-inch cabinet width and up to 3-ton matched cooling.

Installation Notes

Installation must be performed by a licensed HVAC technician in accordance with local mechanical codes and the manufacturer installation instructions. Shut off gas supply and disconnect electrical power before servicing or replacing any components. Venting must be installed per NFPA 54 and applicable local codes using the appropriate 2-inch or 3-inch vent diameter fittings. Minimum clearances to combustible materials must be observed as specified in the installation documentation.

Technical Specifications

• AFUE: 96%
• High-Fire Input Capacity: 60,000 BTU/h
• High-Fire Output Capacity: 57,660 BTU/h
• Low-Fire Input Capacity: 42,000 BTU/h
• Low-Fire Output Capacity: 40,362 BTU/h
• Nominal Cooling Capacity: 36,000 BTU/h (3 tons)
• Blower Available AC Tonnage Range: 1.5 to 3 tons
• Air Flow Rate High Fire: 1,400 CFM
• Air Flow Rate Low Fire: 1,070 CFM
• Motor Speed Type: Variable Speed ECM
• Blower Motor Horsepower: 1/2 hp
• Blower Motor RPM: 1,250 RPM
• Blower Diameter: 11 inches
• Blower Width: 8 inches
• Power Voltage: 115 volts, 1-phase, 60 Hz AC
• Minimum Circuit Amps: 7.6 amps
• Max Overcurrent Protection: 15 amps
• Temperature Rise Range: 20-50 degrees F (high and low fire)
• External Static Pressure Rated: 0.5 inches water column
• Gas Valve Type: Two Stage Convertible
• Number of Burners: 3
• Burner Type: Non-NOx
• Heat Exchanger Type: Gas
• Vent Diameter: 2 inches or 3 inches
• Installation Configuration: Downflow / Horizontal
• Unit Width: 17.5 inches
• Unit Height: 34.5 inches
• Unit Depth: 28.75 inches
• Unit Weight: 119 pounds
• Filter Quantity: 1
• Filter Size Minimum: 16x25 inches
• Communication Feature: ComfortBridge Technology compatible
• Certifications: ENERGY STAR, ANSI, ETL Listed, FER Compliant
• Country of Origin: United States
• AHRI Reference Number: 7368877
• Registered Residential Parts Warranty: Heat Exchanger - 20 Years Parts; All Parts - 10 Years Parts
• Registered Residential Unit Replacement Warranty: Heat Exchanger - 10 Years Unit Replacement
• Standard Residential Parts Warranty: Heat Exchanger - 20 Years Parts; All Parts - 5 Years Parts

Standard Information

• Brand: Goodman
• Manufacturer Part Number: acvc960603bn
