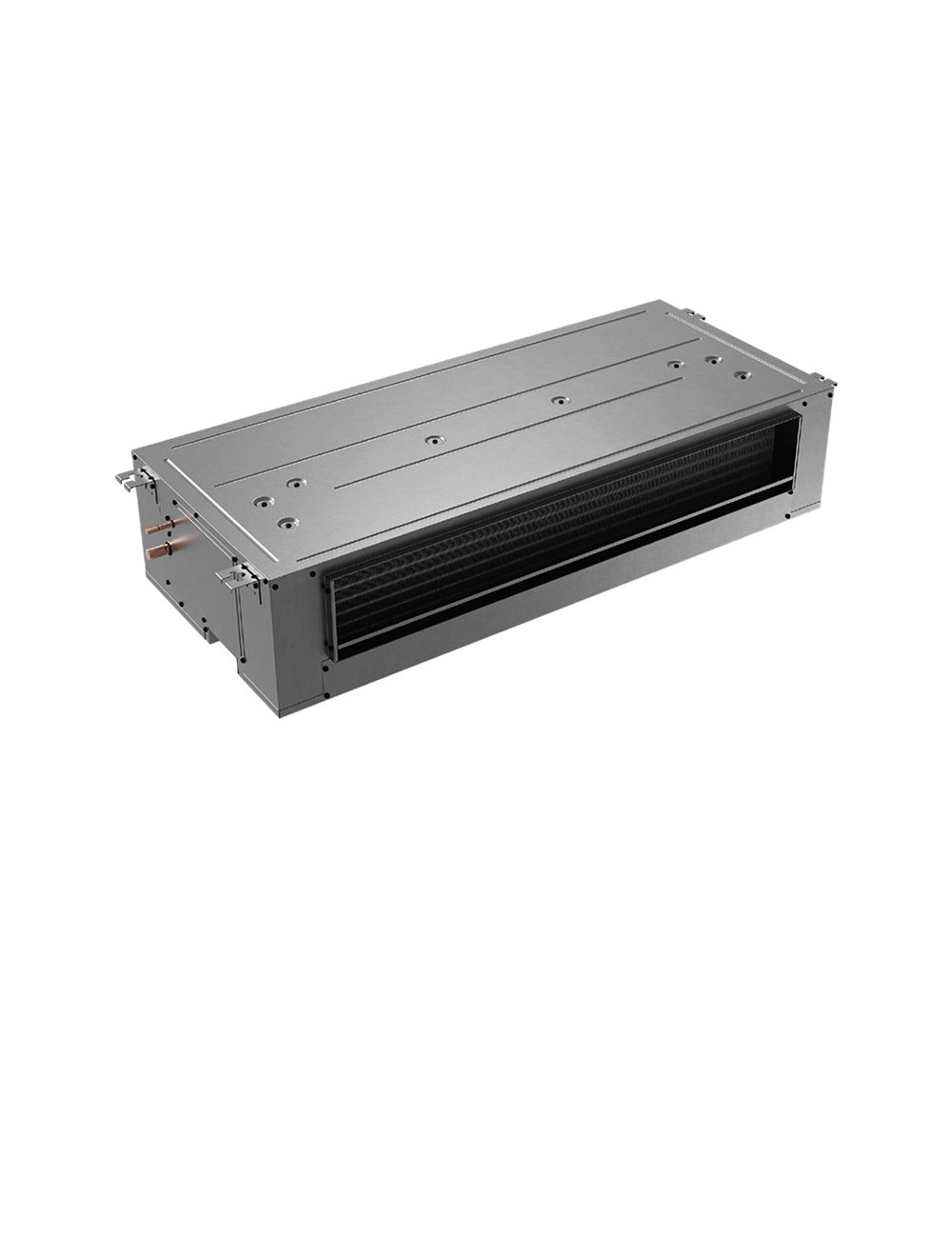

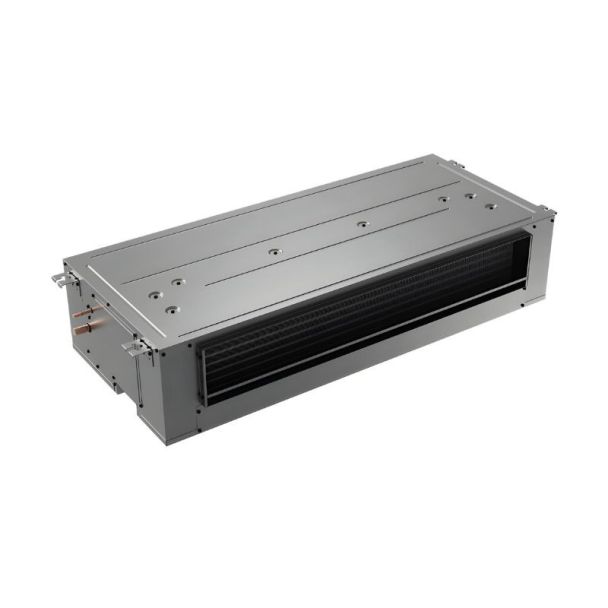

GOODMAN ACST30LU1310 2.5 Ton Ceiling Mount Air Handler with 10kW Electric Heat

Product Description

The Goodman ACST30LU1310 is designed for ceiling-mounted installations, providing an efficient solution for indoor climate control. This unit has a 2.5-ton capacity and utilizes R-32 refrigerant for better environmental performance. It comes with a built-in 10kW electric heat kit for supplemental heating needs.

• Multi-speed ECM motor for versatile performance.
• All-aluminum coil enhances durability and efficiency.
• Factory-installed TXV and pull-type disconnect included.

Product Highlights

Perfect for free-return installations, the Goodman ACST30LU1310 is optimized for R-32 refrigerant, making it a suitable choice for various HVAC applications.

Product Information

Standard Information

• Brand: Goodman
• MPN: ACST30LU1310

Technical Specifications

• Type: Air Handler
• Product Line: ACST
• Tonnage: 2.5 Ton
• Cooling BTU: 30000
• Refrigerant Type: R-32
• Blower Motor Type: ECM Multi-Speed
• Maximum Air Flow: 934 CFM
• Electric Heat Capacity: 10.0 kW
• Voltage: 208/230 Volts
• Minimum Circuit Ampacity: 47.6 Amps
• Recommended Breaker Size: 60 Amps
• Cabinet Width: 54.2 Inches
• Height: 11 Inches
• Width: 54.2 Inches
• Depth: 22.27 Inches
• Product Weight: 82 Pounds
• AHRI Certified: Yes
• ETL Listed: Yes
