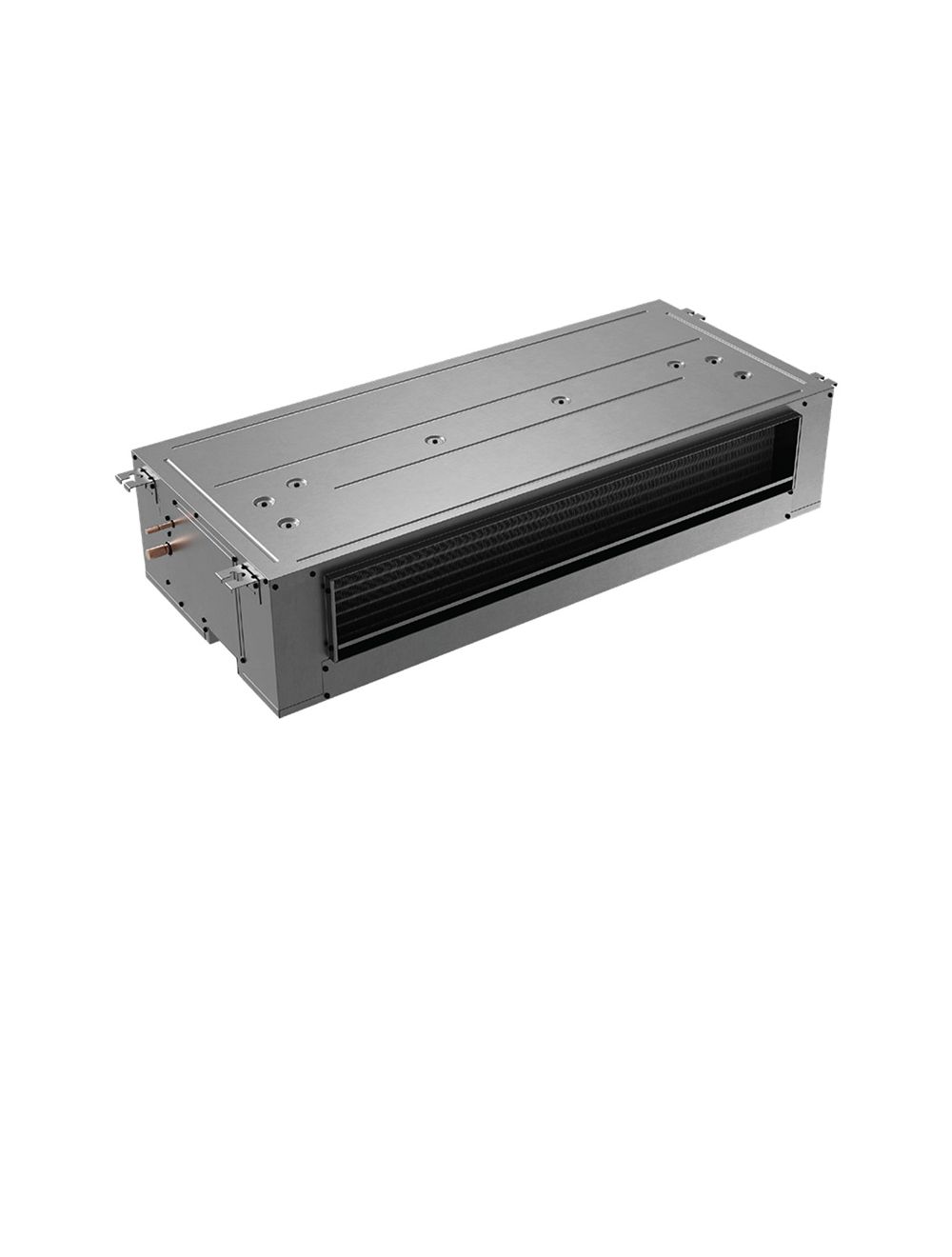

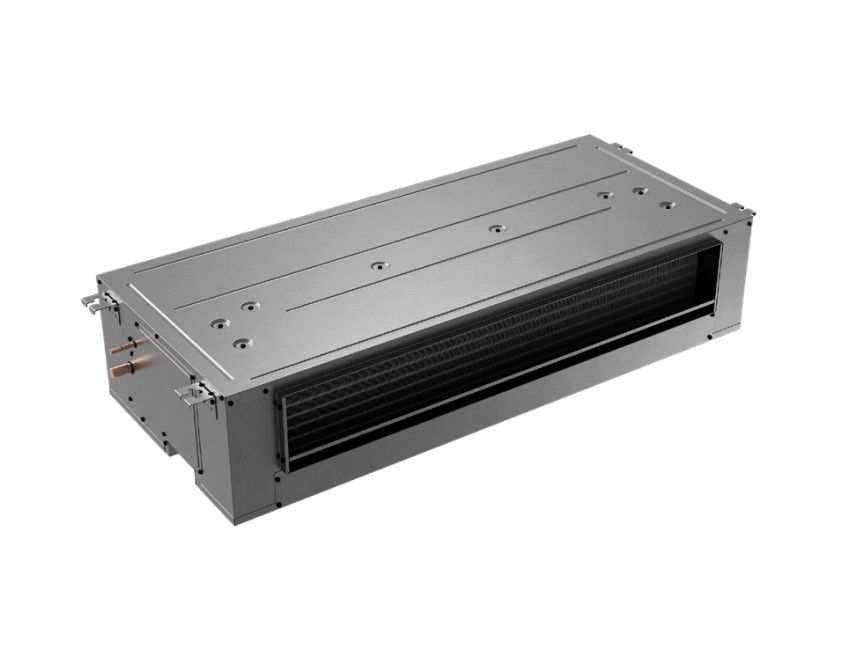

Goodman ACST30LU1306 2.5 Ton Ceiling Mount Air Handler with 6kW Electric Heat

Product Description

The Goodman ACST30LU1306 is a ceiling-mounted air handler designed to provide effective cooling and heating solutions. This unit utilizes R-32 refrigerant and features a durable all-aluminum coil. It is equipped with a direct-drive, multi-speed ECM motor that ensures energy-efficient operation. Additionally, it contains rust-resistant heating elements controlled through a sequence for reliable heating performance.

• Equipped with a multi-speed ECM motor.
• Features durable galvanized-steel construction.
• Optimized for R-32 refrigerant use.

Product Highlights

This air handler is constructed for indoor installation and has a cooling capacity of thirty thousand BTUs. With a maximum airflow of nine hundred thirty-four cubic feet per minute, it is suited for various indoor applications.

Product Information

Standard Information

• Brand: Goodman
• Model Number: ACST30LU1306

Technical Specifications

• Product Line: ACST
• Category: Air Handlers
• Type: Air Handler
• Configuration: Ceiling Mounted
• Tonnage: 2.5 Tons
• Cooling BTU: 30000
• Electric Heat: Yes
• Electric Heat Capacity: 6.0 kW
• Refrigerant Type: R-32
• Blower Motor Type: ECM Multi-Speed
• Maximum Air Flow: 934 CFM
• Input Voltage: 208/230 Volts
• Minimum Circuit Ampacity: 29.6 Amps
• Recommended Breaker Size: 35 Amps
• Suction Connection Size: 3/4 Inch
• Liquid Connection Size: 3/8 Inch
• Drain Outlet Diameter: 3/4 Inch
• TXV Installed: Yes
• Cabinet Width: 54 5/24 Inches
• Height: 11 1/4 Inches
• Depth: 22 1/4 Inches
• Product Weight: 82 Pounds
• Total Shipping Weight: 97 Pounds
• Parts Warranty: 10 Limited Years
