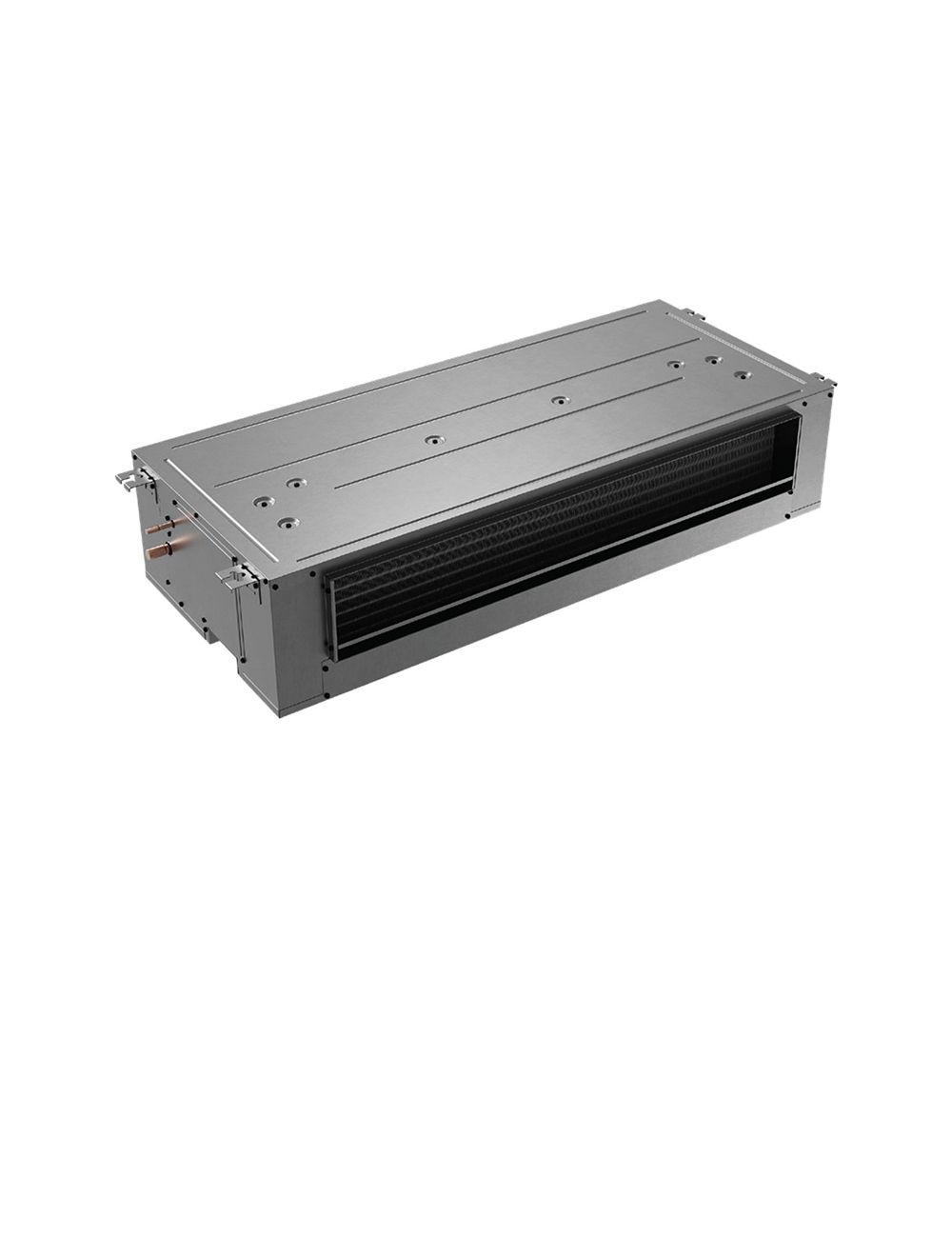

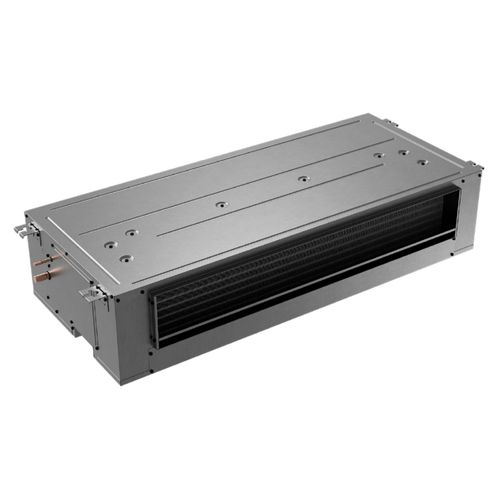

Goodman ACST30LU1305 2.5 Ton Ceiling Mount Air Handler

Product Description

The Goodman ACST30LU1305 is a 2.5-ton air handler for ceiling mount installation. This unit features an all-aluminum coil and a multi-speed motor, making it efficient for various indoor applications. It includes a factory-installed thermal expansion valve (TXV) and rust-resistant nickel chromium heating elements for enhanced durability.

• Capacity of 2.5 tons for spaces between twelve hundred and fifteen hundred square feet.
• Multi-speed motor and electric heating capability.
• Constructed with a high-temperature plastic drain pan for secure drainage.

Product Highlights

This air handler is suited for free-return installation and is made from galvanized steel. It offers optimal performance in heating and cooling, especially when paired with compatible systems.

Product Information

Standard Information

• Brand: Goodman
• Model Number: ACST30LU1305

Technical Specifications

• Type: Air Handler
• Cooling BTU: 30000
• Electric Heat Capacity: 5.0 kW
• Voltage: 208/230 V
• Maximum Air Flow: 934 CFM
• Minimum Air Flow: 829 CFM
• Refrigerant Type: R-32
• Product Height: 11 Inches
• Product Width: 54.2 Inches
• Product Depth: 22.2 Inches
• Product Weight: 82 Pounds
