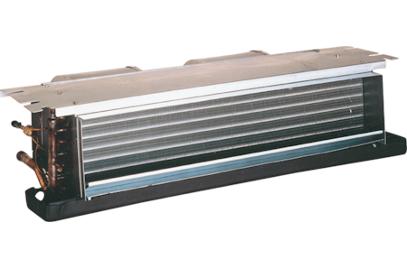

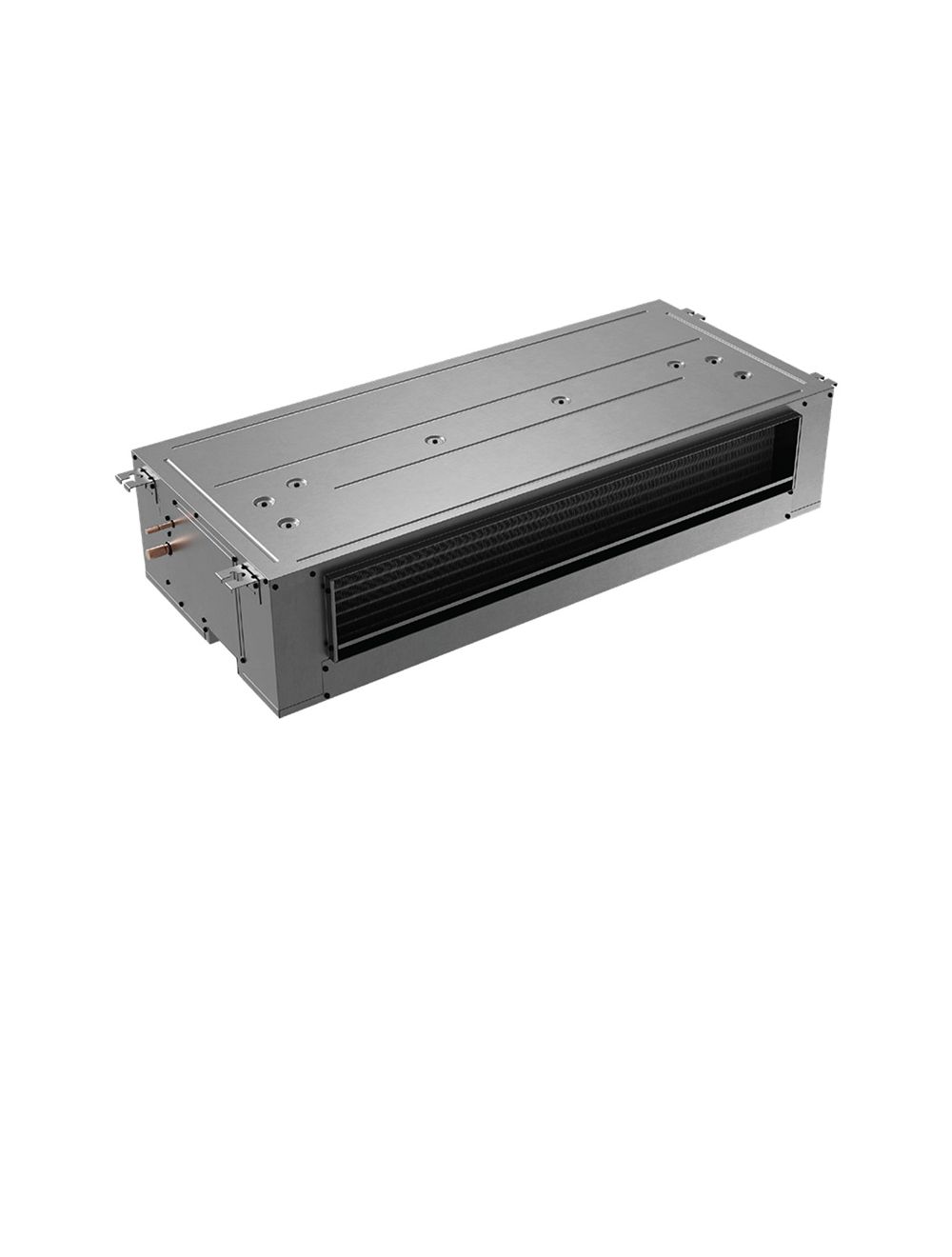

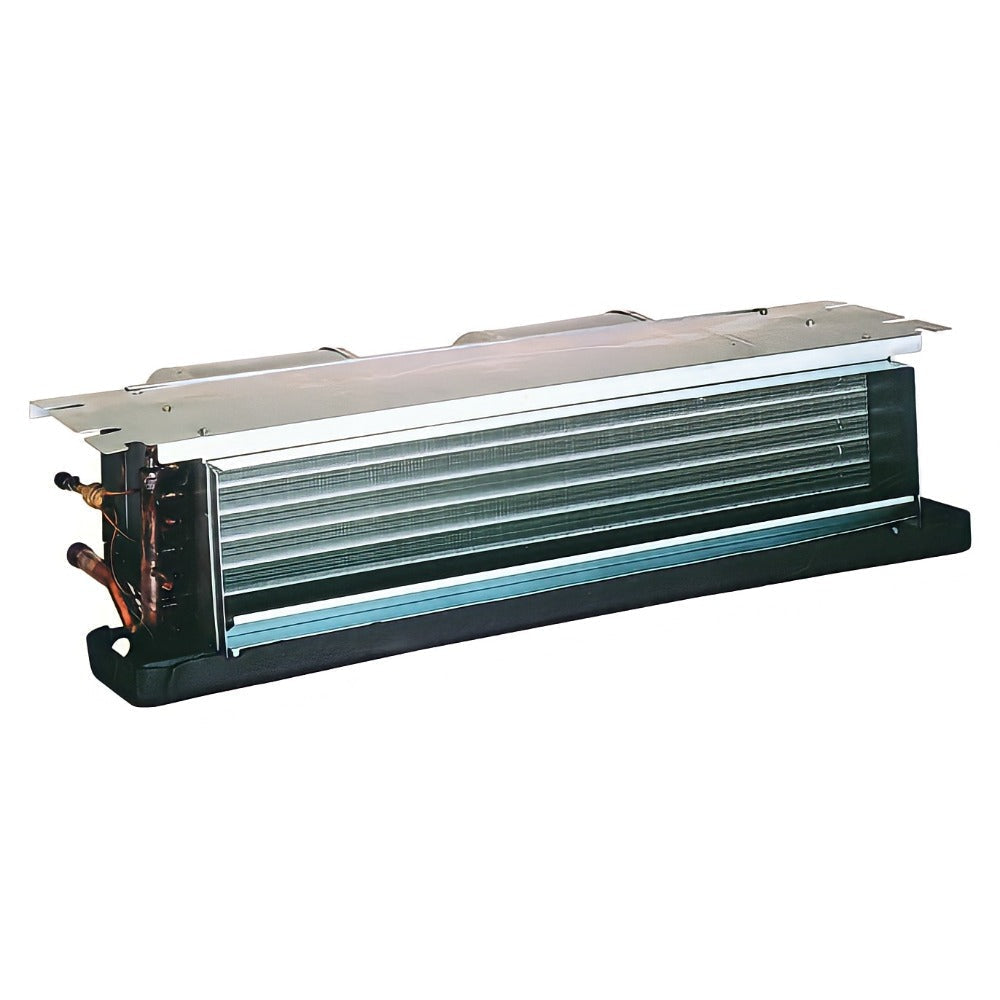

Goodman ACST24LU1310 Air Handler 2.0 Ton 10 kW

Product Description

The Goodman ACST24LU1310 air handler is designed to control the indoor environment of your home. This unit reduces humidity and enhances comfort throughout the space. It features an all-aluminum evaporator coil and an internal thermal expansion valve, working efficiently with a multi-speed ECM motor to circulate air.

• Constructed from galvanized steel for durability.
• Incorporates an all-aluminum coil to enhance heat transfer.
• Includes a factory-installed internal thermostatic expansion valve.

Product Highlights

This air handler operates effectively to manage air flow and humidity, ensuring your home remains comfortable year-round.

Product Information

Standard Information

• Type: Air Handler
• Refrigerant Type: R-32

Technical Specifications

• Capacity: 2.0 Tons
• Cooling BTU: 24000
• Electric Heat Capacity: 10.0 kW
• Maximum Air Flow: 934 CFM
• Minimum Air Flow: 829 CFM
• Voltage: 208/230 Volts
• Phase: 1
• Frequency: 60 Hz
• Weight: 97 lbs
• Dimensions: 54.2 inches width x 22.27 inches depth x 11 inches height
• Drain Outlet Diameter: 3/4 inch
• ETL Listed: Yes
• AHRI Certified: Yes
• ISO Certified: Yes
