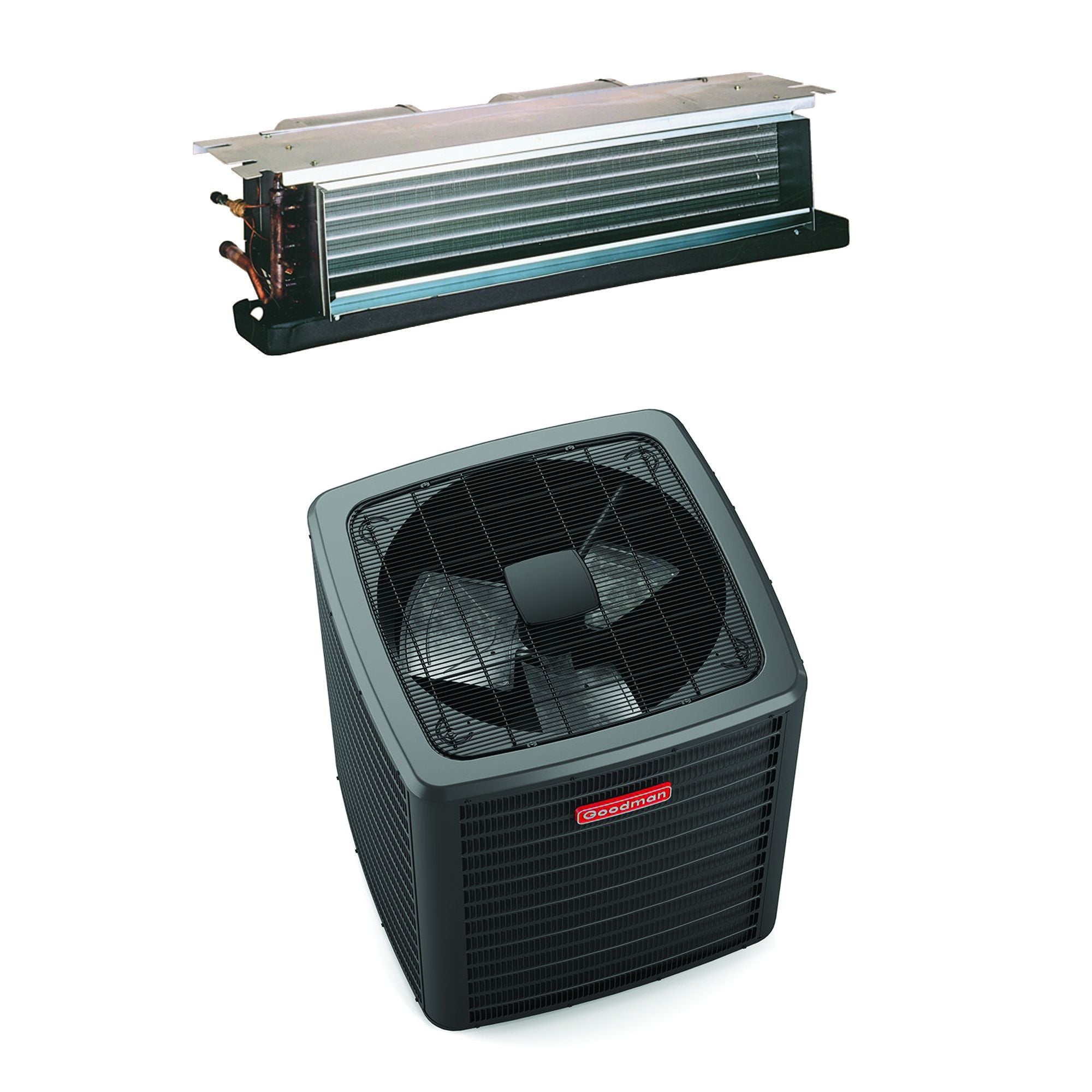

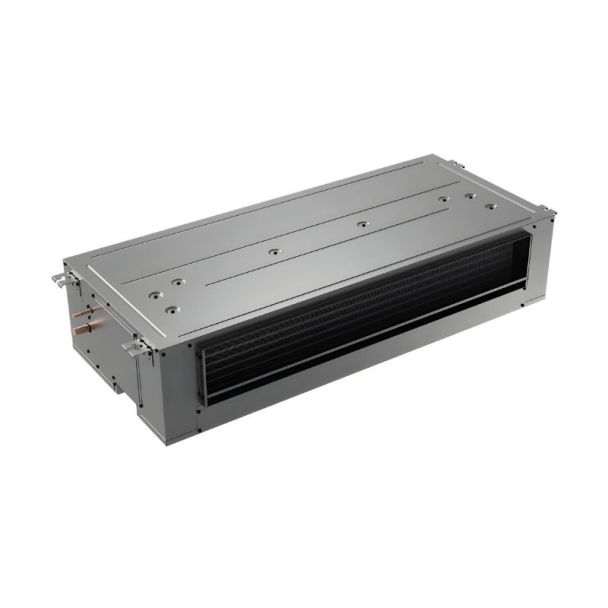

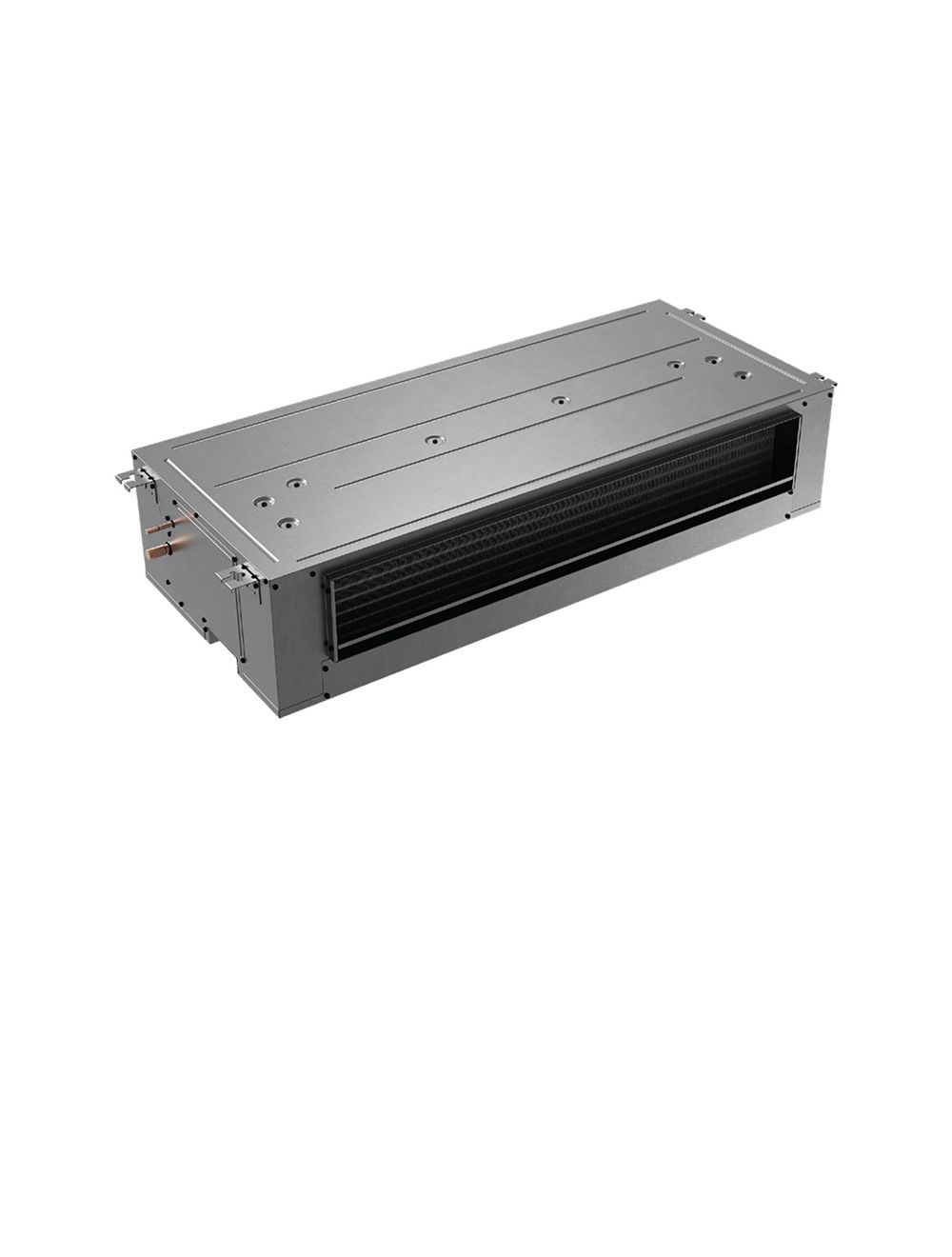

Goodman ACST24LU1308 Goodman ACST24LU1308 2 Ton Ceiling Mount Air Handler with 8kW Electric Heat

Product Description

The Goodman ACST24LU1308 is a two-ton ceiling-mounted air handler designed for optimal indoor climate control. It uses R-32 refrigerant and features an all-aluminum coil for efficiency. This unit has a multi-speed ECM blower motor for consistent air delivery and includes an eight-kilowatt electric heat kit with durable heating elements. The design includes a galvanized steel housing and a high-temperature plastic drain pan for reliable moisture management.

• Ceiling-mounted installation.
• Multi-speed ECM blower motor for efficient airflow.
• Includes an 8kW electric heat kit.

Product Highlights

This unit is suitable for various indoor environments and is designed for reliable operation in heating and cooling applications.

Product Information

Standard Information

• Brand: Goodman
• MPN: ACST24LU1308

Technical Specifications

• Type: Air Handler
• Product Line: ACST
• Tonnage: 2 Ton
• Capacity: 2.0 Tons
• Cooling BTU: 24000
• SEER: 14.3
• Refrigerant Type: R-32
• Blower Motor Type: ECM Multi-Speed
• Maximum Air Flow: 934 CFM
• Minimum Air Flow: 829 CFM
• Electric Heat Capacity: 8.0 kW
• Voltage: 208/230 Volts
• Minimum Circuit Ampacity: 38.6 Amps
• Recommended Breaker Size: 45 Amps
• Suction Connection Size: 3/4 Inch
• Liquid Connection Size: 3/8 Inch
• Drain Outlet Diameter: 3/4 Inch
• Width: 54.2 Inches
• Depth: 22.27 Inches
• Height: 11 Inches
• Product Weight: 82 Pounds
• AHRI Certified: Yes
• Parts Warranty: 10 Years
