GOODMAN ACST18MU1308 Goodman 1.5 Ton Ceiling Mount Air Handler ACST18MU1308

Product Description

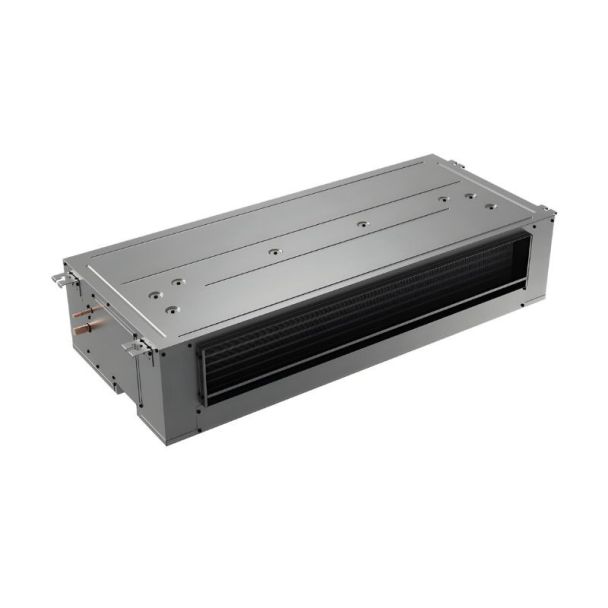

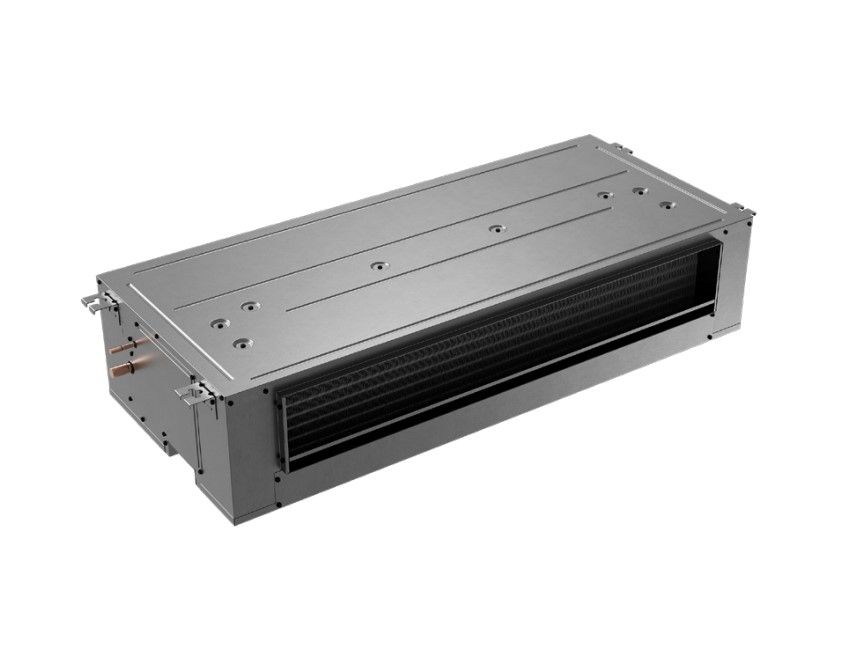

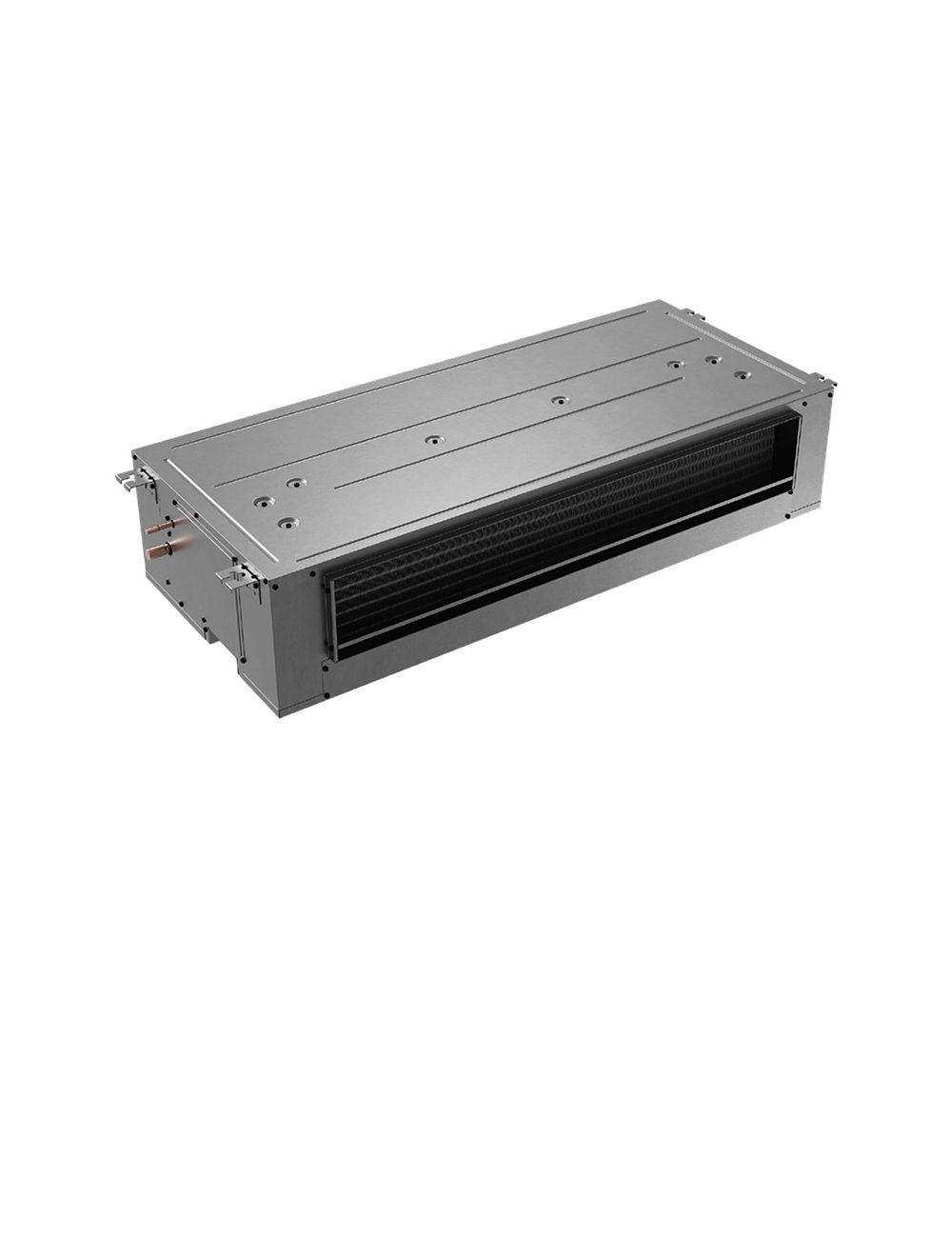

The Goodman ACST18MU1308 is a ceiling mount air handler designed for durability and efficiency. It uses R-32 refrigerant and features an all-aluminum coil with a robust galvanized-steel construction. The unit is equipped with a multi-speed ECM motor and includes rust-resistant heating elements.

• Factory-installed TXV for optimal performance
• Configurable front and bottom return options
• High-temperature plastic drain pan with multiple drain connections

Product Highlights

This Goodman air handler is suitable for indoor installation and provides flexible setup options with its configurable returns.

Product Information

Standard Information

• Brand: Goodman
• Model Number: ACST18MU1308

Technical Specifications

• Tonnage: 1.5 Ton
• Cooling BTU: 18000
• Refrigerant Type: R-32
• Electric Heat Capacity: 8.0 kW
• Maximum Air Flow: 831 CFM
• Input Voltage: 208/230 Volts
• Minimum Circuit Ampacity: 38.6 Amps
• Product Dimensions: 48-1/5 W x 22-1/5 D x 11 H
• Weight: 70 Pounds
• Shipping Weight: 85 Pounds
• ETL Listed: Yes
• AHRI Certified: Yes
• Parts Warranty: 10 Limited Years
