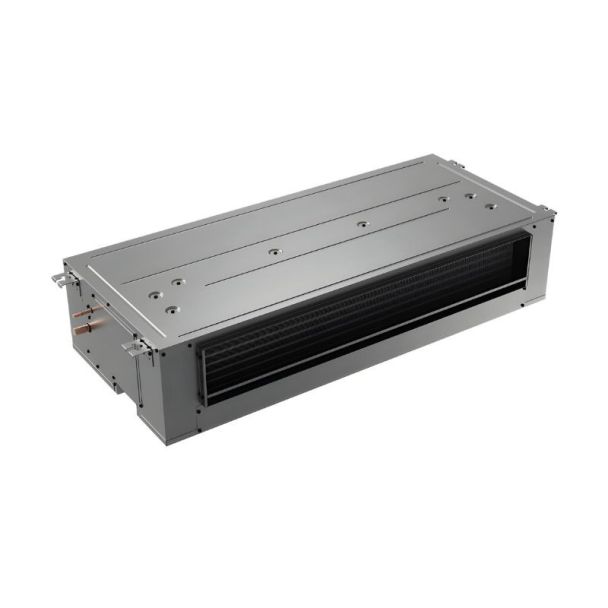

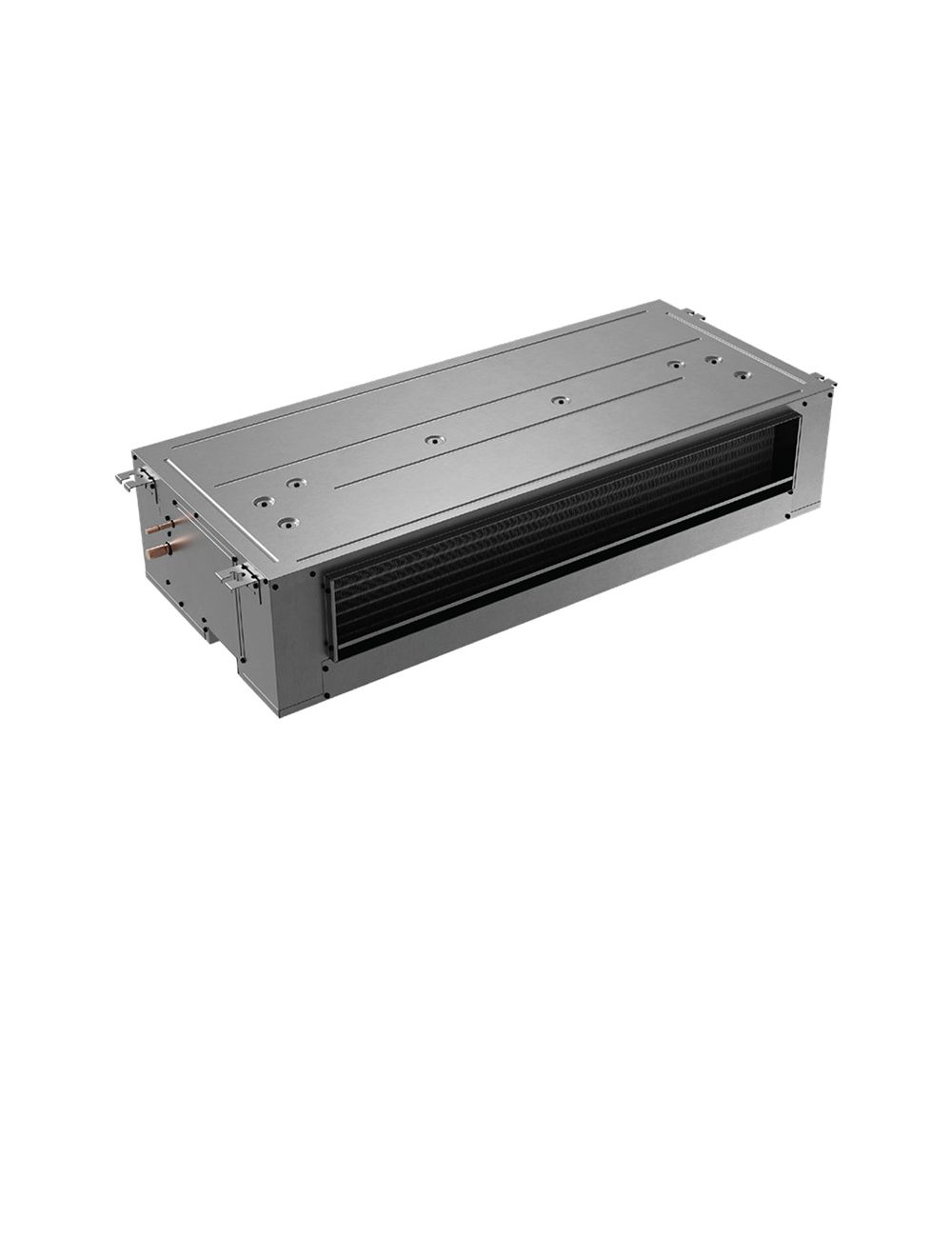

Goodman ACST18MU1305 1.5 Ton Ceiling Mount Air Handler with 5kW Electric Heat

Product Description

The Goodman ACST18MU1305 is a ceiling-mounted air handler suitable for R-32 refrigerant. This unit employs a multi-speed ECM motor and features an all-aluminum coil for improved air flow. It includes a factory-installed thermostatic expansion valve (TXV) and a durable nickel chromium heating element, ideal for indoor use.

• Designed for ceiling-mounted, space-efficient installation.
• Features a 5kW electric heat kit for reliable heating.
• Compatible with R-32 refrigerant for better environmental performance.

Product Highlights

This air handler is engineered to meet specific heating and cooling needs while providing versatility in installation.

Product Information

Standard Information

• Brand: Goodman
• MPN: ACST18MU1305

Technical Specifications

• Product Line: ACST
• Type: Air Handler
• Configuration: Ceiling Mounted
• Installation Location: Indoor
• Tonnage: 1.5 Ton
• Cooling BTU: 18000
• Refrigerant Type: R-32
• Electric Heat Capacity: 5.0 kW
• Maximum Air Flow: 831 CFM
• Voltage: 208/230 Volts
• Recommended Breaker Size: 30 Amps
• Weight: 70 Pounds
• Dimensions: 48-1/5 W x 22-1/5 D x 11 H
• AHRI Certified: Yes
• Parts Warranty: 10 Limited Years
